EZ 4824 (968999513) - Husqvarna 48" Zero-Turn Mower (2006-06) 48"/122CM CUTTING DECK 2 Parts Diagram

48" Zero-Turn Mower

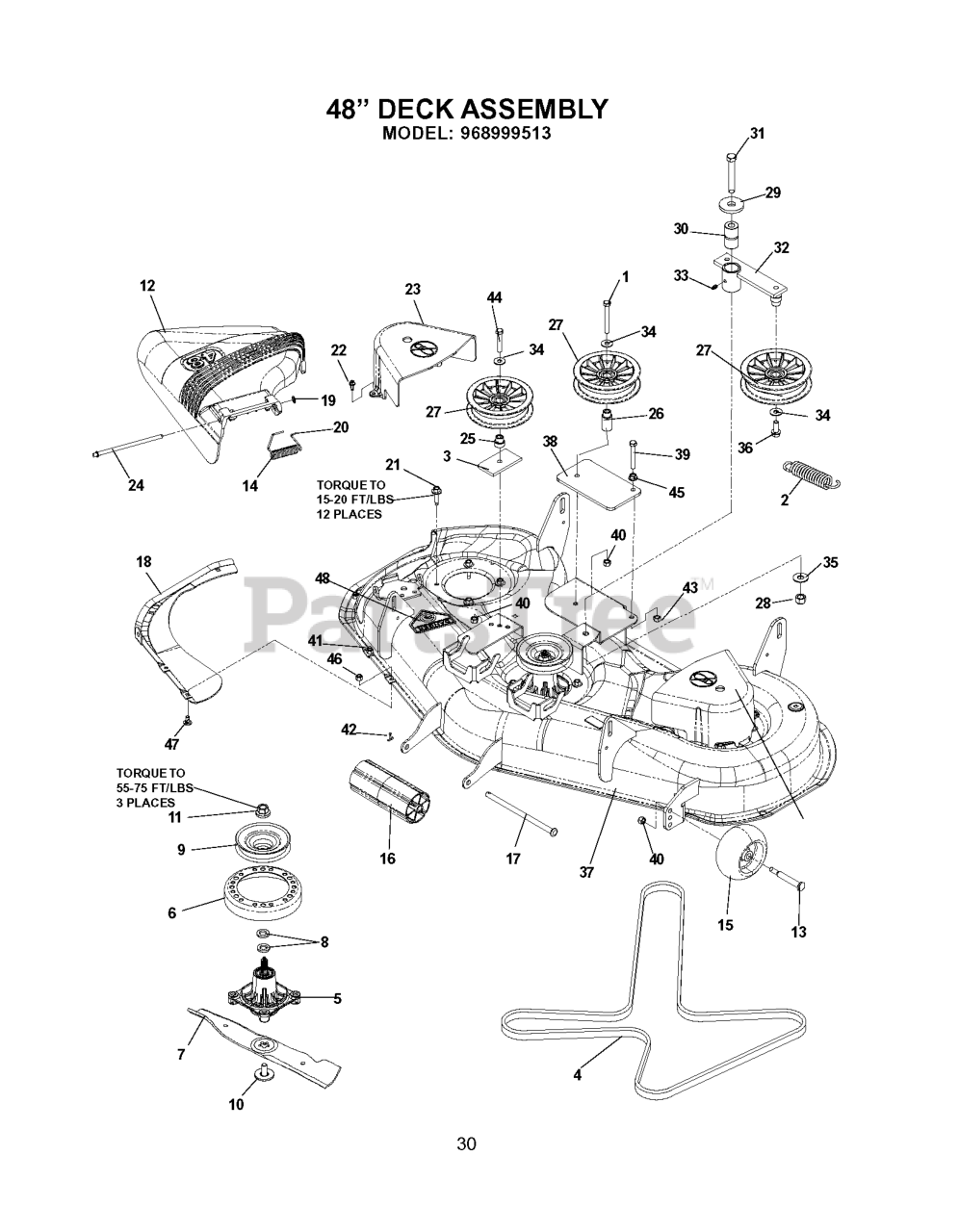

48"/122CM CUTTING DECK 2 Parts Diagram

  • Title
12

Husqvarna 539107604

DISCHARGE CHUTE
(Superseded to 532180655)

$45.99

$

In Stock, Qty 5

0

44

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

14

Husqvarna 539107609

TORSION SPRING

$5.99

$

In Stock, Qty 20+

0

3

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

6

Husqvarna 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 539110114

BELT SHIELD

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532180054

48" HI-LIFT BLADE

$22.99

$

In Stock, Qty 20+

0

18

Husqvarna 539107614

VORTEX MOWER BAFFLE
(Superseded to 532174378)

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532174356

MANDREL ASM
(Superseded to 587125201)

$56.99

$

In Stock, only 4 left!

0

20

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532174375

PULLEY.DRIVEN.DECK.48'

$39.99

$

In Stock, Qty 10

0

25

Husqvarna 539112076

IDLER BUSHING

$

$

Not available

10

Husqvarna 532174365

BOLT 7/16 ASM BLADE
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

30

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 2 left!

0

17

Husqvarna 539107613

NOSE ROLLER ROD
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

21

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

16

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 18

0

41

Husqvarna 539990206

SCREW 5/16C X 1 HEX CAP
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

45

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

36

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

Husqvarna 539200684

RIVERT, 3/16, STAVEX

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

8

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

13

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

1

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

47

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

22

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 19

0

40

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

32

$121.99

$

In Stock, only 2 left!

0

39

Husqvarna 539113194

HCS 3/8C X 2.5" GRADE 8

$3.99

$

Usually ships in 3-10 days

0

$12.99

$

In Stock, Qty 6

0

46

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539112330

DECK W/DECALS 48 WSL

$

$

Not available

31

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

15

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 18

0

35

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539106340

BELT, DECK

$133.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 539113191

SUPPORT PLATE, BLACK

$15.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539112169

IDLER BUSHING

$

$

Not available

34

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539112196

IDLER
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0
