EZ 4824 (966612901) - Husqvarna 48" Zero-Turn Mower (2011-10) FUEL SYSTEM Parts Diagram

48" Zero-Turn Mower

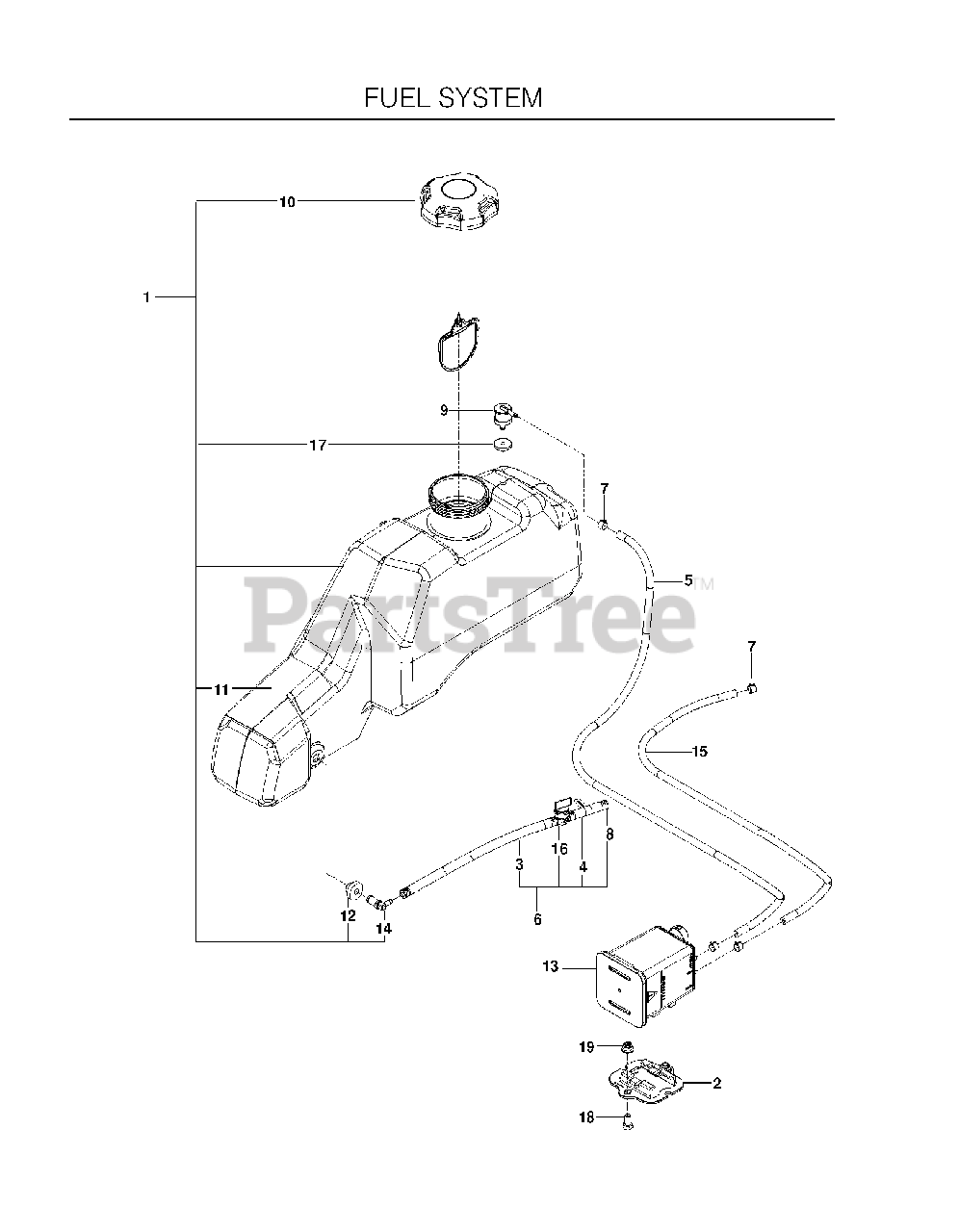

FUEL SYSTEM Parts Diagram

  • Title

1

Husqvarna 578180601

TANK.FUEL.ASSEMBLY.LARGE
(Superseded to 589924706)

$157.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575242701

BRACKET, CANISTER

$10.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539932956

GAS LINE 10"

$

$

Not available

4

Husqvarna 505215101

FUEL LINE 3"

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 576660601

HOSE, VAPOR 3/16 X 39"

$

$

Not available

6

Husqvarna 576660701

FUEL LINE ASSY

$27.99

$

Usually ships in 3-10 days

0

7

Husqvarna 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

8

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 17

0

10

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

11

Husqvarna 522559101

SHIELD, HEAT

$37.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 11

0

13

Husqvarna 532414114

CANNISTER, CARBON

$62.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539110432

STEM, FUEL TANK
(Superseded to 532139277)

$8.99

$

In Stock, only 1 left!

0

15

Husqvarna 574521305

HOSE, FUEL, 3/16" X 20"

$11.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

17

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 539108392

HCS 5/16-18 X 5/8 GR 5 ZD
(Superseded to 596031601)

$3.99

$

In Stock, Qty 8

0

19

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0
