EZ 4824 (966612901) - Husqvarna 48" Zero-Turn Mower (2011-10) FRAME Parts Diagram

48" Zero-Turn Mower

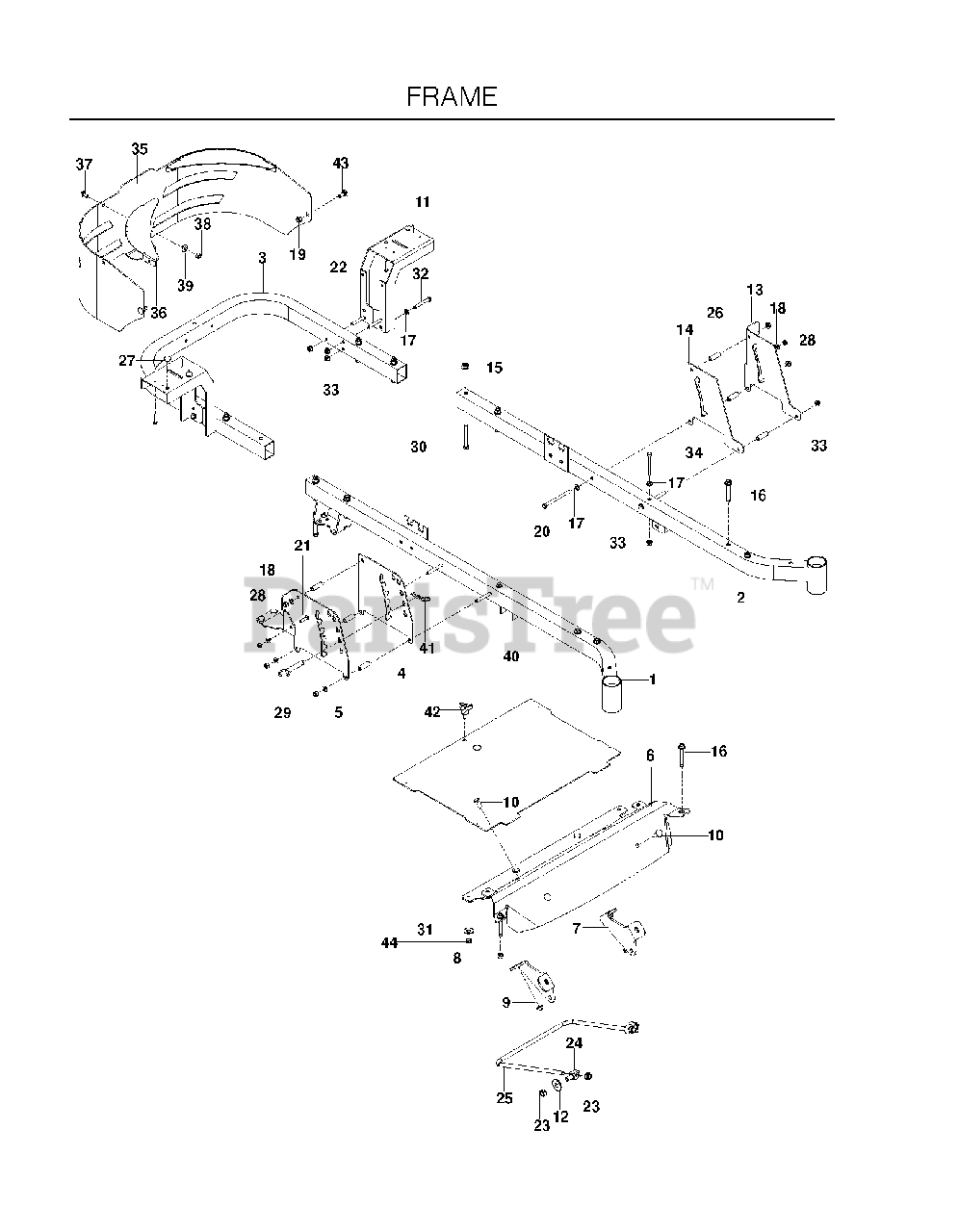

FRAME Parts Diagram

  • Title

1

Husqvarna 510177503

FRAME, RT, ORANGE
(Superseded to 589283402)

Note: RT

$91.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510177403

FRAME, LT, ORANGE
(Superseded to 589283302)

Note: LT

$91.99

$

Usually ships in 3-10 days

0

3

Husqvarna 516001803

FRAME TUBE, REAR, ORANGE

$169.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510245604

PLATE, DECK HEIGHT, BLK EZ

$72.99

$

Usually ships in 3-10 days

0

5

Husqvarna 510240502

PLATE, DECK HEIGHT, BLACK

$21.99

$

Usually ships in 3-10 days

0

6

Husqvarna 522719502

FOOT REST WIDE ORG

$132.99

$

Usually ships in 3-10 days

0

7

Husqvarna 522443302

MOUNT, STRUT, RT, BLK

Note: RT

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 522443304

MOUNT, STRUT, LT, BLK

Note: LT

$398.99

$

Usually ships in 3-10 days

0

9

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

10

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

11

Husqvarna 510225902

SUPPORT, FENDER, BLACK

$78.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

13

Husqvarna 510261802

PLATE, OUTER BRAKE, BLACK

$60.99

$

Usually ships in 3-10 days

0

14

Husqvarna 510206703

PLATE, BRAKE LATCH, BLACK

$48.99

$

Usually ships in 3-10 days

0

15

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

16

Husqvarna 539111976

ENGINE BOLT, SPECIAL

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 18

0

18

Husqvarna 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

19

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539977761

HCS 1/4C X 1

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539110674

SCR #10-12X1-1/2HEX WASH HD ZD

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD

$

$

Not available

24

Husqvarna 522924201

SWIVEL

$9.99

$

Usually ships in 3-10 days

0

25

Husqvarna 521938101

LINK, FRONT SUSP.

$

$

Not available

26

Husqvarna 515988101

SPACER, .334 ID X .5 OD X 1.5
(Superseded to 580486101)

$

$

Not available

27

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

28

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

29

Husqvarna 539102526

HITCH PIN

$21.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 11

0

31

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

34

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

35

Husqvarna 516016302

GUARD, REAR, ORANGE

$

$

Not available

36

Husqvarna 516016402

SUPPORT, CORNER, ORANGE

$

$

Not available

37

Husqvarna 539111786

RHSSNB, 1/4-20X5/8

$2.49

$

Usually ships in 3-10 days

0

38

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

39

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

40

Husqvarna 522842901

PLATE, FOOT W/DECALS EZ

$

$

Not available

41

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0
