EZ 4824 (966612901) - Husqvarna 48" Zero-Turn Mower (2011-10) BRAKE / REAR MOWER LIFT Parts Diagram

48" Zero-Turn Mower

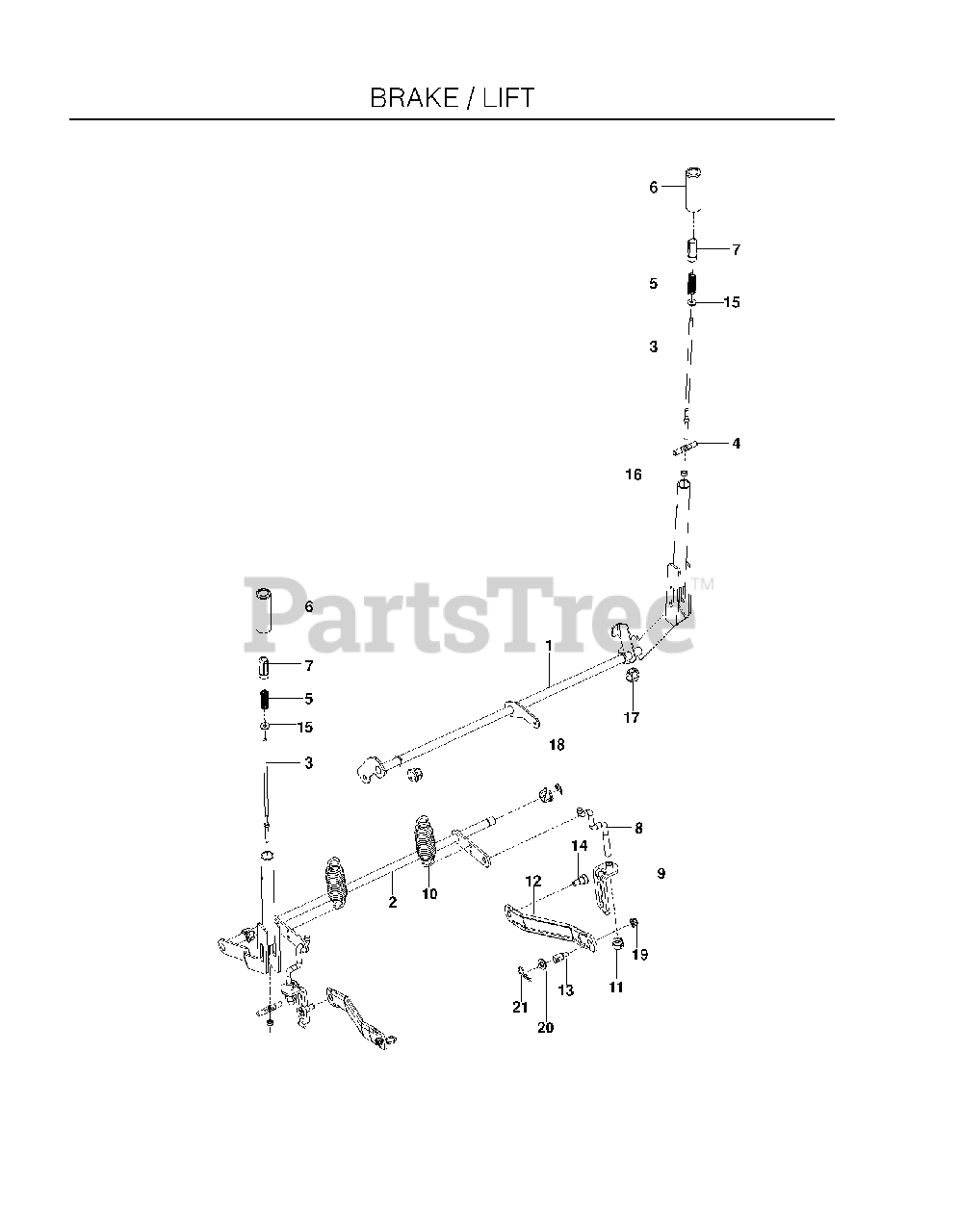

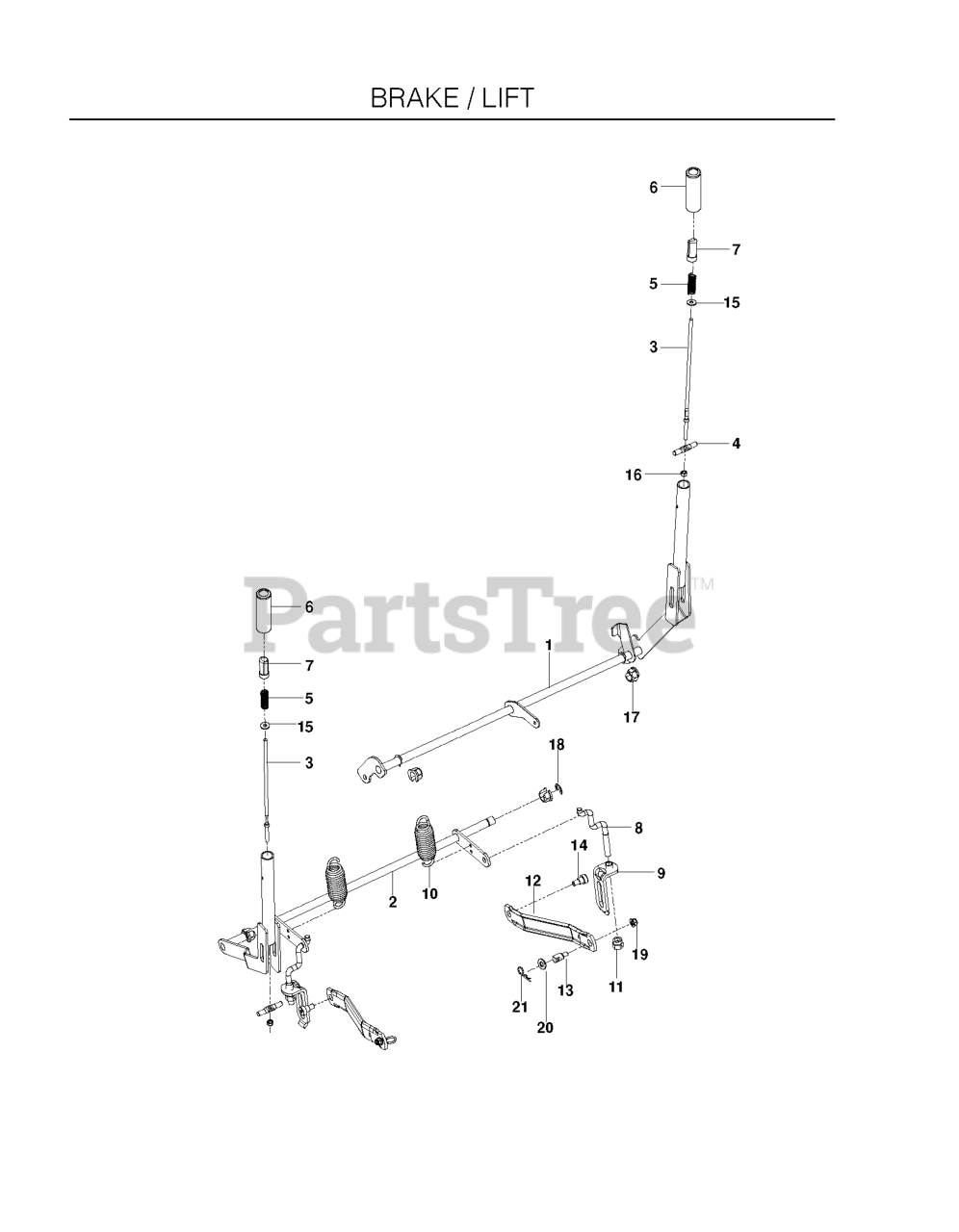

BRAKE / REAR MOWER LIFT Parts Diagram

  • Title

1

Husqvarna 522710802

SHAFT.ASSY.BRAKE.WLDMT.BLACK

$241.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574216602

SHAFT, LIFT, BLACK

$

$

Not available

3

Husqvarna 510422901

ROD, HANDLE RELEASE

$

$

Not available

4

Husqvarna 516008801

RB ROD, LATCH RELEASE
(Superseded to 583629301)

$6.49

$

In Stock, only 1 left!

0

5

Husqvarna 510030701

SPRING, COMPRESSION

$

$

Not available

6

Husqvarna 510207201

GRIP, HANDLE, BLACK 4"

$6.99

$

In Stock, only 4 left!

0

7

Husqvarna 510207301

BUTTON, PUSH, BLACK

$5.99

$

In Stock, only 1 left!

0

8

Husqvarna 525847201

LINK, REAR SUSPENSION
(Superseded to 587623001)

$12.99

$

In Stock, only 3 left!

0

9

Husqvarna 522858601

ASSEMBLY, BRKT LINK
(Superseded to 587623001)

$12.99

$

In Stock, only 3 left!

0

10

Husqvarna 539118762

SPRING

$

$

Not available

11

Husqvarna 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$4.99

$

In Stock, Qty 5

0

12

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

13

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

14

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

16

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

17

Husqvarna 510184901

PLASTIC NUT

$6.49

$

In Stock, only 3 left!

0

18

Husqvarna 539105069

E-RING 5/8

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Husqvarna 539976982

WASHER 5/8 FLAT

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0
