EZ 4824 (966612901-01) - Husqvarna 48" Zero-Turn Mower (2011-10) BRAKE / REAR MOWER LIFT Parts Diagram

48" Zero-Turn Mower

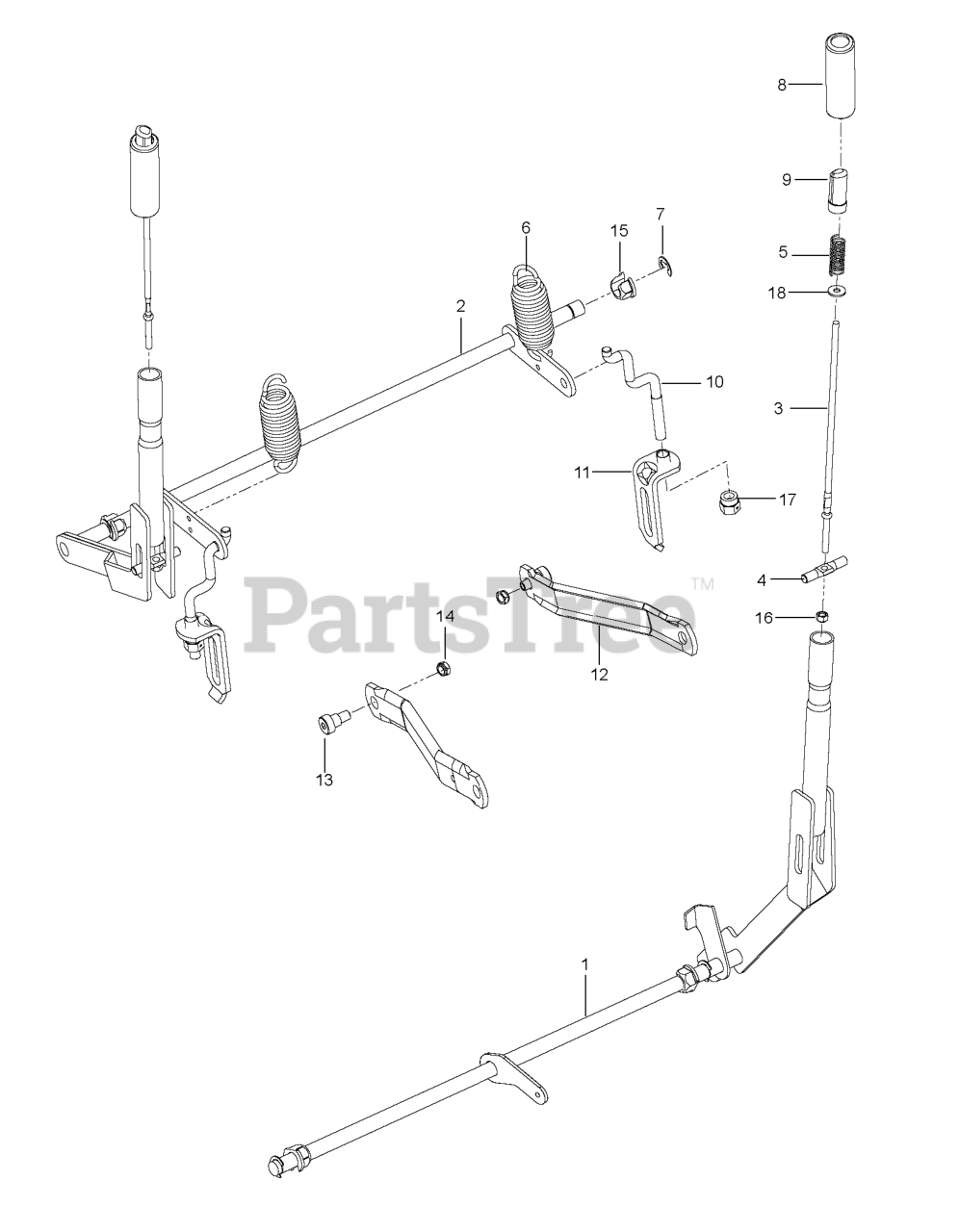

BRAKE / REAR MOWER LIFT Parts Diagram

  • Title

13

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 510030701

SPRING, COMPRESSION

$

$

Not available

6

Husqvarna 539118762

SPRING

$

$

Not available

15

Husqvarna 510184901

PLASTIC NUT

$6.49

$

In Stock, only 3 left!

0

17

Husqvarna 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$4.99

$

In Stock, Qty 5

0

8

Husqvarna 510207201

GRIP, HANDLE, BLACK 4"

$6.99

$

In Stock, only 4 left!

0

11

Husqvarna 522858601

ASSEMBLY, BRKT LINK
(Superseded to 587623001)

$12.99

$

In Stock, only 3 left!

0

9

Husqvarna 510207301

BUTTON, PUSH, BLACK

$5.99

$

In Stock, only 1 left!

0

4

Husqvarna 516008801

RB ROD, LATCH RELEASE
(Superseded to 583629301)

$6.49

$

In Stock, only 1 left!

0

2

Husqvarna 586760202

DECK.LIFT.PNT.WELDMENT.RZ.BLK
(Superseded to 586760203)

Note: LIFT

$45.99

$

In Stock, only 2 left!

0

12

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

18

Husqvarna 819091216

WASHER PM

$

$

Not available

1

Husqvarna 580435801

SUBASM.SHAFT.BRAKE.WLDMNT.MED

$120.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510422901

ROD, HANDLE RELEASE

$

$

Not available

14

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

10

Husqvarna 525847201

LINK, REAR SUSPENSION
(Superseded to 587623001)

$12.99

$

In Stock, only 3 left!

0

16

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

7

Husqvarna 539105069

E-RING 5/8

$3.99

$

Usually ships in 3-10 days

0
