EZ 4624 (968999688) - Husqvarna 46" Zero-Turn Mower (2008-08) WHEELS & TIRES Parts Diagram

46" Zero-Turn Mower

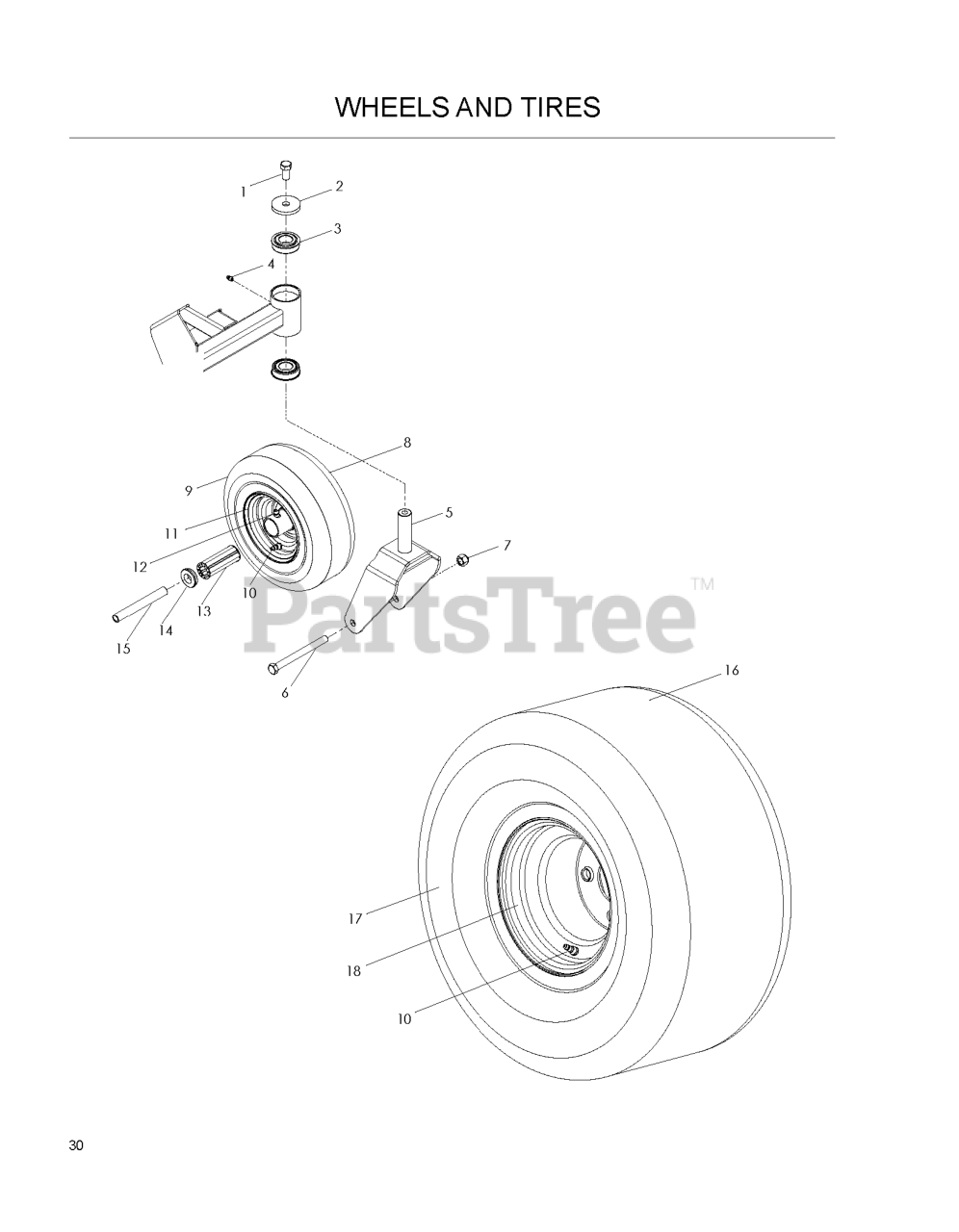

WHEELS & TIRES Parts Diagram

  • Title

17

Husqvarna 539131109

TIRE 20 X 8, TURF

Note: "REAR, MODEL EZ4624 AFTER SEIAL NO. 0850XXXXX"

$

$

Not available

18

Husqvarna 539112214

RIM.8X7.SILVER.ZTR

Note: MODEL EZ4220

$78.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539131110

TIRE ASM, 20 X 8-8

Note: "REAR, MODEL EZ4624 AFTER SERIAL NO .0805XXXXX"

$182.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539112213

TIRE, 18 X 8.5, TURF RIDER

Note: MODEL EZ4220

$133.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539112217

RIM.8X7.W/8".OFFSET.SILVER.ZTR

$96.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 539105307

ROLLER BEARING-CAGED 3 1/4'

$11.99

$

In Stock, only 2 left!

0

16

Husqvarna 539131996

TIRE ASM, 20X10-.8 NEG SILVER

Note: "REAR, MODEL EZ4824 AFTER SERIAL NO. 0749XXXXX"

$

$

Not available

11

Husqvarna 539106994

RIM

$

$

Not available

10

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

17

Husqvarna 539131997

TIRE, 20 X 10-8

Note: "REAR, MODEL EZ4824 AFTER SERIAL NO. 0749XXXXX"

$157.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539106995

TIRE - CASTER
(Superseded to 539114697)

$

$

Not available

4

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539130820

TIRE/WHEEL ASM 18X9.5-8
(Superseded to 579753401)

Note: REAR

$265.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539106993

TIRE/WHEEL.CASTER

$121.99

$

In Stock, only 2 left!

0

14

Husqvarna 539102484

BEARING RETAINER

$5.99

$

In Stock, only 1 left!

0

2

Husqvarna 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 10

0

15

Husqvarna 539105543

SPACER

$10.99

$

In Stock, only 2 left!

0

16

Husqvarna 539112212

TIRE ASM 18 X 8.5-8
(Superseded to 581197601)

Note: "REAR, MODEL EZ4220"

$

$

Not available

3

Husqvarna 539112660

BEARING FLANGED

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539113444

CASTER YOKE - PAINTED

$

$

Not available

6

Husqvarna 539101907

HCS 1/2C X 5 1/2

$11.99

$

In Stock, Qty 10

0

1

Husqvarna 539990646

HHCS 1/2-13 X 1

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

17

Husqvarna 539130822

TIRE, 18 X 9.5 - 8

$182.99

$

Usually ships in 3-10 days

0
