EZ 4220 BF (968999693) - Husqvarna 42" Zero-Turn Mower (2008-08) Steering Parts Diagram

42" Zero-Turn Mower

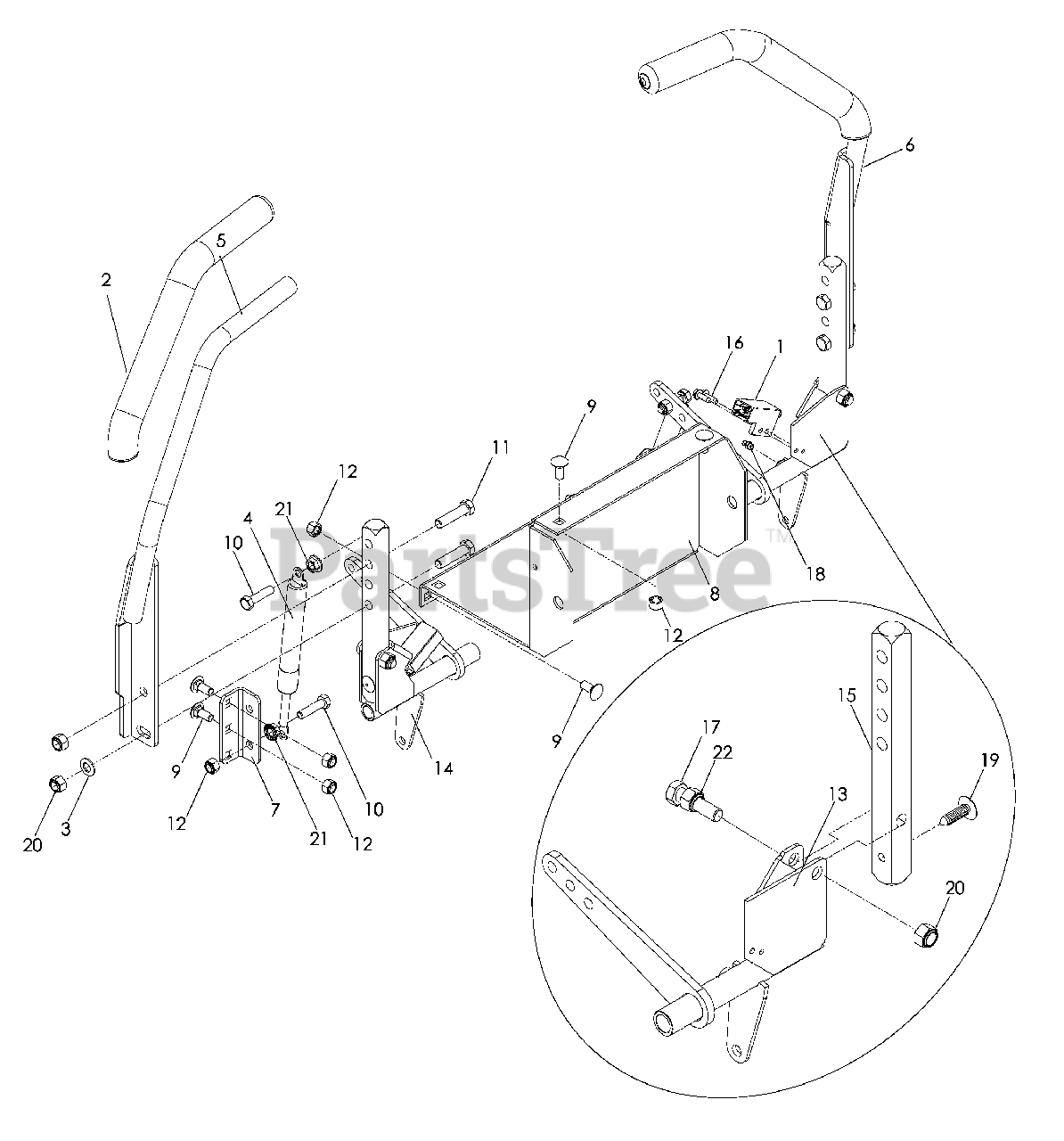

Steering Parts Diagram

  • Title

1

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539102592

CUSHION, DRIVE LEVER

$

$

Not available

3

Husqvarna 539102593

LOCKWASHER 3/8

$3.99

$

In Stock, only 4 left!

0

4

Husqvarna 539102720

DAMPENER

$66.99

$

In Stock, only 3 left!

0

5

Husqvarna 539110826

DRIVE LEVER, RIGHT

$60.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539110827

DRIVE LEVER, LEFT

$60.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539112300

DAMPENER BRACKET

$40.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112408

BATTERY TRAY

$33.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539990627

HCS 5/16-18 x 1¼

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 539990655

HCS 3/8-16 x 1½

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539112096

CONTROL, LEFT

$728.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539112095

CONTROL, RIGHT

$607.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539112088

CONTROL ARM

$

$

Not available

16

Husqvarna 539991034

SCREW 10-24 x 5/8 WASH HD

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539110122

HCS 3/8-16 x 2½ TPBLT

$3.99

$

In Stock, only 1 left!

0

18

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 539113107

RIVET, NYLON PUSH-IN

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539990585

NUT 5/16-18 WHIZLK

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990546

NUT 3/8-16 CENTERLOCK

$

$

Not available
