EZ 4220 BF (968999693) - Husqvarna 42" Zero-Turn Mower (2008-08) Hydraulic Pump - Motor Parts Diagram

42" Zero-Turn Mower

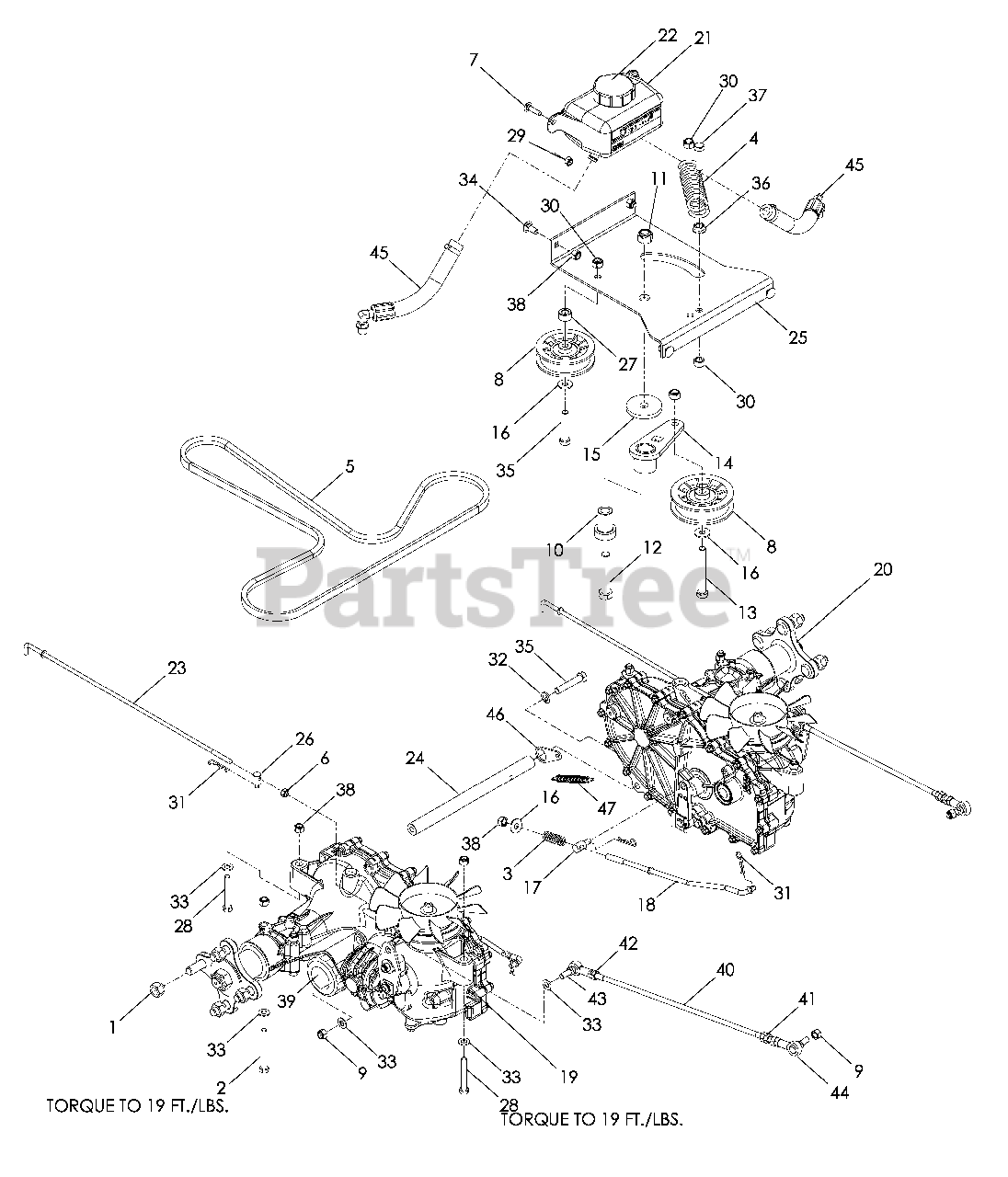

Hydraulic Pump - Motor Parts Diagram

  • Title

1

Husqvarna 539101173

NUT ½-20 LUG

$

$

Not available

2

Husqvarna 539101721

HCS 5/16-18 x 2¾

$4.99

$

In Stock, Qty 7

0

3

Husqvarna 539101224

SPRING

$22.99

$

In Stock, only 1 left!

0

4

Husqvarna 539103256

SPRING, EXTENSION

$12.99

$

In Stock, Qty 5

0

5

Husqvarna 539104334

BELT, PUMP
(Superseded to 510201501)

$46.99

$

In Stock, Qty 7

0

6

Husqvarna 539108739

NUT ¼-28

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539109800

RHSNB ¼-20 x 1
(Superseded to 592807801)

$4.99

$

In Stock, only 3 left!

0

8

Husqvarna 539110311

PULLEY, IDLER

$17.99

$

In Stock, Qty 20+

0

9

Husqvarna 539110943

NUT 5/16 NYLOC

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539101231

SPINDLE, IDLER

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539101331

NUT ½-13 NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 539101332

HCS ½-13 ¼ x 2¾

$5.99

$

In Stock, only 3 left!

0

13

Husqvarna 539101350

HCS 3/8-16 x 3 TAP

$6.49

$

In Stock, only 2 left!

0

14

Husqvarna 539112092

ARM, IDLER
(Superseded to 583593901)

$13.99

$

In Stock, only 3 left!

0

15

Husqvarna 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 10

0

16

Husqvarna 539990692

WASHER 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539112308

BRAKE SWIVEL

$10.99

$

In Stock, only 1 left!

0

18

Husqvarna 539112309

BRAKE LINKAGE

$84.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539112316

ZT2800, RIGHT

$

$

Not available

20

Husqvarna 539112317

ZT2800, LEFT

$1214.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539112318

EXPANSION TANK W/CAP

$80.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539112449

CAP

$

$

Not available

23

Husqvarna 539112319

BYPASS LINKAGE

$21.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539112342

2800 CROSS SUPPORT

$

$

Not available

25

Husqvarna 539112407

PULLEY, IDLER PLATE

$

$

Not available

26

Husqvarna 539112949

SWIVEL, ¼-28

$8.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539923515

SPACER

$5.99

$

In Stock, only 1 left!

0

28

Husqvarna 539976938

HCS 5/16-18 x 2¼

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 539976978

NUT ¼-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

30

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539976988

PIN, HAIR, .073 x 17/16

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990118

WASHER 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

33

Husqvarna 539990188

WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

34

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 10

0

36

Husqvarna 539990613

NUT 3/8-16 WHIZLK

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990655

HCS 3/8-16 x 1½

$4.99

$

In Stock, only 2 left!

0

38

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539113466

OIL FILTER

$60.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539112099

DRIVE LINKAGE

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990223

NUT 5/16-24

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539991073

NUT 5/16-24, LH

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539110604

ROD END, LEFT

$24.99

$

In Stock, only 1 left!

0

44

Husqvarna 539110603

ROD END, RIGHT

$40.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539112669

HOSE KIT

$

$

Not available

46

Husqvarna 539130516

TAB, SPRING

$

$

Not available

47

Husqvarna 539977250

SPRING

$

$

Not available
