EZ 4220 BF (968999693) - Husqvarna 42" Zero-Turn Mower (2008-08) Chassis / Frame Parts Diagram

42" Zero-Turn Mower

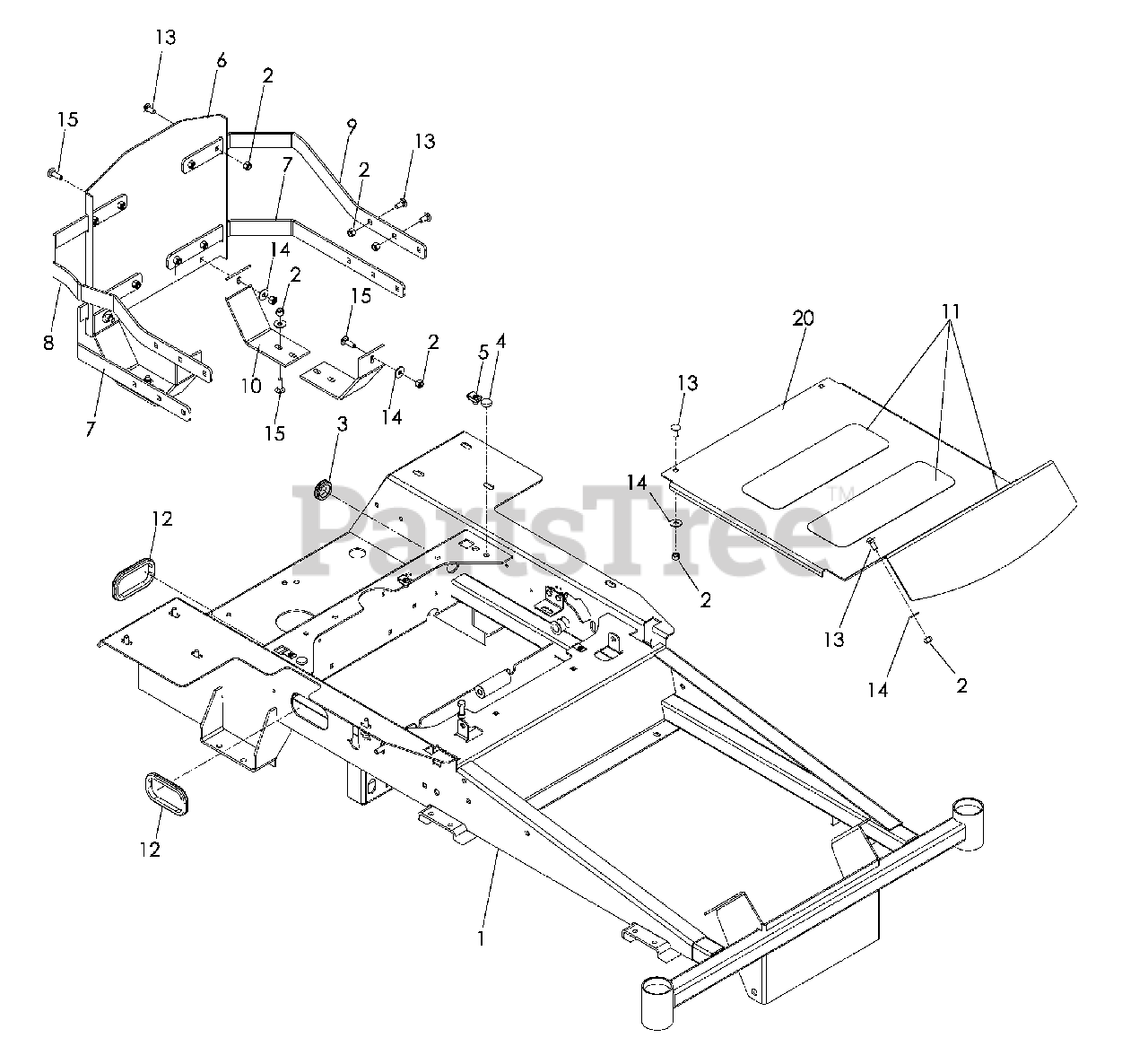

Chassis / Frame Parts Diagram

  • Title

1

Husqvarna 539112798

FRAME W/DECALS All Models Before Serial No. 0749Xxxxx

$944.99

$

Usually ships in 3-10 days

0

Husqvarna 965885601

FRAME W/DECALS Models EZ4625 and EZ4824 After Serial No. 0749Xxxxx

$

$

Not available

2

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

4

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

5

Husqvarna 539104763

NUT 5/16-18 RETAINER-U

$6.49

$

In Stock, Qty 12

0

6

Husqvarna 539106959

ENGINE GUARD

$48.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539112780

LOWER GUARD

$46.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112781

UPPER RT HAND GUARD

$72.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539112782

UPPER LT HAND GUARD

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539112783

SKID PLATE

$18.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539977778

PAD, ABRASIVE

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539107116

GROMMET

$

$

Not available

13

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990692

WASHER 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539990208

RHSNB 5/16-18 x 1

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539112228

PAN, FLOOR

$132.99

$

Usually ships in 3-10 days

0
