EZ 24 T (966659702-00) - Husqvarna 48" Zero-Turn Mower (2011-10) FRAME Parts Diagram

48" Zero-Turn Mower

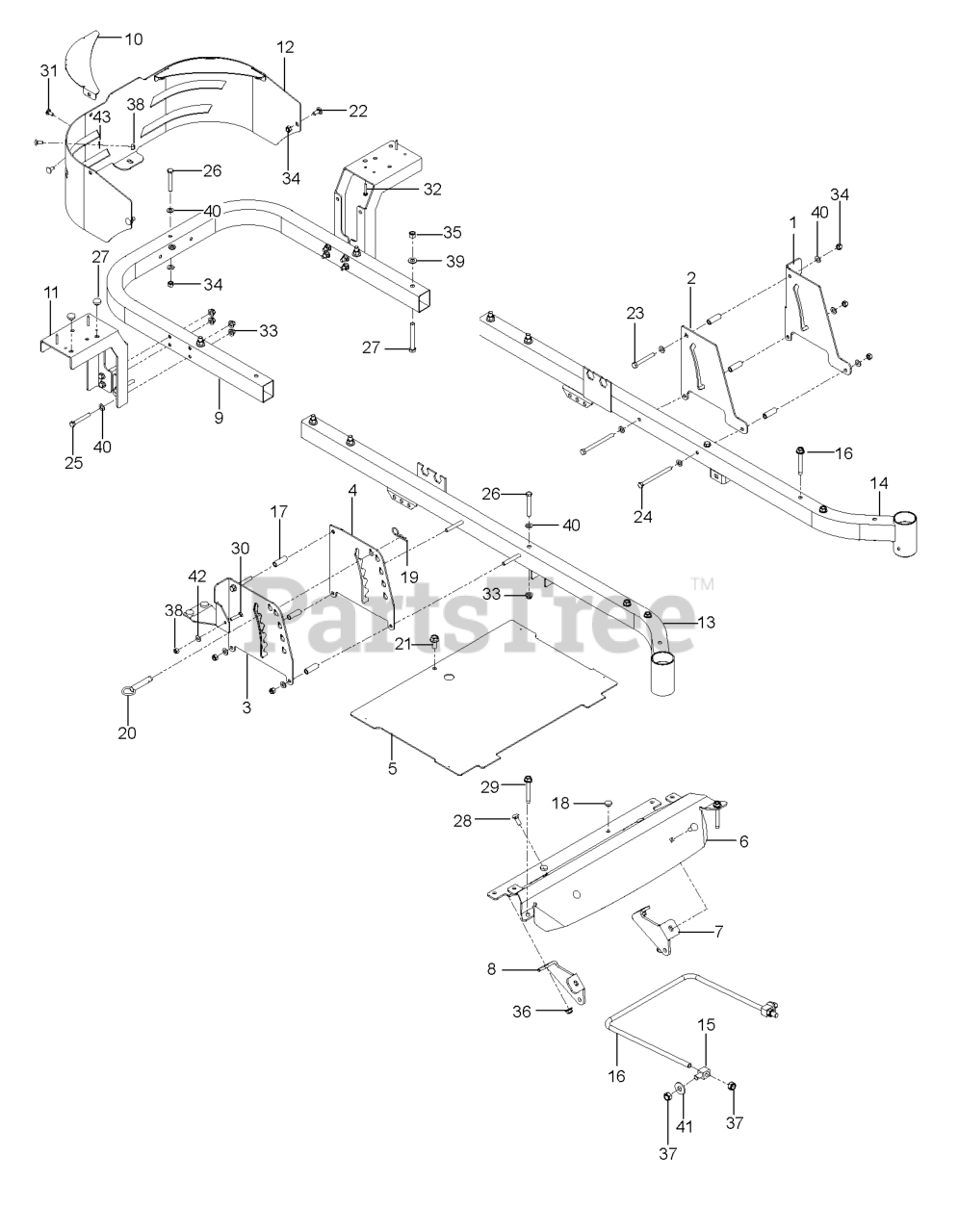

FRAME Parts Diagram

  • Title

31

Husqvarna 872110405

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 516016402

SUPPORT, CORNER, ORANGE

$

$

Not available

29

Husqvarna 817490642

$

$

Currently unavailable

41

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

5

Husqvarna 522842901

PLATE, FOOT W/DECALS EZ

$

$

Not available

23

Husqvarna 874780540

HCS 5/16-18 X 2-1/2 GR 5 ZD

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 874780544

BOLT HEX

$

$

Not available

17

Husqvarna 515988101

SPACER, .334 ID X .5 OD X 1.5
(Superseded to 580486101)

$

$

Not available

33

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

12

Husqvarna 516016302

GUARD, REAR, ORANGE

$

$

Not available

28

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

39

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 516001803

FRAME TUBE, REAR, ORANGE

$169.99

$

Usually ships in 3-10 days

0

6

Husqvarna 522719502

FOOT REST WIDE ORG

$132.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510245604

PLATE, DECK HEIGHT, BLK EZ

$72.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

27

Husqvarna 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5

$

$

Not available

18

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

11

Husqvarna 510225902

SUPPORT, FENDER, BLACK

$78.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 510177403

FRAME, LT, ORANGE
(Superseded to 589283302)

Note: LT

$91.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510206703

PLATE, BRAKE LATCH, BLACK

$48.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 539110674

SCR #10-12X1-1/2HEX WASH HD ZD

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

20

Husqvarna 539102526

HITCH PIN

$21.99

$

Usually ships in 3-10 days

0

36

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

7

Husqvarna 522443302

MOUNT, STRUT, RT, BLK

Note: RT

$34.99

$

Usually ships in 3-10 days

0

13

Husqvarna 510177503

FRAME, RT, ORANGE
(Superseded to 589283402)

Note: RT

$91.99

$

Usually ships in 3-10 days

0

1

Husqvarna 510261802

PLATE, OUTER BRAKE, BLACK

$60.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

22

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD

$

$

Not available

42

Husqvarna 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

8

Husqvarna 522443304

MOUNT, STRUT, LT, BLK

Note: LT

$398.99

$

Usually ships in 3-10 days

0

16

Husqvarna 521938101

LINK, FRONT SUSP.

$

$

Not available

25

Husqvarna 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4

$

$

Not available

15

Husqvarna 522924201

SWIVEL

$9.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510240502

PLATE, DECK HEIGHT, BLACK

$21.99

$

Usually ships in 3-10 days

0
