EZ 24 T (966659701) - Husqvarna 48" Zero-Turn Mower (2010-12) ENGINE PLATE Parts Diagram

48" Zero-Turn Mower

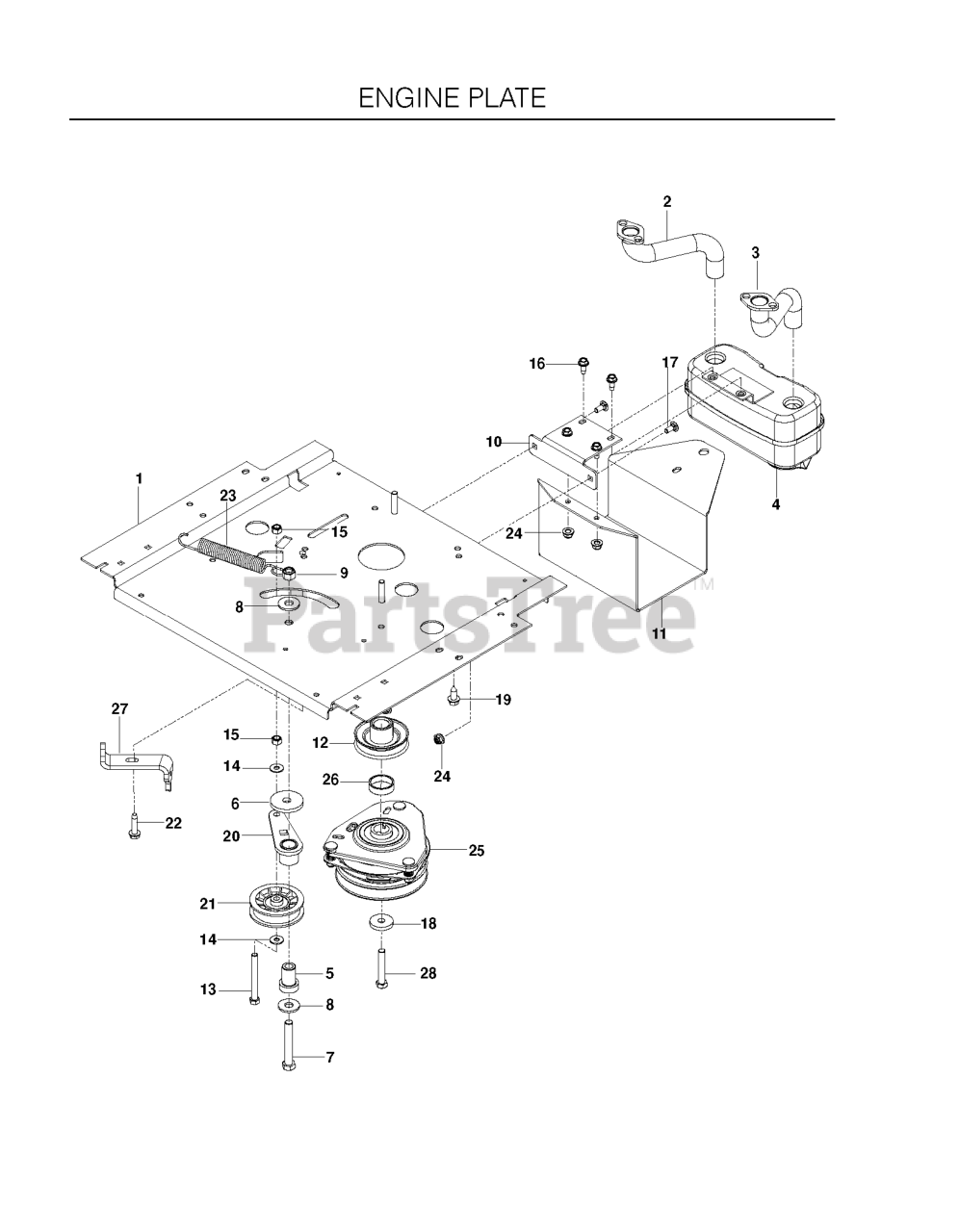

ENGINE PLATE Parts Diagram

  • Title
10

Husqvarna 510260402

BRACKET, MUFFLER, BLACK
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

6

Husqvarna 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 10

0

21

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$17.99

$

In Stock, Qty 20+

0

12

Husqvarna 539114530

PULLEY, ENGINE
(Superseded to 587537401)

$26.99

$

In Stock, only 3 left!

0

17

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532400008

CLUTCH.ELECTRIC.LT.48"*
(Superseded to 532414336)

$399.99

$

In Stock, only 1 left!

0

26

Husqvarna 577094601

SPACER, HUB PULLEY

$7.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 7

0

19

Husqvarna 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 17

0

2

Husqvarna 532159955

RP.EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

16

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

9

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 539109389

HCS 3/8-16X3 1/2 GR5

$5.99

$

In Stock, only 3 left!

0

28

Husqvarna 576968001

HCS 7/16-20 X 2.5 GR8

$4.99

$

In Stock, only 1 left!

0

22

Husqvarna 539110025

BOLT 3/8-16 X 1 1/2 ZINC CLEAR

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 522459710

CLUTCH STOP BLK

$37.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

4

Husqvarna 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 4 left!

0

18

Husqvarna 539110064

CLUTCH, WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

1

Husqvarna 574734402

PLATE, ENGINE WIDE, BLACK

$

$

Not available

Husqvarna 532198316

PIGTAIL.MATNLK.OLD.HARN

Note: NOT SHOWN

$10.99

$

In Stock, only 1 left!

0

24

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Husqvarna 539112092

RP.IDLER ARM WELDMENT
(Superseded to 583593901)

$13.99

$

In Stock, only 3 left!

0

11

Husqvarna 510260502

GUARD, MUFFLER, BLACK

$91.99

$

In Stock, only 1 left!

0

15

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532160589

EXHAUST.TUBE.RH.BS/TWIN
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

5

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

14

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0
