EZ 22 CE (966880101) - Husqvarna 48" Zero-Turn Mower (2010-08) IGNITION SYSTEM Parts Diagram

48" Zero-Turn Mower

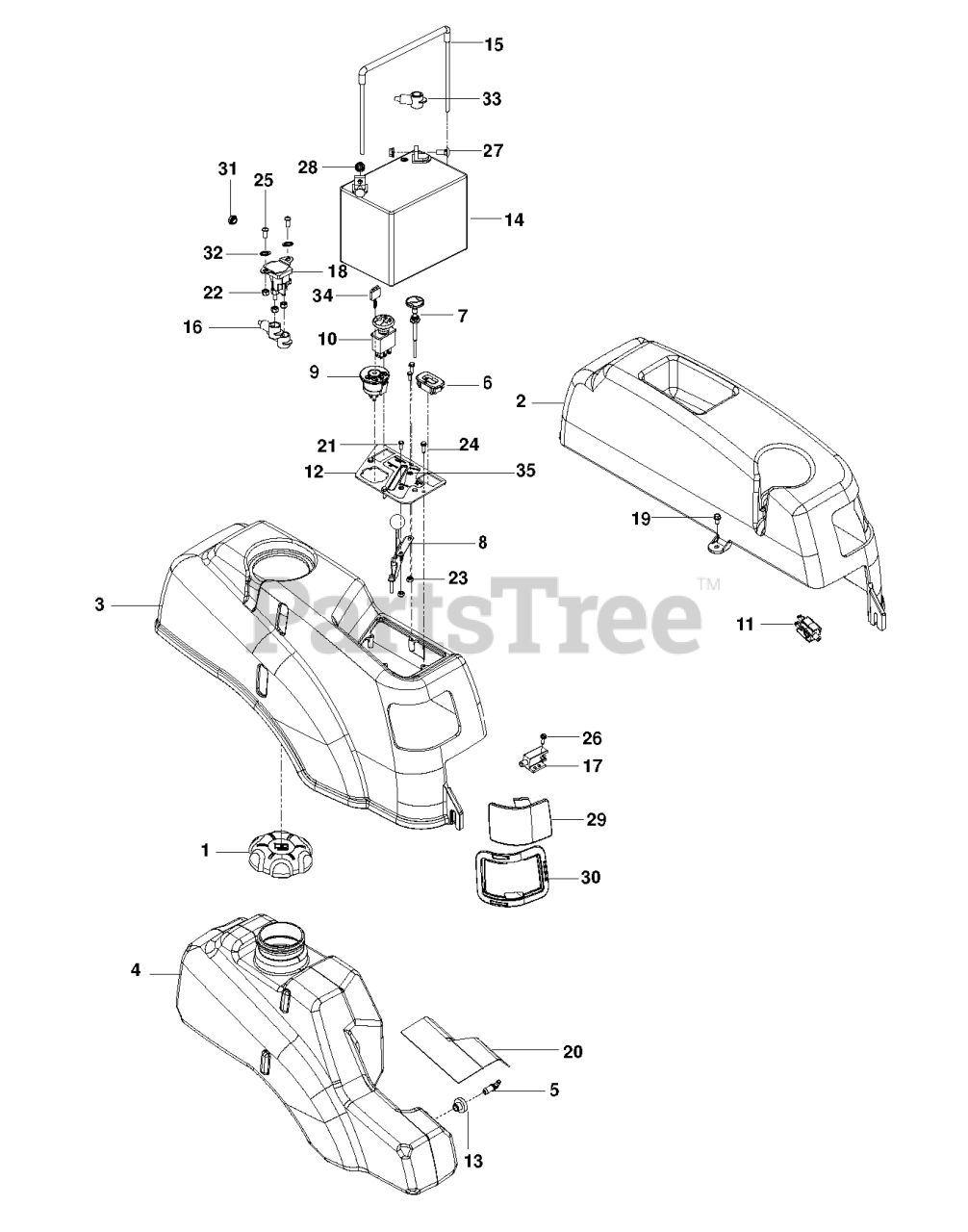

IGNITION SYSTEM Parts Diagram

  • Title

Husqvarna 515980501

WIRING HARNESS
(Superseded to 580798101)

$145.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

2

Husqvarna 539130374

FENDER, LT

$93.99

$

In Stock, only 1 left!

0

27

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 522524801

TANK, FUEL

$

$

Not available

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$10.99

$

In Stock, only 2 left!

0

14

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

12

Husqvarna 539112735

CONSOLE.PLATE.BLACK

$27.99

$

In Stock, only 1 left!

0

30

Husqvarna 539110455

LEFT HEADLIGHT RIM GREY

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 539110056

LENS, COLORED LEFT
(Superseded to 539110457)

$7.49

$

In Stock, only 2 left!

0

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

$9.49

$

Usually ships in 3-10 days

0

34

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 7

0

8

Husqvarna 539112734

THROTTLE CABLE

$34.99

$

In Stock, Qty 11

0

31

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 522559101

SHIELD, HEAT

$37.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539110432

STEM, FUEL TANK
(Superseded to 532139277)

$8.99

$

In Stock, only 1 left!

0

19

Husqvarna 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 5

0

15

Husqvarna 539131209

BATTERY TIE DOWN ASSEMBLY

$31.99

$

In Stock, Qty 5

0

7

Husqvarna 539130209

CHOKE CONTROL
(Superseded to 539112439)

$34.99

$

In Stock, only 1 left!

0

16

Husqvarna 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

32

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

13

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 11

0

21

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 576179401

HOUR METER

$34.99

$

In Stock, Qty 6

0

3

Husqvarna 539130375

RP.FENDER, RT

$

$

Not available

24

Husqvarna 539110673

SCR #10-12X3/4 HEX WAS HD ZD

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 539110057

LENS, COLORED RIGHT
(Superseded to 539110453)

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 539130393

FUEL CAP, HTC

$

$

Not available

9

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

33

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

25

Husqvarna 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539110451

RT HEADLIGHT RIM GREY

$6.49

$

In Stock, only 1 left!

0

23

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

28

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

35

Husqvarna 539112740

DECAL, IGNITION CONSOLE

$

$

Not available

11

Husqvarna 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 12

0
