EZ 17 (968999502) - Husqvarna 42" Zero-Turn Mower (2007-03) 42INCH CUTTING DECK Parts Diagram

42" Zero-Turn Mower

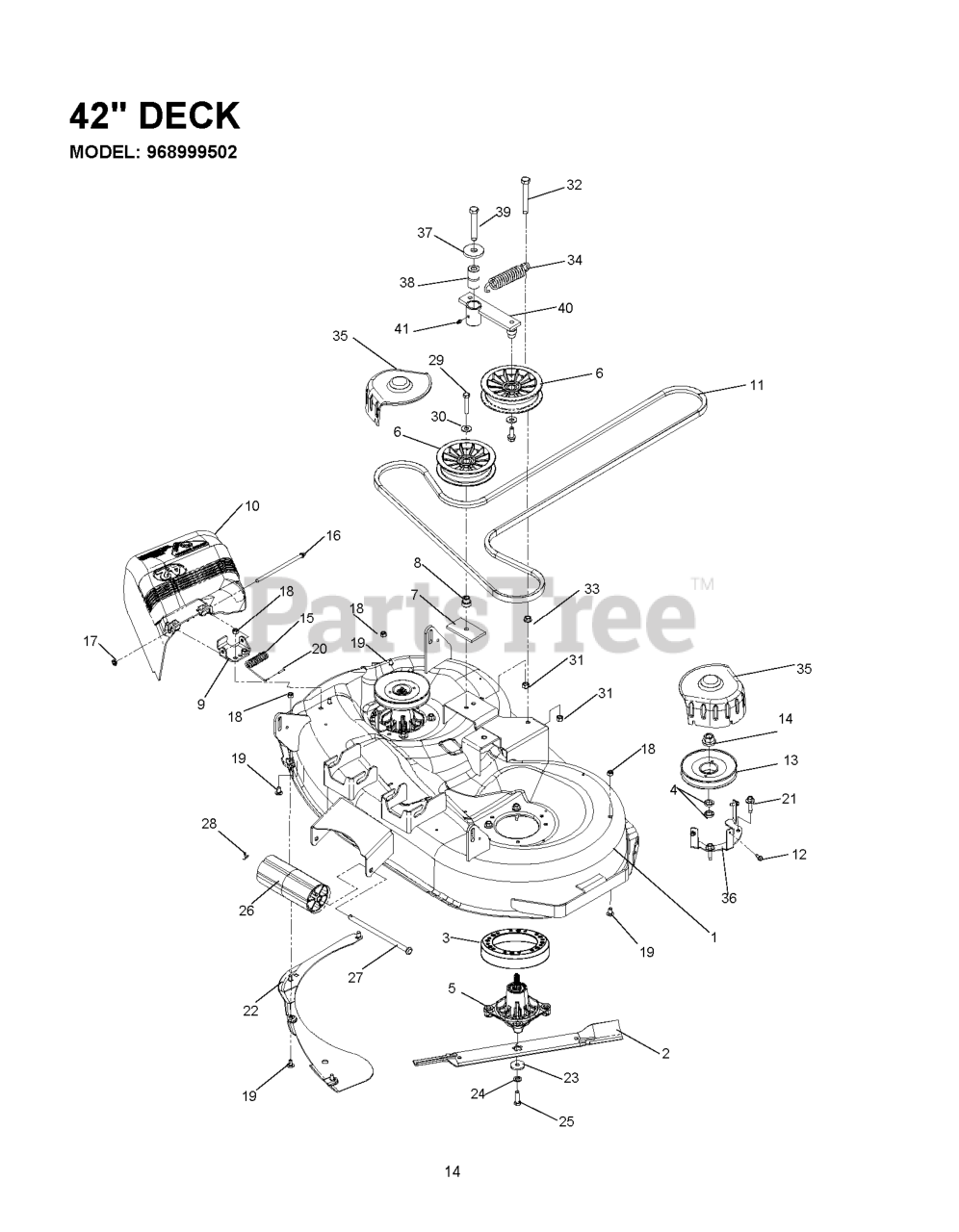

42INCH CUTTING DECK Parts Diagram

  • Title

37

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

33

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

41

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539110463

BAFFLE VORTEX 42
(Superseded to 532159770)

$

$

Not available

11

Husqvarna 539113917

BELT, DECK

$

$

Not available

13

Husqvarna 539113962

RP.PULLEY, DECK
(Superseded to 588586601)

$34.99

$

In Stock, Qty 11

0

1

Husqvarna 539110379

DECK W/DECAL 42" ORANGE

$

$

Not available

19

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539110075

SPINDLE COVER

$

$

Not available

7

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

21

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532193108

DEFLECTOR 42
(Superseded to 532403004)

$44.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 539110323

WASHER, HARDENED
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

24

Husqvarna 539110322

WASHER, LOCK HVY HLCL 3/8
(Superseded to 810030600)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 539114900

MOUNT, BELTSHIELD

$

$

Not available

30

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

40

Husqvarna 539112198

IDLER ARM

$121.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539110328

SPRING, TORSION DEFLECTOR
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

6

Husqvarna 539112196

IDLER
(Superseded to 589766102)

$31.99

$

In Stock, Qty 12

0

2

Husqvarna 539110460

BLADE 42" MULCHING STD
(Superseded to 532134149)

$

$

Not available

5

Husqvarna 539107515

CUTTER HOUSING
(Superseded to 587125201)

$56.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539110321

BOLT, HEX 3/8-24 X 1.25 GR 8
(Superseded to 532850857)

$4.99

$

In Stock, only 3 left!

0

38

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 4 left!

0

9

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 6

0

4

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

28

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

14

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 19

0

17

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539112076

IDLER BUSHING

$

$

Not available

26

Husqvarna 539107612

NOSE ROLLER-48"
(Superseded to 532176066)

$13.99

$

In Stock, Qty 20+

0

3

Husqvarna 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

39

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

27

Husqvarna 539107613

NOSE ROLLER ROD
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

12

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

18

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0
