EYK 22460 H (7800416) - Murray 46" Lawn Tractor, Hydro Drive, 22hp (2009) 46" Mower Deck - Housing, Arbors & Blade Parts Diagram

46" Lawn Tractor, Hydro Drive, 22hp

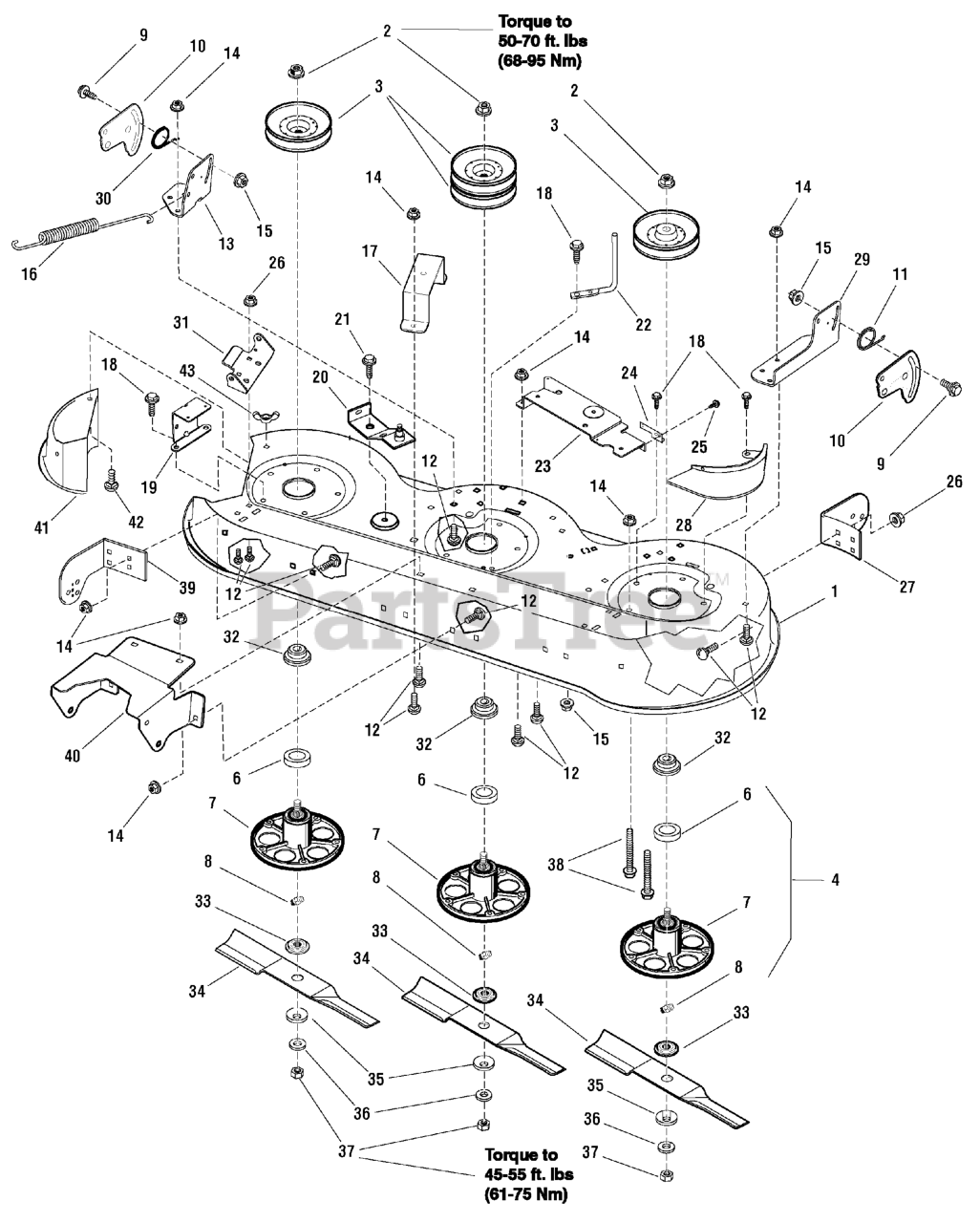

46" Mower Deck - Housing, Arbors & Blade Parts Diagram

  • Title

1

Murray 7600095YP

HOUSING, Mower, 46 in

$655.99

$

Usually ships in 2-12 days

0

2

Murray 15X140MA

NUT, Nylock Ring, Pulley 9/16-18

$9.99

$

In Stock, Qty 7

0

3

Murray 95309MA

PULLEY, Split Steel

$

$

Not available

4

Murray 1001200MA

JACKSHAFT HOUSING ASSY

Note: (Includes Ref Nos. 6, 7 & 8)

$82.99

$

In Stock, only 3 left!

0

6

Murray 1705897SM

BALL BEARING, Jackshaft

$8.49

$

In Stock, Qty 20+

0

7

Murray 1001200MA

JACKSHAFT HOUSING

$82.99

$

In Stock, only 3 left!

0

8

Murray 092530MA

FITTING, Lubrication

$5.49

$

Usually ships in 2-12 days

0

9

Murray 009X51MA

BOLT, Shoulder, 3/8-16 x 1

$4.99

$

In Stock, only 1 left!

0

10

Murray 7300862BMYP

BRACKET, Deck Suspension

$22.99

$

Usually ships in 2-12 days

0

11

Murray 166X42MA

SPRING, Right Torsion

$4.99

$

In Stock, Qty 8

0

12

Murray 7090799SM

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

13

Murray 7300823BMYP

BRACKET, Right Rear

$25.99

$

Usually ships in 2-12 days

0

14

Murray 015X79MA

NUT, Hex Flange 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

15

Murray 015X84MA

NUT, Hex Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

16

Murray 165X79MA

SPRING

$6.49

$

In Stock, Qty 5

0

17

Murray 7300944BMYP

BRACKET, Bellcrank

$27.99

$

Usually ships in 2-12 days

0

18

Murray 0025X7MA

SCREW, Thread Forming 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

19

Murray 7300801BMYP

BRACKET, Cover

$12.99

$

Usually ships in 2-12 days

0

20

Murray 7400226BMYP

IDLER ARM, 46", Right

$133.99

$

Usually ships in 2-12 days

0

21

Murray 009X39MA

BOLT, Shoulder 3/8-16 x 3/4

$6.49

$

In Stock, Qty 6

0

22

Murray 091797ZMA

GUIDE, Belt

$20.99

$

Usually ships in 2-12 days

0

23

Murray 7300798BMYP

BRACKET, Brake Mounting 46 in

$94.99

$

In Stock, only 1 left!

0

24

Murray 7300799BMYP

BRACKET, Brake Plate

$38.99

$

Usually ships in 2-12 days

0

25

Murray 26X249MA

CAPSCREW, 5/16-18

$

$

Not available

26

Murray 015X88MA

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

27

Murray 7300806BMYP

BRACKET, Left Gauge Wheel

$23.99

$

Usually ships in 2-12 days

0

28

Murray 7300943BMYP

BRACKET, Pulley Cover

$31.99

$

Usually ships in 2-12 days

0

29

Murray 7300814BMYP

BRACKET, Left Lift

$31.99

$

Usually ships in 2-12 days

0

30

Murray 166X43MA

SPRING, Left Torsion

$4.99

$

In Stock, only 2 left!

0

31

Murray 7300811BMYP

BRACKET, Hinge

$49.99

$

Usually ships in 2-12 days

0

32

Murray 1001197MA

SPACER, Pulley

$12.99

$

In Stock, only 2 left!

0

33

Murray 690411MA

BLADE ADAPTER

$

$

Not available

34

Murray 7101753AYP

BLADE, 46 in
(Superseded to 1001508E701MA)

$20.99

$

Usually ships in 2-12 days

0

35

Murray 17X166MA

WASHER, Belleville

$13.99

$

In Stock, Qty 18

0

36

Murray 17X165MA

WASHER, Hardened 1

$16.99

$

In Stock, only 4 left!

0

37

Murray 15X100MA

NUT, Blade, 9/16-18

$3.99

$

In Stock, Qty 10

0

38

Murray 091754MA

GUIDE, SCREW (5/16-18)

$16.99

$

Usually ships in 2-12 days

0

39

Murray 7300809BMYP

BRACKET, Right Gauge Wheel

$25.99

$

Usually ships in 2-12 days

0

40

Murray 7300920BMYP

BRACKET, Front Deck

$88.99

$

Usually ships in 2-12 days

0

41

Murray 095086MA

COVER, Mulch

$45.99

$

Usually ships in 2-12 days

0

42

Murray 002X64MA

BOLT, Carriage 5/16-18 x 3/4

$4.49

$

In Stock, only 1 left!

0

43

Murray 014X86MA

WINGNUT, 5/16-18
(Superseded to 703141)

$3.49

$

In Stock, Qty 5

0
