EYK 2240 RD (2988144) - Murray 40" Lawn Tractor, Seco (2009) Lift Group Parts Diagram

40" Lawn Tractor, Seco

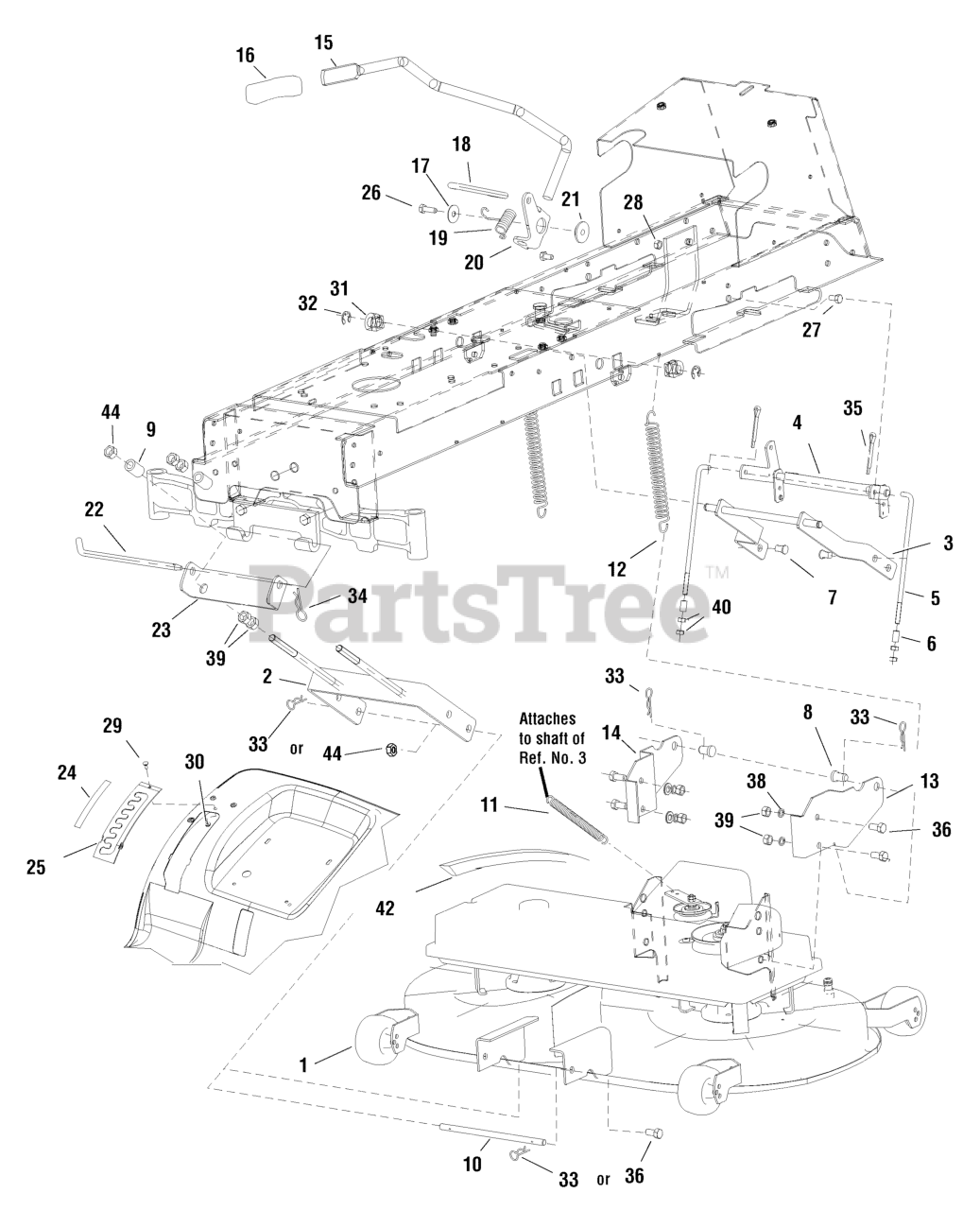

Lift Group Parts Diagram

  • Title

1

Murray 1735923YP

MOWING MECHANISM

$

$

Not available

2

Murray 1735902YP

HINGE, Front

$

$

Not available

3

Murray 1735848YP

ARM, Lift

$

$

Not available

4

Murray 1735958YP

ROD, Lift

$

$

Not available

5

Murray 1735979YP

TIE ROD, Lift

$

$

Not available

6

Murray 1735893YP

DISTANCE, Lift

$

$

Not available

7

Murray 1735945YP

PIN, 0-9016-463

$

$

Not available

8

Murray 1735947YP

PIN, Mowing 1-9310-417

$

$

Not available

9

Murray 1735895YP

DISTANCE, Lift Hitch 0-9521-290

$

$

Not available

10

Murray 1735944YP

STUD

Note: (Replaced by Bolt No. 36 & Nut. No. 44)

$

$

Not available

11

Murray 1735825YP

SPRING, 0-9746-460

$

$

Not available

12

Murray 1735967YP

SPRING, 0-9746-483

$

$

Not available

13

Murray 1735898YP

HANDLE, Extend, Left

$

$

Not available

14

Murray 1735899YP

HANDLE, Extend, Right

$

$

Not available

15

Murray 1735956YP

ROD, Lift -Change

$

$

Not available

16

Murray 1722302SM

GRIP, Black

$8.49

$

In Stock, Qty 10

0

17

Murray 1960044SM

WASHER, 0.312

$4.49

$

In Stock, only 3 left!

0

18

Murray 1727954SM

ROD, Lift .375 dia

$6.99

$

Usually ships in 2-12 days

0

19

Murray 1729652SM

SPRING, Torsion

$6.49

$

In Stock, only 1 left!

0

20

Murray 1728990SM

CLEVIS, Lift

$9.49

$

Usually ships in 2-12 days

0

21

Murray 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 3 left!

0

22

Murray 1731414SM

PIN, Hitch

$14.99

$

Usually ships in 2-12 days

0

23

Murray 1730221ASM

HANGER, Front

$12.99

$

In Stock, only 2 left!

0

24

Murray 1730264SM

DECAL, Height of Cut

$8.99

$

Usually ships in 2-12 days

0

25

Murray 1727985SM

QUADRANT, Lift Height
(Superseded to 1727985BMYP)

$12.99

$

Usually ships in 2-12 days

0

26

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

27

Murray 1930601SM

CAPSCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

28

Murray 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

29

Murray 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

30

Murray 1930641SM

NUT, Hex Flange, Whiz 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

31

Murray 1735881YP

BUSHING, 0-9462-202

$

$

Not available

32

Murray 1735920YP

LOCKRING, 12

$

$

Not available

33

Murray 1735965YP

PIN, Flexible 0-9245-240

$

$

Not available

34

Murray 2176012SM

CLIP, Pin Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

35

Murray 1735964YP

SPINDLE, 3.2 x 25

$

$

Not available

36

Murray 1751847YP

BOLT, M12 x 30

$

$

Currently unavailable

38

Murray 1735992YP

WASHER, 12

$

$

Not available

39

Murray 1735927YP

NUT, M12

Note: (Use with Washer Ref. 38)

$

$

Not available

39

Murray 1751848YP

NUT, Flange Lock, M12

Note: (Washer Ref. 38 Not Required)

$

$

Not available

40

Murray 1735925YP

NUT, M10

$

$

Not available

42

Murray 1735986YP

V-Belt, Li, 17 x 1200

$

$

Not available

44

Murray 1735796YP

NUT, M12

$

$

Not available
