EYK 19540 RD (2988143) - Murray 40" Lawn Tractor, Seco (2009) Hood, Grille & Dash Group Parts Diagram

40" Lawn Tractor, Seco

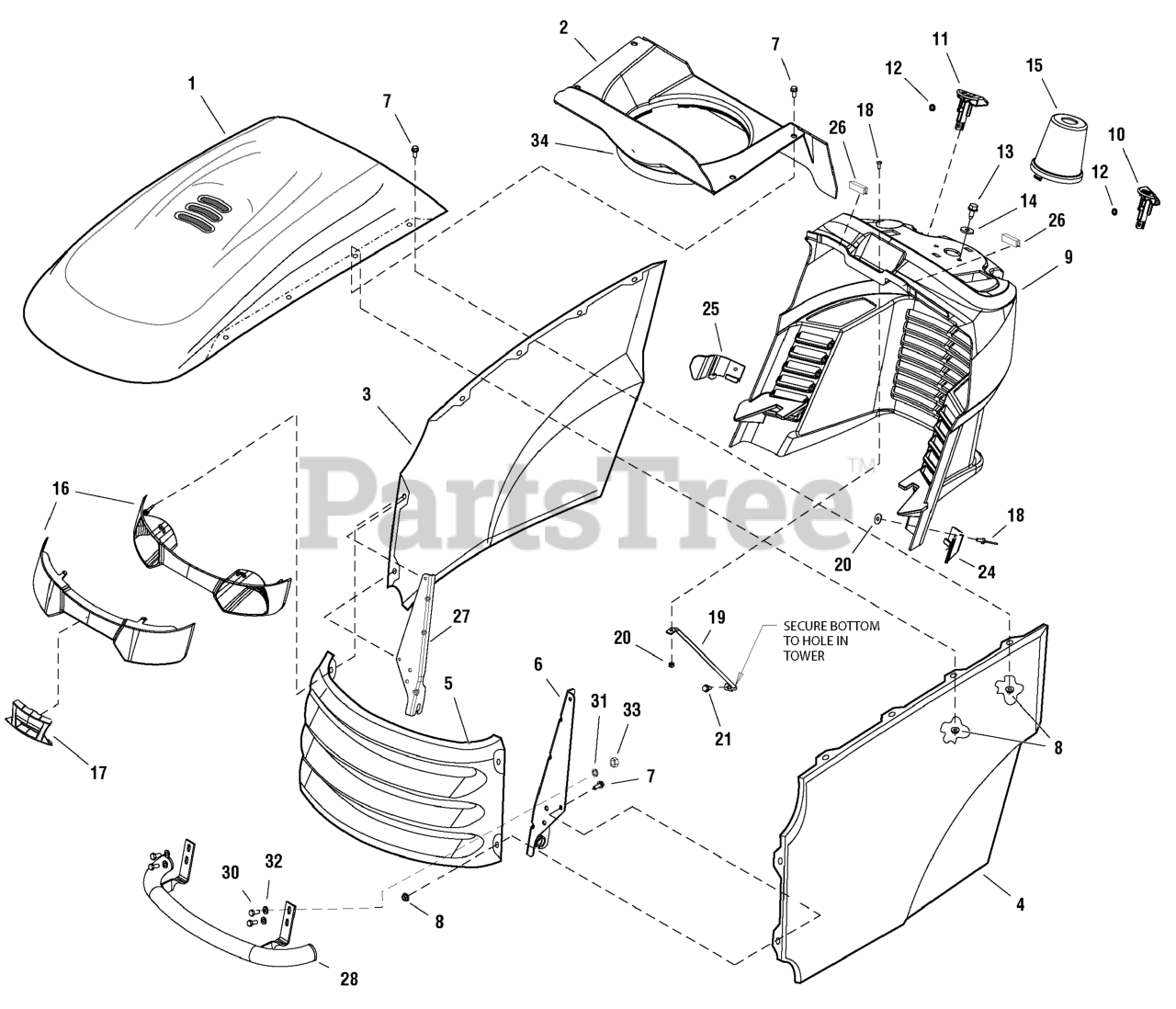

Hood, Grille & Dash Group Parts Diagram

  • Title

1

Murray 1736429DYP

HOOD, With Louvers

$

$

Currently unavailable

2

Murray 7102326YP

DUCT, Air Inlet

$131.99

$

In Stock, only 1 left!

0

3

Murray 1736427DYP

PANEL, Hood RH Side

$

$

Currently unavailable

4

Murray 1736426DYP

PANEL,Hood LH Side

$

$

Currently unavailable

5

Murray 1737054DYP

GRILLE

$

$

Currently unavailable

6

Murray 1727279SM

HINGE, Hood LH
(Superseded to 1727279BMYP)

$20.99

$

Usually ships in 2-12 days

0

7

Murray 1960295SM

CAPSCREW, Hex LK 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

8

Murray 1930641SM

NUT, Hex-Flange LK 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

9

Murray 1727293SM

DASHBOARD

$202.99

$

Usually ships in 2-12 days

0

10

Murray 1728089SM

KNOB, Brake Lock

$7.49

$

In Stock, only 4 left!

0

11

Murray 1728090SM

KNOB, Cruise Lock

$7.49

$

In Stock, Qty 10

0

12

Murray 1960518SM

NUT, Push Pal .250
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

13

Murray 1664847SM

CAPSCREW, Hex Tapit 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Murray 1919381SM

WASHER, 0.312
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

15

Murray 1727999SM

COVER, Steering Shaft

$17.99

$

Usually ships in 2-12 days

0

16

Murray 1727296SM

HEADLIGHT ASSEMBLY

$237.99

$

In Stock, Qty 7

0

17

Murray 1728975SM

INSERT, Light Bar

$12.99

$

In Stock, only 1 left!

0

18

Murray 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

19

Murray 1723123SM

ROD, Dash Support

$11.99

$

Usually ships in 2-12 days

0

20

Murray 1933896SM

NUT, Flange
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

21

Murray 1925003SM

SCREW, Self-Tap
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

24

Murray 1732030SM

GUIDE, Hood, Left

$7.49

$

In Stock, only 2 left!

0

25

Murray 1732031SM

GUIDE, Hood, Right

$7.49

$

In Stock, Qty 5

0

26

Murray 1735878YP

BRAID, Steel Insert

$

$

Not available

27

Murray 1727280SM

HINGE, Hood, Right
(Superseded to 1727280ASM)

$20.99

$

Usually ships in 2-12 days

0

28

Murray 1735879YP

BUMPER, Front

$

$

Not available

30

Murray 1735868YP

BOLT, M8 x 20

$

$

Not available

31

Murray 1735989YP

WASHER, 8.4

$

$

Not available

32

Murray 1736000YP

WASHER, 8

$

$

Not available

33

Murray 1735934YP

NUT, M8

$

$

Not available

34

Murray 1731971SM

ENDING, Rubber

$12.99

$

Usually ships in 2-12 days

0
