EYK 175460 F (7800487) - Murray 46" Lawn Tractor, Hydro Drive, 17.5hp (2009) Fuel Tank Group (7501048_7500721) Parts Diagram

46" Lawn Tractor, Hydro Drive, 17.5hp

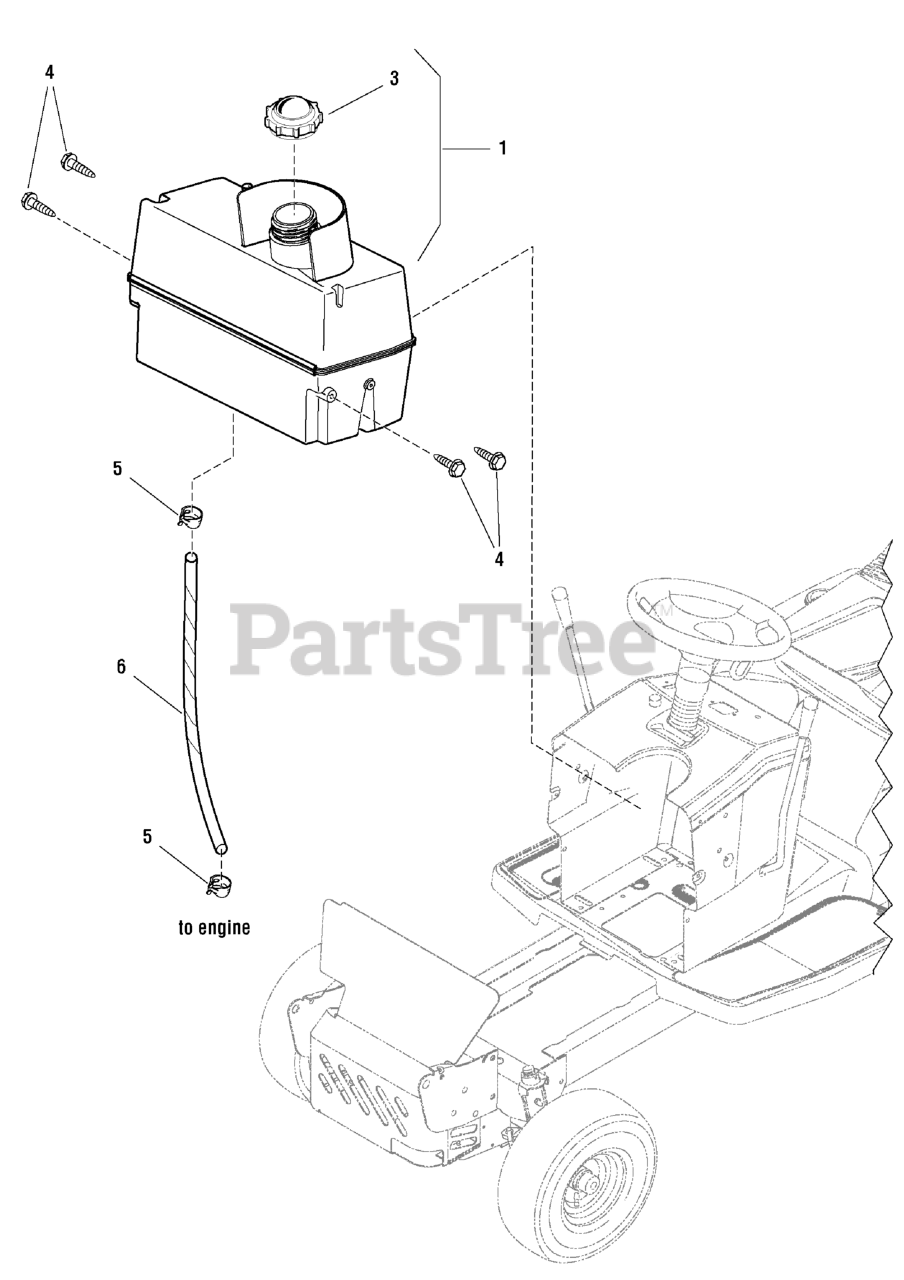

Fuel Tank Group (7501048_7500721) Parts Diagram

  • Title

1

Murray 7601092MA

FUEL TANK, With Cap, 5.3 litres (1.4 gallon)

Note: (Used on 12.5HP & 15.5HP)

$78.99

$

In Stock, only 1 left!

0

1

Murray 7601093MA

FUEL TANK, With Cap, 10.6 litres (2.8 gallon)

Note: (Used on 17.5HP & 22HP)

$170.99

$

In Stock, only 3 left!

0

3

Murray 092317MA

CAP, Fuel Tank

$10.99

$

In Stock, Qty 7

0

4

Murray 26X253MA

SCREW, Thread Forming, 3/16-15 x 7/8

$4.49

$

In Stock, only 1 left!

0

5

Murray 095197MA

HOSE CLAMP
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

6

Murray 791766

LINE, Fuel

Note: (Low Perm, Cut to Length, 12" Long)

$7.99

$

In Stock, Qty 20+

0
