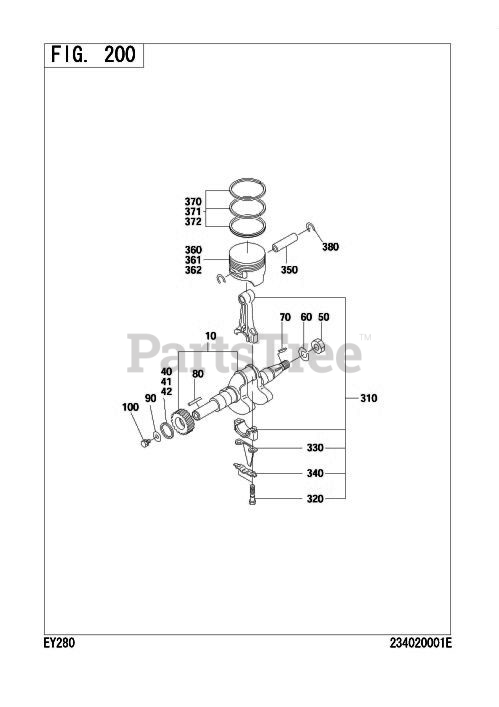

EY280D20390 (EY28) - Subaru Robin Engine 200 Crankshaft Parts Diagram

Engine

200 Crankshaft Parts Diagram

  • Title

10

Subaru Robin 234-20702-11

CRANK SHAFT CP

Note: Start Code: 1187. Remarks: L=260 26DX1/10TAPER.

$351.64

$

Usually ships in 2-12 days

0

10

Subaru Robin 234-20702-01

CRANK SHAFT CP

Note: End Code: 1186. Remarks: L=260 26DX1/10TAPER. Interchangable with 234-20702-11.

$351.64

$

Usually ships in 2-12 days

0

40

Subaru Robin 023-03001-70

SPACER

Note: Remarks: 30.3DX40DX0.6T.

$

$

Not available

41

Subaru Robin 023-03001-80

SPACER

Note: Remarks: 30.3DX40DX0.8T.

$1.49

$

Usually ships in 2-12 days

0

42

Subaru Robin 023-03001-90

SPACER

Note: Remarks: 30.3DX40DX1.0T.

$1.49

$

Usually ships in 2-12 days

0

50

Subaru Robin 002-18180-00

NUT

$6.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 003-20180-00

SPRING WASHER

$0.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 032-30300-10

WOODRUFF KEY

Note: Remarks: 3BX6HX16D.

$4.49

$

Usually ships in 2-12 days

0

310

Subaru Robin 234-22501-00

CONECTING ROD AY

Note: End Code: 2769. Remarks: 100CDX25B 28D-16D. Interchangable with 234-22501-10.

$226.99

$

Usually ships in 2-12 days

0

310

Subaru Robin 234-22501-10

CONECTING ROD AY

Note: Start Code: 2770. Remarks: 100CDX25B 28D-16D.

$226.99

$

Usually ships in 2-12 days

0

320

Subaru Robin 234-23001-03

CONECTING ROD BOLT

Note: End Code: 2769. Interchangable with 227-23001-13.

$3.49

$

Usually ships in 2-12 days

0

320

Subaru Robin 227-23001-13

CONNECTING ROD BOLT

Note: Start Code: 2770. Remarks: M7X1.0X38L.

$3.49

$

Usually ships in 2-12 days

0

330

Subaru Robin 234-23101-03

OIL SCRAPER

$3.49

$

Usually ships in 2-12 days

0

340

Subaru Robin 234-23201-03

ROD ROCK WASHER

Note: End Code: 2769.

$1.49

$

Usually ships in 2-12 days

0

350

Subaru Robin 234-23301-03

PISTON PIN

$14.63

$

Usually ships in 2-12 days

0

360

Subaru Robin 234-23401-03

PISTON

Note: End Code: 5599. Remarks: STD.(75DX56H).

$67.65

$

Usually ships in 2-12 days

0

360

Subaru Robin 234-23411-03

PISTON

Note: Start Code: 5600. Remarks: STD.(75DX43.5H).

$67.65

$

Usually ships in 2-12 days

0

361

Subaru Robin 234-23412-03

PISTON

Note: Start Code: 5600. Remarks: 0.25 O.S.(75DX43.5H).

$103.33

$

Usually ships in 2-12 days

0

361

Subaru Robin 234-23402-03

PISTON

Note: End Code: 5599. Remarks: 0.25 O.S.(75DX56H).

$103.33

$

Usually ships in 2-12 days

0

362

Subaru Robin 234-23403-03

PISTON

Note: End Code: 5599. Remarks: 0.50 O.S.(75DX56H).

$71.06

$

Usually ships in 2-12 days

0

362

Subaru Robin 234-23413-03

PISTON

Note: Start Code: 5600. Remarks: 0.50 O.S.(75DX43.5H).

$71.06

$

Usually ships in 2-12 days

0

370

Subaru Robin 234-23501-07

PISTON RING SET

Note: Remarks: STD.(75D).

$96.99

$

Usually ships in 2-12 days

0

371

Subaru Robin 234-23502-07

PISTON RING SET

Note: Remarks: 0.25 O.S.(75D).

$80.31

$

Usually ships in 2-12 days

0

372

Subaru Robin 234-23503-07

PISTON RING SET

Note: Remarks: 0.50 O.S.(75D).

$52.31

$

Usually ships in 2-12 days

0

380

Subaru Robin 056-51600-10

CLIP

Note: Remarks: 17.1DX1.4D.

$1.49

$

In Stock, Qty 9

0
