EY230BB0120 (EY23) - Subaru Robin Engine 201 Crankshaft Parts Diagram

Engine

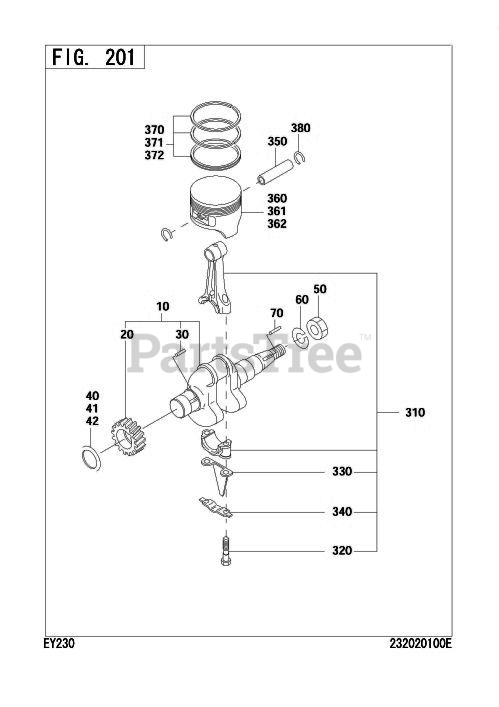

201 Crankshaft Parts Diagram

  • Title
10

Subaru Robin 232-20101-01

CRANK SHAFT CP

Note: Remarks: L=193.

$534.25

$

Usually ships in 2-12 days

0

20

Subaru Robin 232-22301-03

CRANKSHAFT GEAR

Note: Remarks: 25.2DX49DX18B N=20.

$116.45

$

Usually ships in 2-12 days

0

30

Subaru Robin 032-30300-10

WOODRUFF KEY

Note: Remarks: 3BX6HX16D.

$4.49

$

Usually ships in 2-12 days

0

40

Subaru Robin 023-02501-10

SPACER

Note: Remarks: 25.3DX32DX0.6T.

$3.99

$

Usually ships in 2-12 days

0

41

Subaru Robin 023-02501-20

SPACER

Note: Remarks: 25.3DX32DX0.8T.

$5.49

$

Usually ships in 2-12 days

0

42

Subaru Robin 023-02501-30

SPACER

Note: Remarks: 25.3DX32DX1.0T.

$2.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

60

$0.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 032-30300-50

WOODRUFF KEY

Note: Remarks: 3BX6HX16D.

$4.49

$

Usually ships in 2-12 days

0

310

Subaru Robin 232-22501-20

CONNECTING ROD AY

$148.59

$

Usually ships in 2-12 days

0

320

Subaru Robin 214-23001-13

CONNECTING ROD BOLT

$6.20

$

Usually ships in 2-12 days

0

330

$5.18

$

Usually ships in 2-12 days

0

340

Subaru Robin 214-23201-03

ROD LOCKWASHER

$3.49

$

Usually ships in 2-12 days

0

350

Subaru Robin 214-23301-13

PISTON PIN

Note: Remarks: 14DX9DX52L.

$17.99

$

Usually ships in 2-12 days

0

360

Subaru Robin 232-23401-13

PISTON

Note: Remarks: STD(68DX53H).

$67.26

$

Usually ships in 2-12 days

0

361

Subaru Robin 232-23402-03

PISTON

Note: Remarks: 0.25 O.S.(68DX53H).

$79.29

$

Usually ships in 2-12 days

0

362

Subaru Robin 232-23403-03

PISTON

Note: Remarks: 0.50 O.S.(68DX53H).

$79.29

$

Usually ships in 2-12 days

0

370

Subaru Robin 232-23504-07

PISTON RING SET

Note: Remarks: STD(68D).

$63.25

$

Usually ships in 2-12 days

0

371

Subaru Robin 232-23502-07

PISTON RING SET

Note: Remarks: 0.25 O.S.(68D).

$67.26

$

Usually ships in 2-12 days

0

372

Subaru Robin 232-23503-07

PISTON RING SET

Note: Remarks: 0.50 O.S.(68D).

$67.26

$

Usually ships in 2-12 days

0

380

Subaru Robin 056-51400-10

CLIP

Note: Remarks: 14.1DX1.2D.

$0.99

$

Usually ships in 2-12 days

0
