EY230BB0020 (EY23) - Subaru Robin Engine 101 Crankcase Parts Diagram

Engine

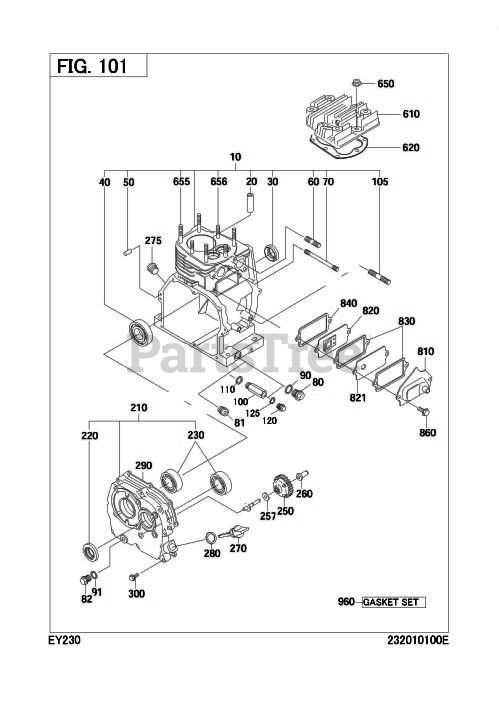

101 Crankcase Parts Diagram

  • Title

10

Subaru Robin 232-10101-31

CRANKCASE CP

Note: Remarks: B,STD.

$1050.43

$

Usually ships in 2-12 days

0

20

Subaru Robin 214-14204-03

VALVE GUIDE

Note: Remarks: 7DX12DX35L.

$18.88

$

Usually ships in 2-12 days

0

30

Subaru Robin 044-02500-70

OIL SEAL

Note: Remarks: 25DX38DX7B. Interchangable with 044-02500-10.

$12.99

$

Usually ships in 2-12 days

0

40

Subaru Robin 060-02500-10

BALL BEARING

Note: Remarks: 6205 25DX52DX15B.

$18.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 005-26081-80

DOWEL PIN

$4.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 010-50802-50

STUD

Note: Remarks: M8X1.25X25L.

$1.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 010-50602-00

STUD

Note: Remarks: M6X1.0X35L.

$0.99

$

Usually ships in 2-12 days

0

80

Subaru Robin 040-11400-30

PLUG

Note: Remarks: M14X1.5X20DX12L.

$3.49

$

In Stock, only 3 left!

0

90

Subaru Robin 021-11400-20

GASKET

Note: Remarks: 14.1DX19DX2.3T.

$0.99

$

Usually ships in 2-12 days

0

105

Subaru Robin 010-50801-20

STUD

Note: Remarks: M8X1.25X35L W/GROOVE.

$3.99

$

Usually ships in 2-12 days

0

210

Subaru Robin 214-10901-11

MAINBEARING COVER CP

Note: Remarks: B-STD.

$249.01

$

Usually ships in 2-12 days

0

220

Subaru Robin 044-02500-70

OIL SEAL

Note: Remarks: 25DX38DX7B. Interchangable with 044-02500-10.

$12.99

$

Usually ships in 2-12 days

0

230

Subaru Robin 060-02500-10

BALL BEARING

Note: Remarks: 6205 25DX52DX15B.

$18.99

$

Usually ships in 2-12 days

0

250

Subaru Robin 214-45001-01

GOVERNOR GEAR CP

Note: Remarks: 52DX26T N=21.

$37.09

$

Usually ships in 2-12 days

0

257

Subaru Robin 023-00600-10

SPACER

Note: Remarks: 6.5DX18DX1T.

$1.49

$

Usually ships in 2-12 days

0

260

Subaru Robin 205-41901-03

GOVERNOR SLEEVE

Note: Remarks: 6DX9DX16DX26L.

$11.99

$

Usually ships in 2-12 days

0

270

Subaru Robin 214-63601-13

OIL GAUGE

Note: Remarks: M22X1.5 L=86+25.

$11.99

$

Usually ships in 2-12 days

0

275

Subaru Robin 042-02200-10

PLUG(RUBBER)

Note: Remarks: 22.2DX26DX12.5L.

$6.99

$

Usually ships in 2-12 days

0

280

Subaru Robin 021-32000-10

GASKET

Note: Remarks: 20DX27DX1.5T.

$2.99

$

In Stock, only 2 left!

0

290

Subaru Robin 214-16001-03

GASKET(BEARING COVER

Note: Remarks: T=0.3.

$4.99

$

Usually ships in 2-12 days

0

300

Subaru Robin 001-14082-80

BOLT AND WASHER AY

$1.49

$

Usually ships in 2-12 days

0

610

Subaru Robin 232-13001-13

CYLINDER HEAD

$132.56

$

Usually ships in 2-12 days

0

620

Subaru Robin 232-15001-01

GASKET CP(HEAD)

Note: Remarks: T=2.0.

$22.08

$

Usually ships in 2-12 days

0

650

Subaru Robin 002-38100-00

FLANGE NUT

$1.99

$

Usually ships in 2-12 days

0

655

Subaru Robin 010-51000-50

STUD

Note: Remarks: M10X1.25X74L.

$5.76

$

Usually ships in 2-12 days

0

656

Subaru Robin 010-51000-60

STUD

Note: Remarks: M10X1.25X50L.

$4.99

$

Usually ships in 2-12 days

0

810

Subaru Robin 214-14401-01

TAPPET COVER CP

$16.40

$

Usually ships in 2-12 days

0

820

Subaru Robin 232-14301-01

BREATHER PLATE CP

$22.08

$

Usually ships in 2-12 days

0

821

Subaru Robin 232-16003-03

OIL SHELTER PLATE UN

$11.44

$

Usually ships in 2-12 days

0

830

Subaru Robin 214-16006-03

GASKET(TAPPET COVER)

Note: Remarks: T=0.8.

$6.99

$

In Stock, only 1 left!

0

840

Subaru Robin 214-16007-13

GASKET(BREATHER)

Note: Remarks: T=2.0.

$4.99

$

Usually ships in 2-12 days

0

860

Subaru Robin 001-10061-60

BOLT AND WASHER AY

$0.99

$

Usually ships in 2-12 days

0

960

Subaru Robin 232-99001-07

GASKET SET

$27.90

$

Usually ships in 2-12 days

0
