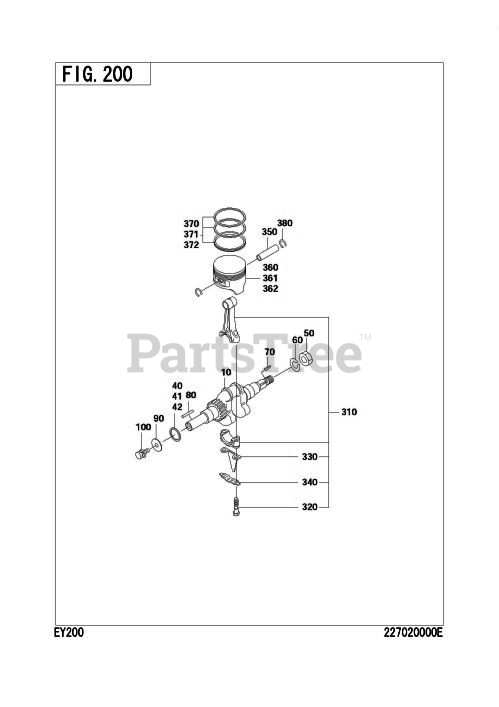

EY200DD8710 (EY20) - Subaru Robin Engine 200 Crankshaft Parts Diagram

Engine

200 Crankshaft Parts Diagram

  • Title

10

Subaru Robin 227-21601-51

CRANK SHAFT CP

Note: Interchangable with 227-21602-01.

$500.06

$

Usually ships in 2-12 days

0

40

Subaru Robin 023-02501-10

SPACER

Note: Remarks: 25.3DX32DX0.6T.

$3.99

$

Usually ships in 2-12 days

0

41

Subaru Robin 023-02501-20

SPACER

Note: Remarks: 25.3DX32DX0.8T.

$5.49

$

Usually ships in 2-12 days

0

42

Subaru Robin 023-02501-30

SPACER

Note: Remarks: 25.3DX32DX1.0T.

$2.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 002-18140-00

NUT

$3.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 003-20140-00

SPRING WASHER

$0.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 032-30300-10

WOODRUFF KEY

Note: Remarks: 3BX6HX16D.

$4.49

$

Usually ships in 2-12 days

0

310

Subaru Robin 227-22501-00

CONNECTING ROD AY

Note: End Code: 2769. Interchangable with 227-22511-00.

$115.44

$

Usually ships in 2-12 days

0

310

Subaru Robin 227-22501-10

CONNECTING ROD AY

Note: Start Code: 2770. Remarks: 91CDX24B 26D-14D.

$115.44

$

Usually ships in 2-12 days

0

320

Subaru Robin 227-23001-13

CONNECTING ROD BOLT

Note: Start Code: 2770. Remarks: M7X1.0X38L.

$3.49

$

Usually ships in 2-12 days

0

320

Subaru Robin 227-23001-03

CONNECTING ROD BOLT

Note: End Code: 2769. Remarks: M7X1.0X37L. Interchangable with 227-23001-13.

$3.49

$

Usually ships in 2-12 days

0

330

Subaru Robin 227-23101-03

OIL SCRAPER

$4.49

$

Usually ships in 2-12 days

0

340

Subaru Robin 227-23201-03

ROD LOCK WASHER

Note: End Code: 2769.

$2.99

$

Usually ships in 2-12 days

0

350

Subaru Robin 214-23301-13

PISTON PIN

Note: Remarks: 14DX9DX52L.

$17.99

$

Usually ships in 2-12 days

0

360

Subaru Robin 227-23401-03

PISTON

Note: Remarks: STD.(67DX56H).

$66.99

$

Usually ships in 2-12 days

0

361

Subaru Robin 227-23402-03

PISTON

Note: Remarks: 0.25 O.S.(67DX56H).

$45.99

$

Usually ships in 2-12 days

0

362

Subaru Robin 227-23403-03

PISTON

Note: Remarks: 0.50 O.S.(67DX56H).

$52.06

$

Usually ships in 2-12 days

0

370

Subaru Robin 227-23511-07

PISTON RING SET

Note: End Code: 5387. Remarks: STD.(67D). Interchangable with 227-23511-17.

$40.86

$

Usually ships in 2-12 days

0

370

Subaru Robin 227-23511-17

PISTON RING SET

Note: Start Code: 5388. Remarks: STD.(67D).

$40.86

$

Usually ships in 2-12 days

0

371

Subaru Robin 227-23512-17

PISTON RING SET

Note: Start Code: 5388. Remarks: 0.25 O.S.(67D).

$67.99

$

Usually ships in 2-12 days

0

371

Subaru Robin 227-23512-07

PISTON RING SET

Note: End Code: 5387. Remarks: 0.25 O.S.(67D). Interchangable with 227-23512-17.

$67.99

$

Usually ships in 2-12 days

0

372

Subaru Robin 227-23513-17

PISTON RING SET

Note: Start Code: 5388. Remarks: 0.50 O.S.(67D).

$60.99

$

Usually ships in 2-12 days

0

372

Subaru Robin 227-23513-07

PISTON RING SET

Note: End Code: 5387. Remarks: 0.50 O.S.(67D). Interchangable with 227-23513-17.

$60.99

$

Usually ships in 2-12 days

0

380

Subaru Robin 056-51400-10

CLIP

Note: Remarks: 15.3DX1.2D.

$0.99

$

Usually ships in 2-12 days

0
