EY152BK0040 (EY15-2) - Subaru Robin Engine 700 Electric Device Parts Diagram

Engine

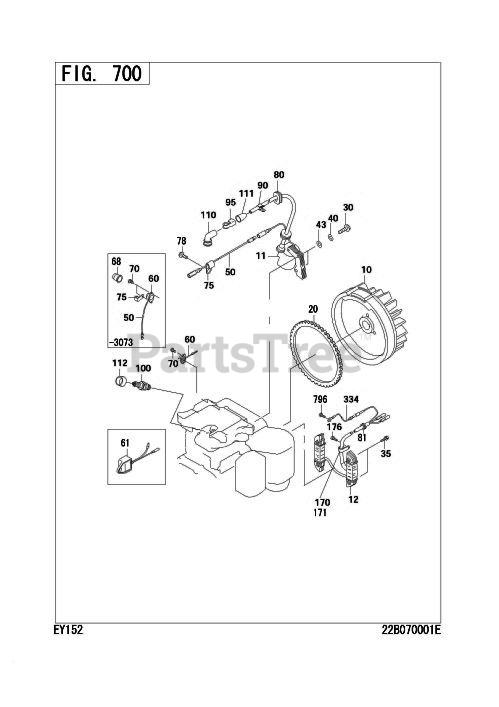

700 Electric Device Parts Diagram

  • Title

10

Subaru Robin 226-79101-01

FLYWHEEL CP

$224.18

$

Usually ships in 2-12 days

0

11

Subaru Robin 226-79460-01

IGNITION COIL CP

Note: Start Code: 3379. End Code: 3531. Interchangable with 226-79460-31.

$186.78

$

Usually ships in 2-12 days

0

11

226-79460-11

IGNITION COIL CP

Note: End Code: 3378. Interchangable with 226-79460-31.

$

$

Not available

11

Subaru Robin 226-79460-31

IGNITION COIL CP

Note: Start Code: 5185.

$186.78

$

Usually ships in 2-12 days

0

11

Subaru Robin 226-79460-21

IGNITION COIL CP

Note: Start Code: 3532. End Code: 5184. Interchangable with 226-79460-31.

$186.78

$

Usually ships in 2-12 days

0

30

Subaru Robin 011-00601-21

FLANGE BOLT

Note: Remarks: M6X1.0X13.5DX30L.

$1.49

$

Usually ships in 2-12 days

0

50

Subaru Robin 214-73201-01

WIRE 1 CP

Note: End Code: 3073. Remarks: L=60 BLACK.

$3.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 066-00003-61

SWITCH AY

Note: Start Code: 3532.

$13.18

$

Usually ships in 2-12 days

0

60

Subaru Robin 066-00003-60

SWITCH AY

Note: Start Code: 3074. End Code: 3531. Interchangable with 066-00003-61.

$13.18

$

Usually ships in 2-12 days

0

60

Subaru Robin 066-20000-11

STOP BUTTON

Note: End Code: 3073. Interchangable with 066-99002-17.

$12.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 015-00400-90

TAPPING SCREW

Note: Start Code: 3074. Remarks: M4X10L.

$0.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 015-00400-10

TAPPING SCREW

Note: End Code: 3073. Remarks: M4X8L.

$0.99

$

Usually ships in 2-12 days

0

80

Subaru Robin 227-75001-03

GROMMET

$1.49

$

Usually ships in 2-12 days

0

100

Subaru Robin 065-01401-90

SPARK PLUG

Note: Remarks: NGK BP4HS.

$21.99

$

Usually ships in 2-12 days

0

110

Subaru Robin 065-50000-51

SPARK PLUG CAP

$11.99

$

Usually ships in 2-12 days

0
