EY080BN7270 (EY08) - Subaru Robin Engine 200 Crankshaft Parts Diagram

Engine

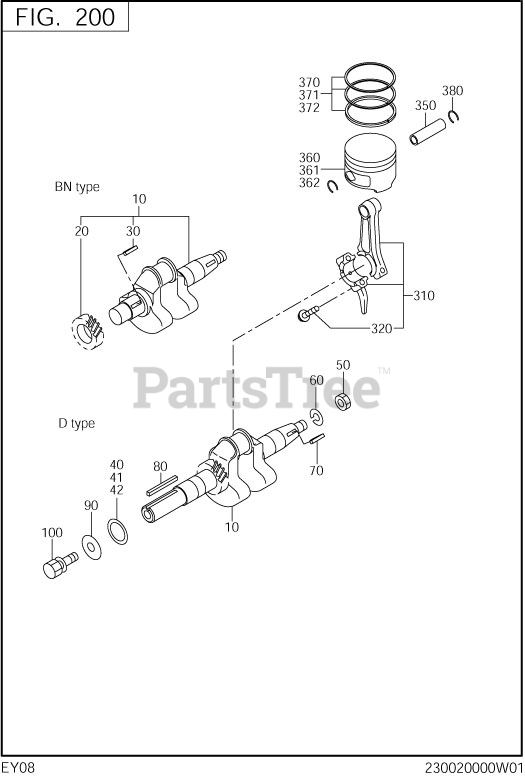

200 Crankshaft Parts Diagram

  • Title

10

230-20101-21

CRANKSHAFT CP

Note: Start Code: 4390. End Code: 4505. Start Date: 1/7/1999 0:00:00. Start Date: 5/2/1999 0:00:00. Remarks: L=141.

$

$

Not available

10

230-20101-31

CRANKSHAFT CP

Note: Start Code: 4506. Start Date: 5/3/1999 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: L=141.

$

$

Not available

10

Subaru Robin 230-20101-11

CRANKSHAFT CP

Note: End Code: 4389. Start Date: 1/18/1983 0:00:00. Start Date: 1/6/1999 0:00:00. Remarks: L=141. Interchangable with 230-20101-21.

$135.31

$

Usually ships in 2-12 days

0

20

230-22301-03

CRANKSHAFT GEAR

Note: Start Date: 1/18/1983 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

30

Subaru Robin 005-32031-01

WOODRUFF KEY

Note: Start Date: 1/18/1983 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.99

$

Usually ships in 2-12 days

0

40

Subaru Robin 023-01700-20

SPACER

Note: Start Date: 1/18/1983 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.8.

$7.59

$

Usually ships in 2-12 days

0

41

Subaru Robin 023-01700-30

SPACER

Note: Start Date: 1/18/1983 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=1.0.

$7.59

$

Usually ships in 2-12 days

0

42

Subaru Robin 023-01700-40

SPACER

Note: Start Date: 1/18/1983 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=1.2.

$7.59

$

Usually ships in 2-12 days

0

50

Subaru Robin 002-18120-00

NUT

Note: Start Date: 1/18/1983 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.49

$

Usually ships in 2-12 days

0

60

Subaru Robin 003-20120-00

SPRING WASHER

Note: Start Date: 1/18/1983 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 12.2DX21.5DX3T.

$0.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 005-32031-01

WOODRUFF KEY

Note: Start Date: 1/18/1983 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.99

$

Usually ships in 2-12 days

0

310

Subaru Robin 230-22501-20

CONNECTING ROD AY

Note: Start Date: 1/18/1983 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 66CDX17B 20D-11D.

$78.99

$

Usually ships in 2-12 days

0

320

Subaru Robin 230-23001-23

CONNECTING ROD BOLT

Note: Start Date: 1/18/1983 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M5X0.8X12DX25L.

$2.99

$

Usually ships in 2-12 days

0

350

Subaru Robin 230-23301-03

PISTON PIN

Note: Start Date: 1/18/1983 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 11DX8DX40L.

$3.99

$

Usually ships in 2-12 days

0

360

Subaru Robin 230-23401-03

PISTON

Note: End Code: 6665. Start Date: 1/18/1983 0:00:00. Start Date: 3/31/2005 0:00:00. Remarks: STD (51DX42H). Interchangable with 230-23411-H3.

$30.99

$

Usually ships in 2-12 days

0

360

Subaru Robin 230-23411-H3

PISTON

Note: Start Code: 6666. Start Date: 4/1/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: STD (51DX42H).

$30.99

$

Usually ships in 2-12 days

0

361

Subaru Robin 230-23402-03

PISTON

Note: End Code: 6665. Start Date: 1/18/1983 0:00:00. Start Date: 3/31/2005 0:00:00. Remarks: 0.25 O.S.(51DX42H). Interchangable with 230-23412-H3.

$18.60

$

Usually ships in 2-12 days

0

361

230-23412-H3

PISTON

Note: Start Code: 6666. Start Date: 4/1/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 0.25 O.S.(51DX42H).

$

$

Not available

362

Subaru Robin 230-23403-03

PISTON

Note: End Code: 6665. Start Date: 1/18/1983 0:00:00. Start Date: 3/31/2005 0:00:00. Remarks: 0.50 O.S.(51DX42H). Interchangable with 230-23413-H3.

$18.60

$

Usually ships in 2-12 days

0

362

230-23413-H3

PISTON

Note: Start Code: 6666. Start Date: 4/1/2005 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 0.50 O.S.(51DX42H).

$

$

Not available

370

Subaru Robin 230-23511-07

PISTON RING SET STD

Note: Start Date: 12/31/9999 0:00:00.

$19.99

$

Usually ships in 2-12 days

0

371

Subaru Robin 230-23512-07

PISTON RING SET 0.25

Note: Start Date: 12/31/9999 0:00:00.

$19.79

$

Usually ships in 2-12 days

0

372

Subaru Robin 230-23513-07

PISTON RING SET 0.50

Note: Start Date: 12/31/9999 0:00:00.

$19.79

$

Usually ships in 2-12 days

0

380

Subaru Robin 056-51100-10

CLIP

Note: Start Date: 1/18/1983 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 12DX1D.

$0.99

$

In Stock, only 1 left!

0
