EXZ 2500S HE - RedMax Maxtreme Edger Attachment (SN: 00015257 - 00028085) (2000-07) 058 - GEAR CASE/HANDLE/GUARD/WHEEL Parts Diagram

Maxtreme Edger Attachment

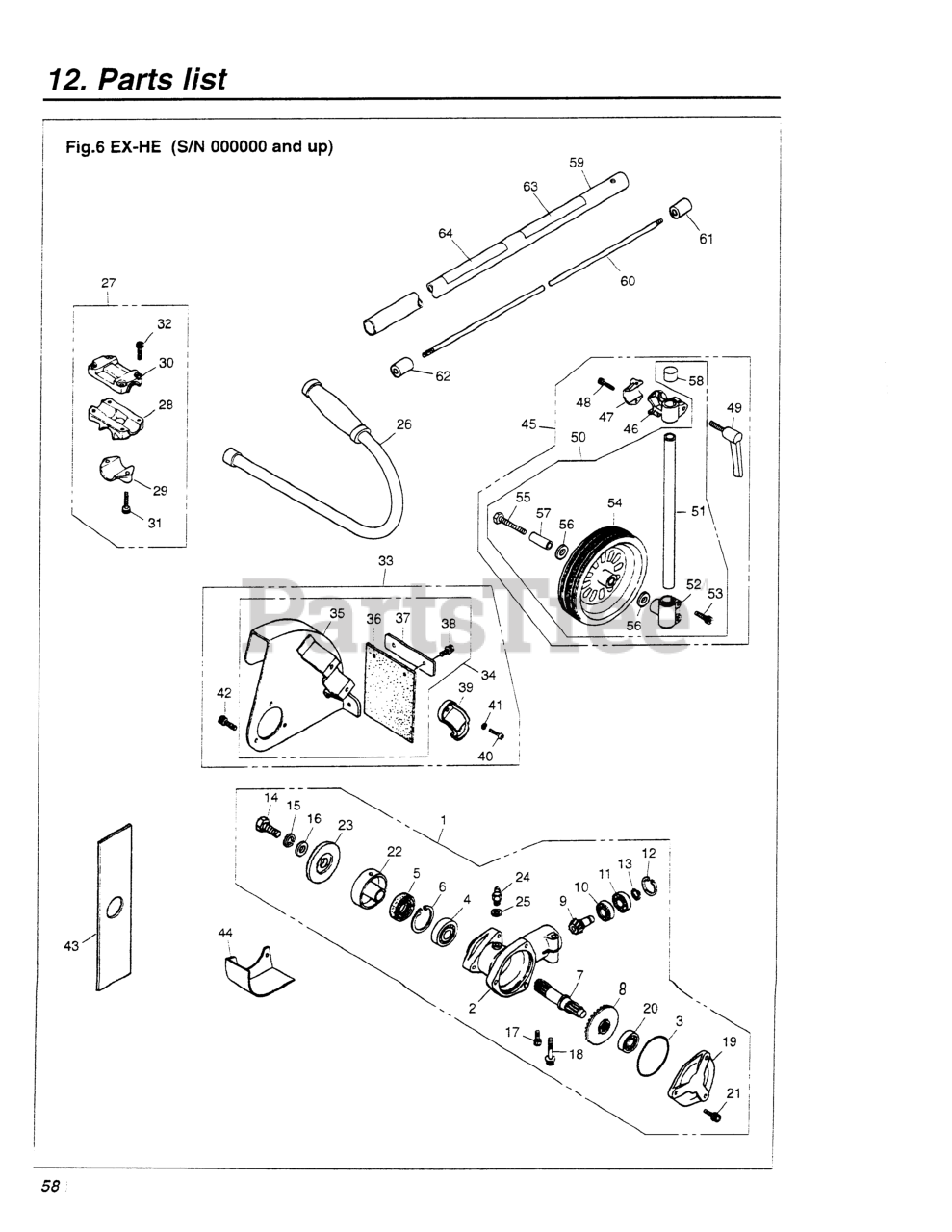

058 - GEAR CASE/HANDLE/GUARD/WHEEL Parts Diagram

  • Title

1

RedMax 636713000

6367-06050
(Superseded to 515589801)

$227.99

$

Usually ships in 3-10 days

0

2

RedMax 636713110

6367-06060
(Superseded to 574018601)

$

$

Not available

3

RedMax 636713150

O-RING
(Superseded to 521452701)

$

$

Not available

4

RedMax 0600006201

BEARING

$

$

Not available

5

RedMax 318013141

SEAL, OIL
(Superseded to 520889801)

$6.49

$

In Stock, only 3 left!

0

6

RedMax 0406503212

RING, SNAP, M32 x 1.2
(Superseded to 504121001)

$3.99

$

In Stock, only 2 left!

0

7

RedMax 354113212

SHAFT, GEAR
(Superseded to 514366401)

$22.99

$

Usually ships in 3-10 days

0

8

RedMax 636713130

GEAR
(Superseded to 521452501)

$

$

Not available

9

RedMax 636713140

PINION
(Superseded to 521452601)

$36.99

$

Usually ships in 3-10 days

0

10

RedMax 0600000609

BEARING (RPLS T3403-13530)
(Superseded to 505169201)

$9.99

$

In Stock, Qty 5

0

11

RedMax 0600100609

BEARING (RPLS T3300-13531)
(Superseded to 516129701)

$8.99

$

In Stock, only 3 left!

0

12

RedMax 0406502412

RING, SNAP, M24 x 1.2
(Superseded to 505169401)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 321013330

RING, SNAP (RPLS T3300-13330)
(Superseded to 520910501)

$3.49

$

Usually ships in 3-10 days

0

14

RedMax 357933260

BOLT, LH
(Superseded to 505169601)

$7.49

$

In Stock, Qty 6

0

15

RedMax 331043210

WASHER (RPLS 3180-13270)
(Superseded to 505169701)

$4.99

$

In Stock, only 2 left!

0

16

RedMax 0164330823

WASHER, M8 x 2.3 (RPLS -20823)
(Superseded to 505169801)

$4.99

$

In Stock, only 1 left!

0

17

RedMax 0125230512

BOLT, M5 x 12
(Superseded to 516070401)

$

$

Not available

18

RedMax 354013260

BOLT, M6 x 1.35
(Superseded to 521171901)

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 636713120

COVER
(Superseded to 521452401)

$

$

Not available

20

RedMax 0600006000

BEARING (RPLS T3403-13510)
(Superseded to 505170201)

$9.99

$

In Stock, only 3 left!

0

21

RedMax 335031470

BOLT
(Superseded to 574081301)

$3.99

$

Usually ships in 3-10 days

0

22

RedMax 354113241

HOLDER (A)
(Superseded to 514366601)

$20.99

$

In Stock, only 2 left!

0

23

RedMax 354113251

HOLDER (B)
(Superseded to 505171401)

$13.99

$

In Stock, only 4 left!

0

24

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

25

RedMax 0164120608

WASHER, M6 X .8
(Superseded to 505171601)

$3.99

$

Usually ships in 3-10 days

0

26

RedMax 636714200

HANDLE, J

$

$

Not available

27

RedMax 358314101

BRACKET ASSY (REPLACES -14100)
(Superseded to 521210301)

$22.99

$

Usually ships in 3-10 days

0

28

RedMax 358314111

BRACKET

$7.33

$

Usually ships in 3-10 days

0

29

RedMax 358314121

CAP, LOWER
(Superseded to 521210501)

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 325714192

CAP, UPPER (RPLS -14191)

$3.65

$

Usually ships in 3-10 days

0

31

RedMax 0125230522

BOLT, M5 X 22
(Superseded to 516070901)

$3.49

$

Usually ships in 3-10 days

0

32

RedMax 0125230525

BOLT, M5 X 25
(Superseded to 516071001)

$3.49

$

Usually ships in 3-10 days

0

33

RedMax 636724000

6461-24000

$

$

Not available

34

RedMax 636724100

6461-24100
(Superseded to 574018801)

$74.99

$

Usually ships in 3-10 days

0

35

RedMax 636724110

6367-24111
(Superseded to 574016601)

$96.99

$

Usually ships in 3-10 days

0

36

RedMax 636724120

PLATE (RUBBER)
(Superseded to 515591501)

$4.99

$

Usually ships in 3-10 days

0

37

RedMax 636724131

PLATE (REPLACES -24130)
(Superseded to 515591701)

$6.99

$

Usually ships in 3-10 days

0

38

RedMax 022530512

BOLT, M5 X 12
(Superseded to 516089901)

$3.49

$

Usually ships in 3-10 days

0

39

RedMax 580724120

3520-24120
(Superseded to 521160201)

$

$

Not available

40

RedMax 0125230618

BOLT, M6 X 18
(Superseded to 516071901)

$1.49

$

Usually ships in 3-10 days

0

41

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

42

RedMax 335031470

BOLT
(Superseded to 574081301)

$3.99

$

Usually ships in 3-10 days

0

43

RedMax 636715110

BLADE, EDGER (RPLS 147315)

$

$

Not available

44

RedMax T305213610

COVER (CAN USE 6367-96110)
(Superseded to 521807601)

$17.99

$

In Stock, only 1 left!

0

45

RedMax T305225001

WHEEL ASSY COMP (RPLS -25000)
(Superseded to 521807801)

$136.99

$

Usually ships in 3-10 days

0

46

RedMax 636715230

BRACKET
(Superseded to 515591001)

$34.99

$

Usually ships in 3-10 days

0

47

RedMax 358314121

CAP, LOWER
(Superseded to 521210501)

$4.99

$

Usually ships in 3-10 days

0

48

RedMax 0125230522

BOLT, M5 X 22
(Superseded to 516070901)

$3.49

$

Usually ships in 3-10 days

0

49

RedMax 395615340

LEVER
(Superseded to 521312801)

$24.99

$

Usually ships in 3-10 days

0

50

RedMax T305225101

WHEEL ASSY (RPLS -25100)
(Superseded to 521807801)

$136.99

$

Usually ships in 3-10 days

0

51

RedMax 636715210

PIPE
(Superseded to 515590901)

$11.99

$

Usually ships in 3-10 days

0

52

RedMax 380815230

3808-15233
(Superseded to 380815233)

$

$

Not available

53

RedMax 0125230625

BOLT, M6 X 25
(Superseded to 506609501)

$3.49

$

Usually ships in 3-10 days

0

54

RedMax T305225150

WHEEL
(Superseded to 505172501)

$42.99

$

In Stock, only 2 left!

0

55

RedMax 0101081055

BOLT (REPLACES -81060)

$5.26

$

Usually ships in 3-10 days

0

56

RedMax 0164221016

WASHER, M10 x 1.6
(Superseded to 516078901)

$

$

Not available

57

RedMax T305225160

SPACER, PIPE
(Superseded to 521808001)

$

$

Not available

58

RedMax T305215250

CAP
(Superseded to 521807701)

$3.99

$

Usually ships in 3-10 days

0

59

RedMax T310512100

PIPE COMPLETE
(Superseded to 521814001)

$43.99

$

Usually ships in 3-10 days

0

60

RedMax T310212210

SHAFT
(Superseded to 521813601)

$28.99

$

Usually ships in 3-10 days

0

61

RedMax 603612241

JOINT, SHAFT (RPLS -12240)
(Superseded to 515512901)

$26.99

$

In Stock, only 2 left!

0

62

RedMax 603612250

SPACER
(Superseded to 515513001)

$9.49

$

Usually ships in 3-10 days

0

63

RedMax T310512510

PLATE, NAME (RPLS.T3052-12510)

$1.73

$

Usually ships in 3-10 days

0

64

RedMax 642512552

PLATE, CAUTION

$2.96

$

Usually ships in 3-10 days

0
