EXZ 2500S BC - RedMax Maxtreme Brushcutter Attachment (SN: 00015257 - 00028085) (2000-07) 050 - GEAR CASE/GUARD/SHAFT Parts Diagram

Maxtreme Brushcutter Attachment

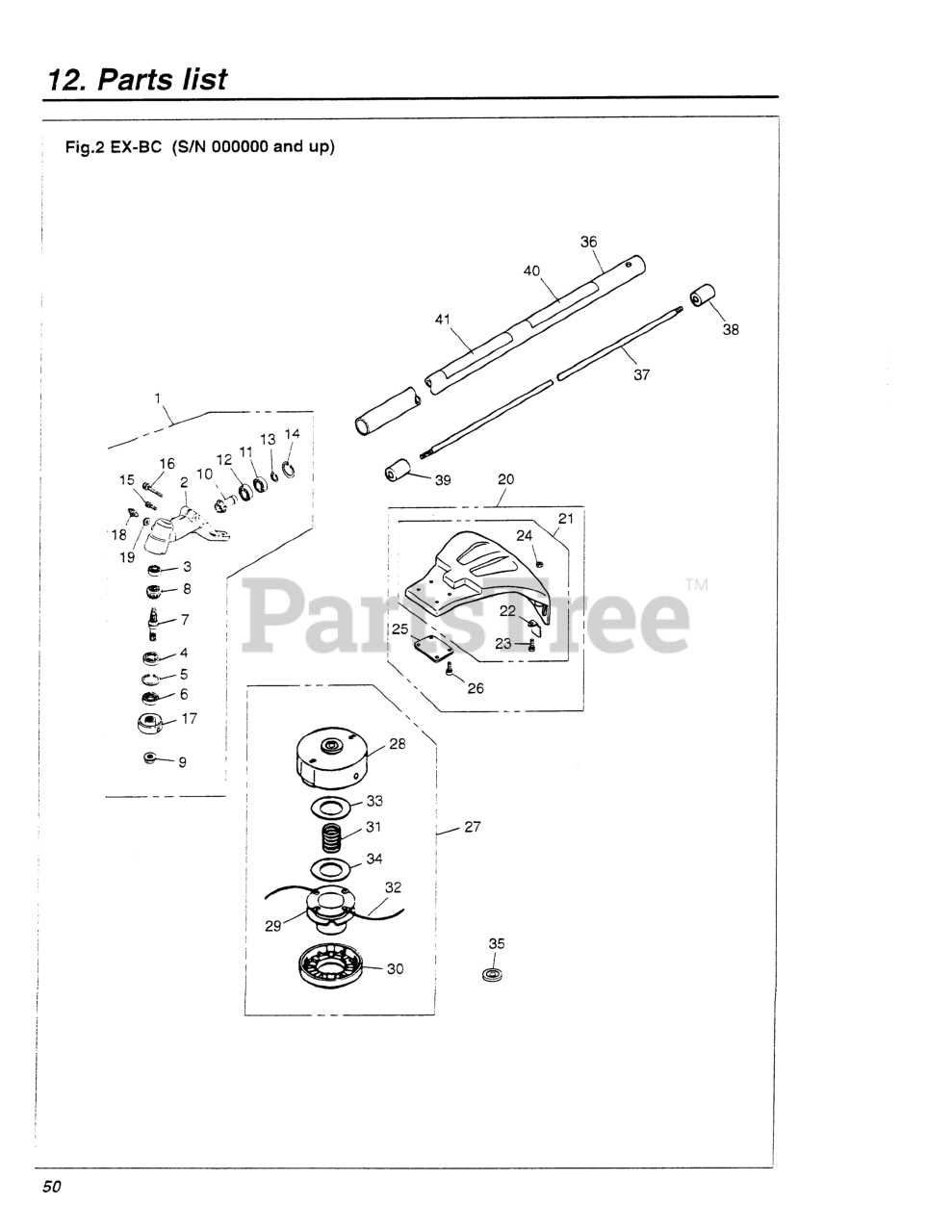

050 - GEAR CASE/GUARD/SHAFT Parts Diagram

  • Title
1

RedMax T300213001

GEARCASE ASSY (RPLS -13000)
(Superseded to 512497401)

$125.99

$

Usually ships in 3-10 days

0

2

RedMax 648913110

GEARCASE
(Superseded to 521479101)

$

$

Not available

3

RedMax 0600000626

BEARING (RPLS T3300-13521)
(Superseded to 516127701)

$7.99

$

Usually ships in 3-10 days

0

4

RedMax 0600006000

BEARING (RPLS T3403-13510)
(Superseded to 505170201)

$9.99

$

In Stock, only 3 left!

0

5

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$4.99

$

In Stock, only 2 left!

0

6

RedMax 356513130

SEAL, OIL
(Superseded to 521197001)

$7.49

$

In Stock, only 1 left!

0

7

RedMax T300213210

SHAFT
(Superseded to 512497501)

$

$

Not available

8

RedMax 644013220

GEAR
(Superseded to 515632401)

$

$

Not available

9

RedMax T300213260

NUT
(Superseded to 521804001)

$4.99

$

In Stock, only 3 left!

0

10

RedMax T300213310

PINION
(Superseded to 512497801)

$

$

Not available

11

RedMax 0600100609

BEARING (RPLS T3300-13531)
(Superseded to 516129701)

$8.99

$

In Stock, only 3 left!

0

12

RedMax 0600000609

BEARING (RPLS T3403-13530)
(Superseded to 505169201)

$9.99

$

In Stock, Qty 5

0

13

RedMax 321013330

RING, SNAP (RPLS T3300-13330)
(Superseded to 520910501)

$3.49

$

Usually ships in 3-10 days

0

14

RedMax 0406502412

RING, SNAP, M24 x 1.2
(Superseded to 505169401)

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$4.99

$

In Stock, only 1 left!

0

16

RedMax 335021320

BOLT
(Superseded to 521049801)

$3.49

$

Usually ships in 3-10 days

0

17

RedMax 644013242

HOLDER (A)
(Superseded to 515632501)

$31.99

$

Usually ships in 3-10 days

0

18

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

19

RedMax 0164120608

WASHER, M6 X .8
(Superseded to 505171601)

$3.99

$

Usually ships in 3-10 days

0

20

RedMax T300224001

GUARD ASSY (RPLS -24000)
(Superseded to 521804201)

$

$

Not available

21

RedMax T300224101

GUARD COMP (RPLS. -24100)
(Superseded to 521804301)

$

$

Not available

22

RedMax T300224121

BLADE (RPLS T3002-24120)
(Superseded to 521804401)

$7.49

$

In Stock, only 3 left!

0

23

RedMax 026390516

SCREW
(Superseded to 510482201)

$3.49

$

Usually ships in 3-10 days

0

24

RedMax 332015310

NUT
(Superseded to 521000601)

$4.99

$

In Stock, Qty 6

0

25

RedMax 648924120

PLATE
(Superseded to 521479701)

$2.49

$

Usually ships in 3-10 days

0

26

RedMax 0125230514

BOLT (USE 3310-31720)
(Superseded to 520961501)

$4.99

$

In Stock, only 1 left!

0

27

RedMax PT104

4
(Superseded to 511010601)

$58.99

$

In Stock, only 2 left!

0

28

RedMax 646015113

CASE (RPLS -15112)
(Superseded to 515639101)

$28.99

$

Usually ships in 3-10 days

0

29

RedMax 646015142

HOLDER, CORD (RPLS -15141)
(Superseded to 515639501)

$11.99

$

In Stock, only 1 left!

0

30

RedMax 646015131

COVER (RPLS -15130)
(Superseded to 515639401)

$11.99

$

Usually ships in 3-10 days

0

31

RedMax 604199162

SPRING (RPLS -99161)
(Superseded to 515517001)

$9.99

$

Usually ships in 3-10 days

0

32

RedMax 646015180

CORD
(Superseded to 521472601)

$

$

Not available

33

RedMax 326815150

PLATE, LARGE
(Superseded to 520939401)

$

$

Not available

34

RedMax 326815170

PLATE, SMALL
(Superseded to 520939801)

$6.49

$

Usually ships in 3-10 days

0

35

RedMax 601913250

HOLDER (B)
(Superseded to 515511401)

$13.99

$

Usually ships in 3-10 days

0

36

RedMax T310212100

PIPE COMPLETE
(Superseded to 512529501)

$45.99

$

Usually ships in 3-10 days

0

37

RedMax T310212210

SHAFT
(Superseded to 521813601)

$28.99

$

Usually ships in 3-10 days

0

38

RedMax 603612241

JOINT, SHAFT (RPLS -12240)
(Superseded to 515512901)

$26.99

$

In Stock, only 2 left!

0

39

RedMax 603612250

SPACER
(Superseded to 515513001)

$9.49

$

Usually ships in 3-10 days

0

40

RedMax T310212510

PLATE, NAME (BC-EX)

$1.95

$

Usually ships in 3-10 days

0

41

RedMax 642512552

PLATE, CAUTION

$2.96

$

Usually ships in 3-10 days

0
