EXZ 2460S PH - RedMax Maxtreme Split-Boom Powerhead (SN: 00800101 & Above) (2010-09) 006 - HE-EX2 Parts Diagram

Maxtreme Split-Boom Powerhead

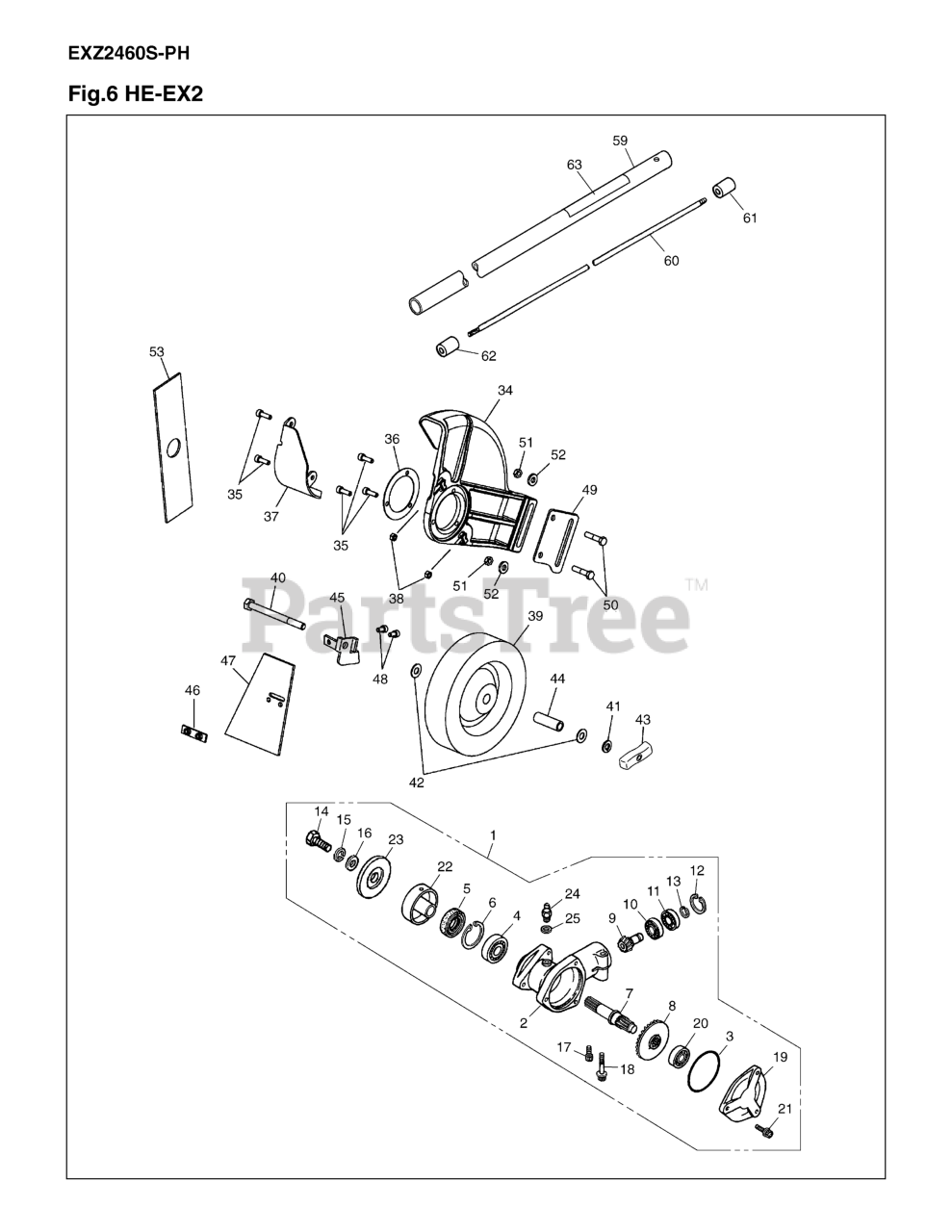

006 - HE-EX2 Parts Diagram

  • Title

1

RedMax 521452201

GEARCASE
(Superseded to 515589801)

$227.99

$

Usually ships in 3-10 days

0

2

RedMax 521452301

GEARCASE
(Superseded to 505168401)

$91.99

$

In Stock, only 2 left!

0

3

RedMax 521452701

O-RING
(Superseded to 505168501)

$

$

Not available

4

RedMax 516128201

BEARING

$

$

Not available

5

RedMax 520889801

SEAL, OIL
(Superseded to 505168701)

$6.49

$

In Stock, only 3 left!

0

6

RedMax 504121001

RING

$3.99

$

Usually ships in 3-10 days

0

7

RedMax 521178801

SHAFT, GEAR (-13
(Superseded to 514366401)

$22.99

$

Usually ships in 3-10 days

0

8

RedMax 521452501

GEAR

$

$

Not available

9

RedMax 521452601

PINION
(Superseded to 505169101)

$36.99

$

Usually ships in 3-10 days

0

10

RedMax 505169201

BEARING (RPLS T3

$9.99

$

In Stock, Qty 5

0

11

RedMax 505169301

BEARING

$8.99

$

In Stock, only 3 left!

0

12

RedMax 505169401

RING, SNAP, M24

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 520910501

RING, SNAP (RPLS
(Superseded to 505169501)

$3.49

$

Usually ships in 3-10 days

0

14

RedMax 521209901

BOLT, LH
(Superseded to 505169601)

$7.49

$

In Stock, only 4 left!

0

15

RedMax 520966501

WASHER (RPLS 318
(Superseded to 505169701)

$4.99

$

Usually ships in 3-10 days

0

16

RedMax 505169801

WASHER,M8x2.3(RP

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 516070401

BOLT, M5 x 12

$

$

Not available

18

RedMax 521171901

BOLT, M6 x 1.35
(Superseded to 506614901)

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 521452401

COVER
(Superseded to 505170101)

$14.99

$

In Stock, only 2 left!

0

20

RedMax 505170201

BEARING (RPLS 06

$9.99

$

In Stock, only 3 left!

0

21

RedMax 574081301

BOLT

$3.99

$

Usually ships in 3-10 days

0

22

RedMax 521179001

HOLDER (A)(RPLS
(Superseded to 514366601)

$20.99

$

In Stock, only 1 left!

0

23

RedMax 521179101

HOLDER (B)
(Superseded to 505171401)

$13.99

$

In Stock, only 2 left!

0

24

RedMax 520901801

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

25

RedMax 505171601

WASHER, M6 x .8

$3.99

$

Usually ships in 3-10 days

0

34

RedMax 510981001

Guard
(Superseded to 510981002)

$68.99

$

In Stock, only 1 left!

0

35

RedMax 505171801

BOLT (M5x0.8-16)

$7.49

$

In Stock, only 2 left!

0

36

RedMax 505171901

PLATE

$10.99

$

In Stock, only 1 left!

0

37

RedMax 526059401

PROTECTOR

$9.99

$

In Stock, Qty 20+

0

38

RedMax 516116401

NUT, M5 x 4
(Superseded to 506609201)

$4.99

$

In Stock, only 2 left!

0

39

RedMax 505172501

WHEEL (RPLS T305

$42.99

$

In Stock, only 2 left!

0

40

RedMax 574069801

BOLT
(Superseded to 505172601)

$4.99

$

In Stock, only 3 left!

0

41

RedMax 505172901

WASHER, SPRING(T

$4.99

$

In Stock, only 2 left!

0

42

RedMax 516078701

WASHER
(Superseded to 505173001)

$4.99

$

In Stock, Qty 5

0

43

RedMax 527068601

NUT

$15.99

$

In Stock, only 2 left!

0

44

RedMax 505173301

SLEEVE

$12.99

$

In Stock, Qty 6

0

45

RedMax 505173501

BRACKET

$10.99

$

In Stock, Qty 9

0

46

RedMax 505173601

PLATE

$7.49

$

In Stock, Qty 10

0

47

RedMax 505173701

RUBBER (FLAP)

$15.99

$

In Stock, Qty 13

0

48

RedMax 516070301

BOLT, M5 x 10
(Superseded to 505173901)

$4.99

$

In Stock, only 1 left!

0

49

RedMax 505174601

MAIN BRACKET

$10.99

$

Usually ships in 3-10 days

0

50

RedMax 574069701

BOLT
(Superseded to 505174701)

$4.99

$

In Stock, Qty 5

0

51

RedMax 505174801

NUT

$3.99

$

Usually ships in 3-10 days

0

52

RedMax 516078701

WASHER
(Superseded to 505173001)

$4.99

$

In Stock, Qty 5

0

53

RedMax 521453001

BLADE, EDGER (RP

$4.99

$

In Stock, Qty 20+

0

59

RedMax 521814001

PIPE COMPLETE
(Superseded to 512529701)

$43.99

$

Usually ships in 3-10 days

0

60

RedMax 521813601

SHAFT

$28.99

$

Usually ships in 3-10 days

0

61

RedMax 521402501

JOINT, SHAFT (RP
(Superseded to 515512901)

$26.99

$

In Stock, only 2 left!

0

62

RedMax 521402601

SPACER
(Superseded to 515513001)

$9.49

$

Usually ships in 3-10 days

0

63

RedMax 510986501

PLATE-NAME

$

$

Not available
