EXZ 2460S PH - RedMax Maxtreme Split-Boom Powerhead (SN: 00800101 & Above) (2010-09) 001 - PH-EXZ Parts Diagram

Maxtreme Split-Boom Powerhead

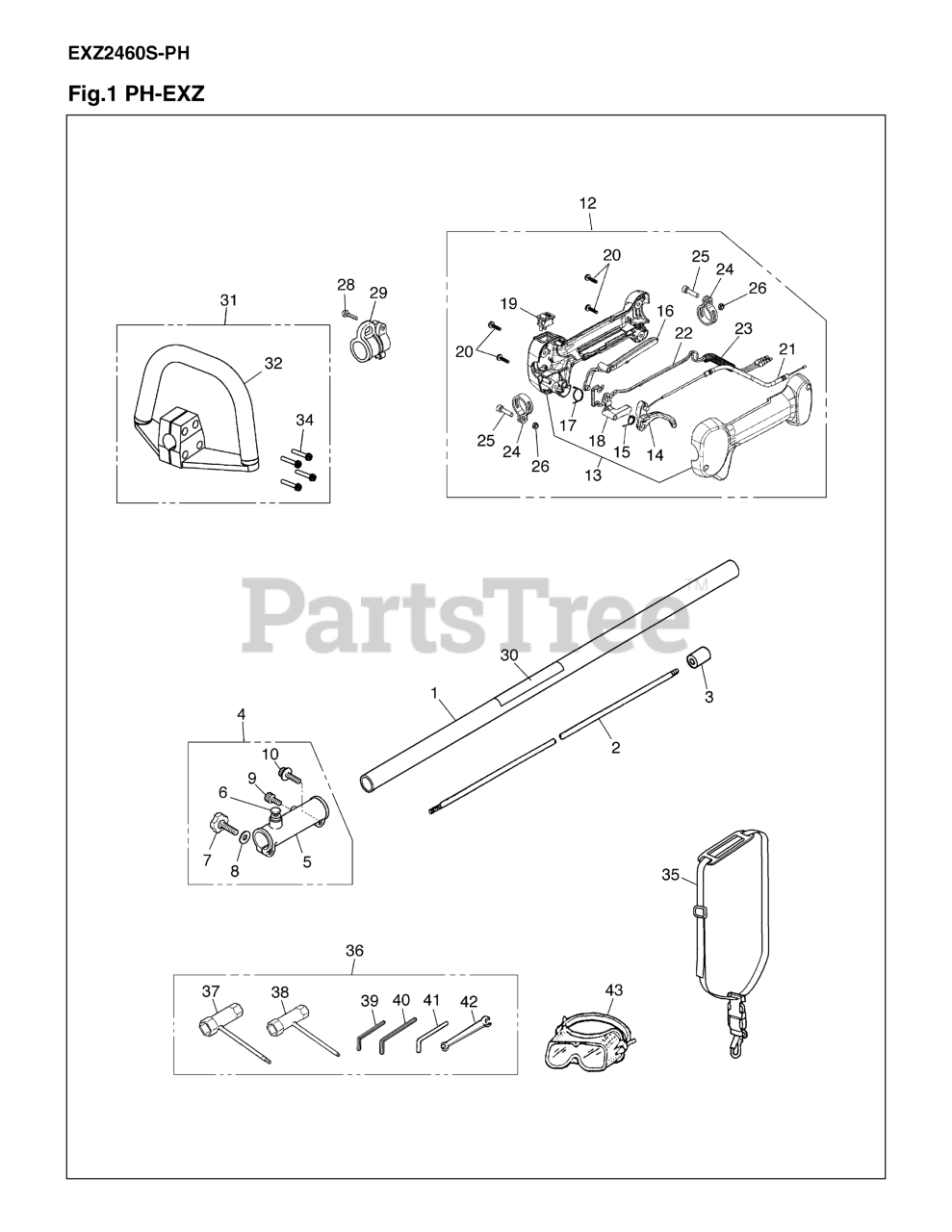

001 - PH-EXZ Parts Diagram

  • Title

1

RedMax 511521501

PIPE-C
(Superseded to 588677001)

$45.99

$

Usually ships in 3-10 days

0

2

RedMax 521811601

SHAFT

$31.99

$

Usually ships in 3-10 days

0

3

RedMax 521402601

SPACER
(Superseded to 515513001)

$9.49

$

Usually ships in 3-10 days

0

4

RedMax 576640001

JOINT ASSY
(Superseded to 576640002)

$121.99

$

Usually ships in 3-10 days

0

5

RedMax 521812401

JOINT
(Superseded to 580886001)

$27.99

$

Usually ships in 3-10 days

0

6

RedMax 521812501

STOPPER COMPLETE
(Superseded to 512527001)

$14.99

$

In Stock, only 1 left!

0

7

RedMax 521403001

BOLT, KNOB
(Superseded to 515513401)

$

$

Not available

8

RedMax 505169801

WASHER,M8x2.3(RP

$4.99

$

In Stock, only 1 left!

0

9

RedMax 521345301

BOLT
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0

10

RedMax 521862401

BOLT,TORX

$3.49

$

Usually ships in 3-10 days

0

12

RedMax 574390301

GRIP ASSY
(Superseded to 574390302)

$93.99

$

In Stock, only 1 left!

0

13

RedMax 576475201

GRIP, HALF SET
(Superseded to 576475202)

$31.99

$

In Stock, only 2 left!

0

14

RedMax 529258801

LEVER, THROTTLE

$4.99

$

Usually ships in 3-10 days

0

15

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 2 left!

0

16

RedMax 529259001

LEVER FOR GRIP (
(Superseded to 578778001)

$4.99

$

In Stock, only 1 left!

0

17

RedMax 574390801

SPRING

$3.49

$

Usually ships in 3-10 days

0

18

RedMax 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

19

RedMax 521851601

SWITCH

$11.99

$

In Stock, only 3 left!

0

20

RedMax 521517701

SCREW

$4.99

$

Usually ships in 3-10 days

0

21

RedMax 529257101

CABLE-C

$12.99

$

In Stock, only 2 left!

0

22

RedMax 529256101

CORD - C

$7.49

$

Usually ships in 3-10 days

0

23

RedMax 521805501

TUBE

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 529259401

BAND

$10.99

$

In Stock, only 1 left!

0

25

RedMax 521345401

BOLT (RPLS 28501
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

26

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

In Stock, only 1 left!

0

28

RedMax 521822101

HANGER COMP.

$

$

Not available

29

RedMax 516113301

SCREW, M5x20 (RP
(Superseded to 510482301)

$3.99

$

Usually ships in 3-10 days

0

30

RedMax 576669401

NAME PLATE

$

$

Not available

31

RedMax 526056401

HANDLE ASSY. (RP

$26.99

$

In Stock, only 3 left!

0

32

RedMax 512553501

HANDLE T

$

$

Not available

34

RedMax 521863101

SCREW

$3.49

$

In Stock, Qty 11

0

35

RedMax 521651101

STRAP ASSY

$15.99

$

In Stock, only 2 left!

0

36

RedMax 521532601

TOOL SET

$

$

Not available

37

RedMax 521533101

SOCKET
(Superseded to 521532701)

$12.99

$

Usually ships in 3-10 days

0

38

RedMax 521806401

SOCKET

$4.85

$

Usually ships in 3-10 days

0

39

RedMax 505311901

WRENCH

$

$

Not available

40

RedMax 516144701

WRENCH (TOOL)

$4.99

$

Usually ships in 3-10 days

0

41

RedMax 521176101

BAR
(Superseded to 505312001)

$3.49

$

Usually ships in 3-10 days

0

42

RedMax 521176201

SPANNER,8 x 10(R
(Superseded to 514363701)

$4.99

$

In Stock, Qty 10

0

43

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available
