EXZ 2401S LRT - RedMax Maxtreme Long Reach Trimmer (SN: 50100000 - 60099999) (2005-02) 004 - LRT ATTACHMANT Parts Diagram

Maxtreme Long Reach Trimmer

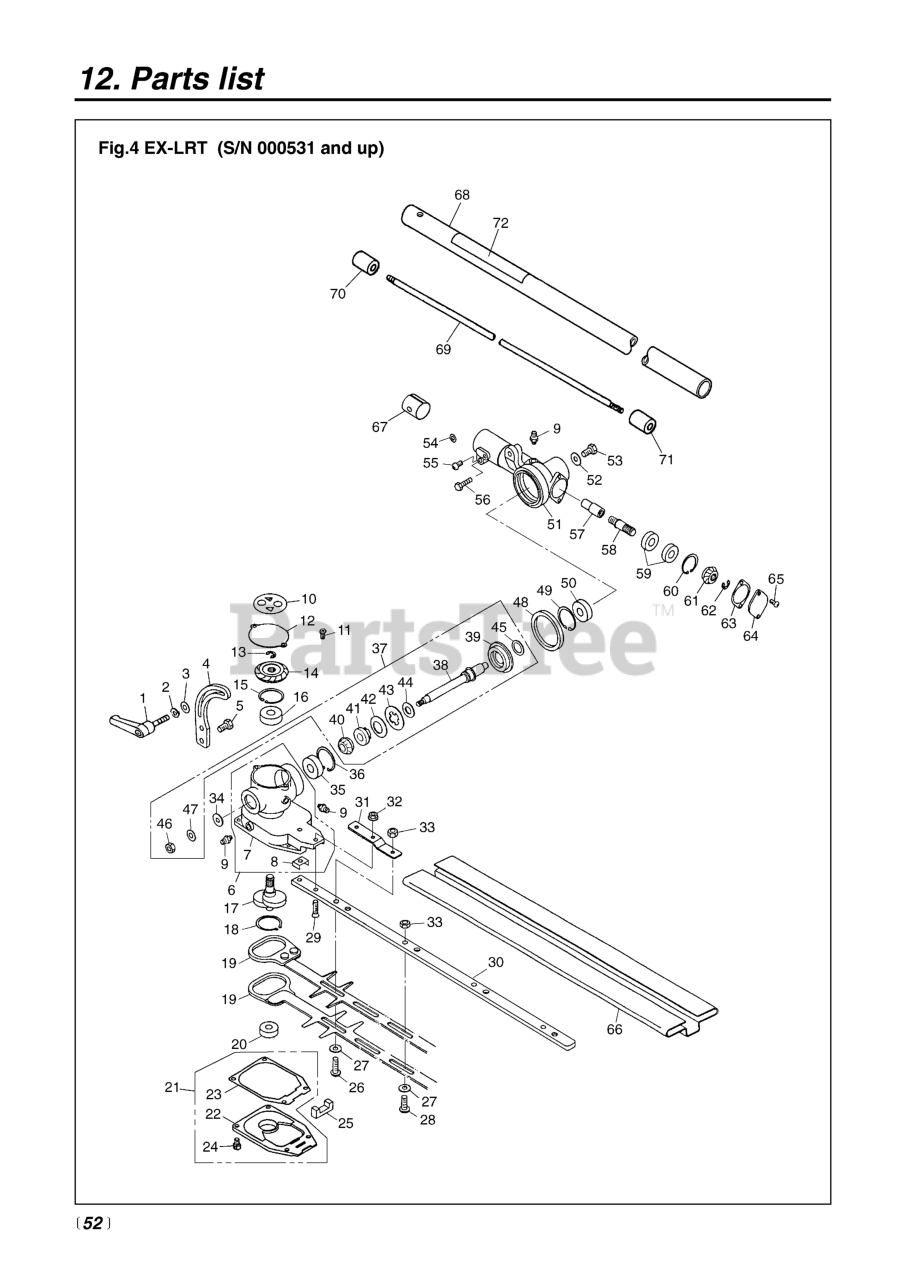

004 - LRT ATTACHMANT Parts Diagram

  • Title

1

RedMax 659813110

6598-13110-10

$

$

Not available

2

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

3

RedMax 678213650

WASHER, 6X15X2.0
(Superseded to 515698601)

$4.99

$

In Stock, only 2 left!

0

4

RedMax 678213141

PLATE (RPLS-13140)
(Superseded to 521501501)

$7.49

$

Usually ships in 3-10 days

0

5

RedMax 022510612

01010-80612
(Superseded to 516066601)

$3.49

$

Usually ships in 3-10 days

0

6

RedMax 678213200

CASING (RPLS -13210)
(Superseded to 521501601)

$148.99

$

In Stock, only 1 left!

0

7

CASING A

$

$

Not available

8

RedMax 678213220

PLATE
(Superseded to 515697101)

$6.99

$

In Stock, only 1 left!

0

9

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

10

RedMax 678213250

LABEL

$2.78

$

Usually ships in 3-10 days

0

11

RedMax 026310408

SCREW, M4 X 8
(Superseded to 516108701)

$

$

Not available

12

RedMax 659813320

COVER

$2.88

$

Usually ships in 3-10 days

0

13

RedMax 659813330

RING, SNAP
(Superseded to 515684601)

$4.99

$

In Stock, only 1 left!

0

14

RedMax 678213340

GEAR, BEVEL
(Superseded to 515697301)

$43.99

$

Usually ships in 3-10 days

0

15

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$4.99

$

In Stock, only 2 left!

0

16

RedMax 0600406000

BEARING
(Superseded to 516131201)

$18.99

$

Usually ships in 3-10 days

0

17

RedMax 678213370

CRANKSHAFT
(Superseded to 515697401)

$102.99

$

In Stock, only 1 left!

0

18

RedMax 0406402815

RING, SNAP, M28 X 1.5
(Superseded to 516124801)

$3.49

$

In Stock, Qty 6

0

19

RedMax 678213411

BLADE (RPLS -13410) 18
(Superseded to 515697701)

$91.99

$

Usually ships in 3-10 days

0

20

RedMax 678213430

BEARING
(Superseded to 516130201)

$18.99

$

Usually ships in 3-10 days

0

21

RedMax 678206010

COVER SET (RPLS -13440)
(Superseded to 521501201)

$30.99

$

Usually ships in 3-10 days

0

22

RedMax 678213441

COVER
(Superseded to 515698001)

$26.99

$

In Stock, only 1 left!

0

23

RedMax 678213470

GASKET
(Superseded to 515698301)

$5.99

$

In Stock, Qty 6

0

24

RedMax 678313450

BOLT (RPLS 6782-13450)
(Superseded to 515700201)

$4.99

$

Usually ships in 3-10 days

0

25

RedMax 678213460

FELT
(Superseded to 521502901)

$4.99

$

In Stock, Qty 5

0

26

RedMax 38841175010

SCREW (RPLS 3884-11750)

$

$

Not available

27

RedMax 388011780

WASHER (RPLS 3873-11760)
(Superseded to 515232001)

$4.99

$

In Stock, only 3 left!

0

28

RedMax 659813510

SCREW
(Superseded to 515685201)

$5.99

$

In Stock, Qty 5

0

29

RedMax 659813530

SCREW, M5 X 20
(Superseded to 515685401)

$4.99

$

In Stock, only 2 left!

0

30

RedMax 678213540

PLATE, GUIDE
(Superseded to 515698401)

$26.99

$

Usually ships in 3-10 days

0

31

RedMax 678213550

PLATE (RPLS 6780- )
(Superseded to 515698501)

$5.99

$

In Stock, Qty 5

0

32

RedMax 678214470

NUT, M5
(Superseded to 505182601)

$4.99

$

Usually ships in 3-10 days

0

33

RedMax 388011790

NUT, M6
(Superseded to 515232101)

$4.99

$

In Stock, only 3 left!

0

34

RedMax 678213650

WASHER, 6X15X2.0
(Superseded to 515698601)

$4.99

$

In Stock, only 2 left!

0

35

RedMax 659813430

BEARING
(Superseded to 515684901)

$17.99

$

Usually ships in 3-10 days

0

36

RedMax 0406502212

RING, SNAP, M22 x 1.2

$0.43

$

Usually ships in 3-10 days

0

37

RedMax T400806010

KIT, SHAFT (RPLS 6782-13610)
(Superseded to 521830201)

$136.99

$

Usually ships in 3-10 days

0

38

SHAFT

$

$

Not available

39

GEAR

$

$

Not available

40

RedMax T400813630

GEAR (C)
(Superseded to 521830401)

$31.99

$

In Stock, only 1 left!

0

41

PUMP, DIAPHRAM

$

$

Not available

42

RedMax T400813650

WASHER, SPRING
(Superseded to 521830501)

$5.99

$

Usually ships in 3-10 days

0

43

RedMax T400813660

PLATE
(Superseded to 521830601)

$5.99

$

Usually ships in 3-10 days

0

44

RedMax T400813670

WASHER
(Superseded to 521830701)

$4.99

$

Usually ships in 3-10 days

0

45

RedMax T400813680

WASHER
(Superseded to 521830801)

$

$

Not available

46

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

47

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

48

RedMax 659813620

O-RING
(Superseded to 515685801)

$4.99

$

Usually ships in 3-10 days

0

49

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$4.99

$

In Stock, only 2 left!

0

50

RedMax 0600406000

BEARING
(Superseded to 516131201)

$18.99

$

Usually ships in 3-10 days

0

51

RedMax 678213710

CASING
(Superseded to 521503501)

$121.99

$

Usually ships in 3-10 days

0

52

RedMax 678213650

WASHER, 6X15X2.0
(Superseded to 515698601)

$4.99

$

In Stock, only 2 left!

0

53

RedMax 022510612

01010-80612
(Superseded to 516066601)

$3.49

$

Usually ships in 3-10 days

0

54

RedMax 678213720

WASHER
(Superseded to 515698801)

$2.49

$

In Stock, only 4 left!

0

55

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$4.99

$

In Stock, only 1 left!

0

56

RedMax 335021320

BOLT
(Superseded to 521049801)

$3.49

$

Usually ships in 3-10 days

0

57

RedMax 678213810

JOINT (REPLACES T3078-13810)
(Superseded to 515698901)

$20.99

$

In Stock, only 1 left!

0

58

RedMax 659813820

SHAFT, GEAR
(Superseded to 515686101)

$56.99

$

In Stock, only 1 left!

0

59

RedMax 678213830

BEARING
(Superseded to 515699001)

$26.99

$

Usually ships in 3-10 days

0

60

RedMax 0406502212

RING, SNAP, M22 x 1.2

$0.43

$

Usually ships in 3-10 days

0

61

RedMax 678213850

GEAR, BEVEL
(Superseded to 515699101)

$28.99

$

In Stock, only 1 left!

0

62

RedMax 659813330

RING, SNAP
(Superseded to 515684601)

$4.99

$

In Stock, only 1 left!

0

63

RedMax 659813860

PACKING
(Superseded to 515686401)

$7.99

$

Usually ships in 3-10 days

0

64

RedMax 659813871

COVER

$3.21

$

Usually ships in 3-10 days

0

65

RedMax 026310410

SCREW, M4 X 10
(Superseded to 510475001)

$4.99

$

In Stock, only 4 left!

0

66

RedMax 678213910

COVER, BLADE
(Superseded to 515699201)

$6.99

$

In Stock, only 2 left!

0

67

RedMax 636713990

848-A20-61Z1
(Superseded to 521535601)

$12.99

$

Usually ships in 3-10 days

0

68

RedMax T310212100

PIPE COMPLETE
(Superseded to 512529501)

$45.99

$

Usually ships in 3-10 days

0

69

RedMax T310212210

SHAFT
(Superseded to 521813601)

$28.99

$

Usually ships in 3-10 days

0

70

RedMax 603612241

JOINT, SHAFT (RPLS -12240)
(Superseded to 515512901)

$26.99

$

In Stock, only 2 left!

0

71

RedMax 603612250

SPACER
(Superseded to 515513001)

$9.49

$

Usually ships in 3-10 days

0

72

RedMax 848A2H90R3

NAMEPLATE

$

$

Not available
