EXW171S A (EB5) - Honda Generator, Made in Japan (SN: EB5-1000001 - EB5-9999999) FUEL TANK Parts Diagram

Generator, Made in Japan

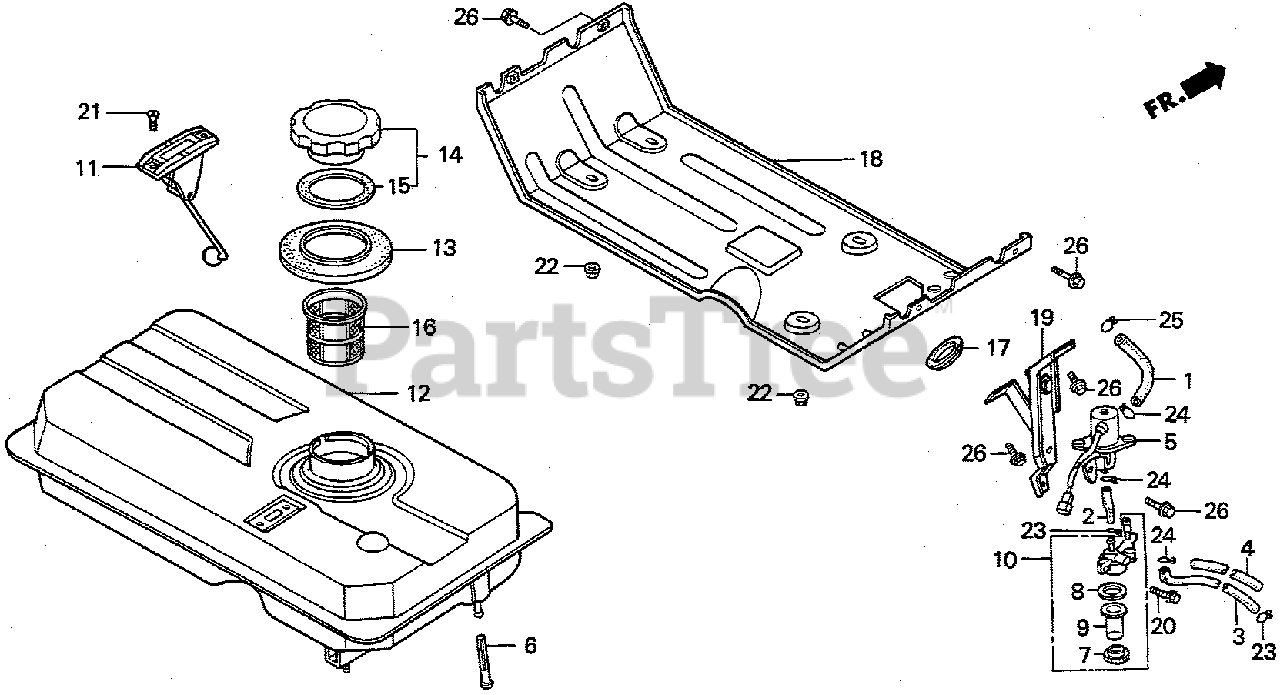

FUEL TANK Parts Diagram

  • Title

1

Honda 16851-ZB7-000

TUBE, FUEL (TANK-VALVE)

$10.99

$

Usually ships in 3-6 days

0

2

Honda 16852-ZB7-000

TUBE, FUEL (VALVE-STRAINER)

$5.49

$

Usually ships in 3-6 days

0

3

Honda 16853-ZB7-000

TUBE, FUEL (STRAINER-CARBURETOR)

$10.99

$

Usually ships in 3-6 days

0

4

Honda 16857-ZB7-000

TUBE, FUEL SUPPORTER

$13.99

$

Usually ships in 3-6 days

0

5

Honda 16930-ZB7-013

VALVE ASSY., ELECTRIC FUEL

$162.99

$

Usually ships in 3-6 days

0

6

Honda 16952-ZB7-000

FILTER, FUEL

$14.99

$

Usually ships in 3-6 days

0

7

Honda 16957-707-005

NUT, RING

$11.99

$

Usually ships in 3-6 days

0

8

Honda 16963-443-901

GASKET

$12.99

$

Usually ships in 3-6 days

0

9

Honda 16967-196-005

SEE PART DETAILS - SUP; CUP, FUEL STRAINER
(Superseded to 16967-ZB8-005)

$34.99

$

Usually ships in 3-6 days

0

10

Honda 16990-ZB7-005

CUP ASSY., FUEL STRAINER

$72.99

$

Usually ships in 3-6 days

0

11

Honda 17505-ZB2-003

SEE PART DETAILS - SUP; METER ASSY., FUEL
(Superseded to 17505-ZB2-013)

$28.99

$

In Stock, only 2 left!

0

12

Honda 17510-ZB7-000

TANK, FUEL

$418.99

$

Usually ships in 3-6 days

0

13

Honda 17520-ZA0-800

SEAL, FUEL FILLER NECK

$25.99

$

Usually ships in 3-6 days

0

14

Honda 17620-899-013

SEE PART DETAILS - PRI; CAP, FUEL TANK
(Superseded to 17620-899-023)

$44.99

$

In Stock, only 2 left!

0

15

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$8.99

$

In Stock, Qty 12

0

15

Honda 17631-958-680

SEE PART DETAILS - SUP; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-000)

$8.99

$

Usually ships in 3-6 days

0

16

Honda 17670-899-000

FILTER, FUEL

$22.99

$

In Stock, only 2 left!

0

17

Honda 32112-611-000

GROMMET, WIRE

$

$

Not available

18

Honda 63125-ZB7-000

PLATE, FUEL TANK HANGER

$364.99

$

Usually ships in 3-6 days

0

19

Honda 63132-ZB7-000

BRACKET, STRAINER CUP SETTING

$48.99

$

Usually ships in 3-6 days

0

20

Honda 90007-892-000

BOLT, FLANGE (5X12)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$1.49

$

In Stock, Qty 8

0

22

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

23

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

24

Honda 95002-02100

CLIP, TUBE (B10)

$2.99

$

In Stock, Qty 14

0

25

Honda 95002-02120

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

$2.99

$

In Stock, only 2 left!

0

26

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
