EXW171S A (EB5) - Honda Generator, Made in Japan (SN: EB5-1000001 - EB5-9999999) FAN COVER Parts Diagram

Generator, Made in Japan

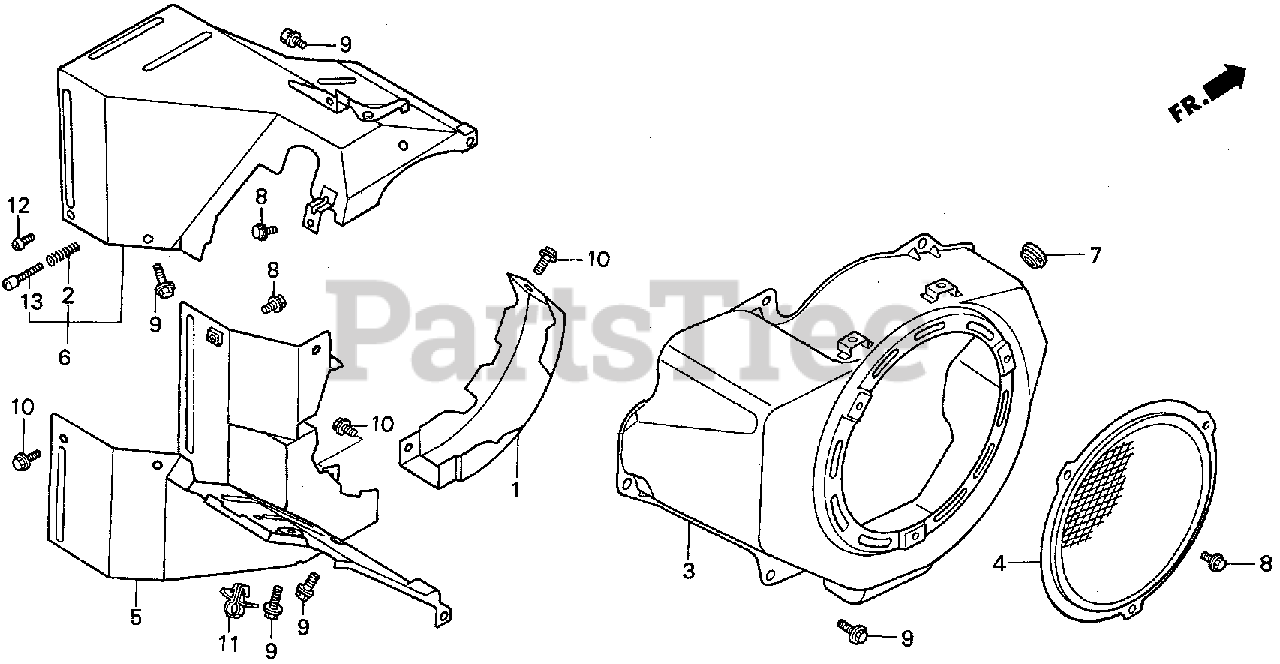

FAN COVER Parts Diagram

  • Title

1

Honda 11315-ZB8-000

SCROLL, ALTERNATOR FAN

$

$

Not available

2

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$5.49

$

In Stock, Qty 6

0

3

Honda 19610-ZB8-000

COVER, FAN

$133.99

$

Usually ships in 3-6 days

0

4

Honda 19620-ZE3-810

SEE PART DETAILS - SUP; PROTECTOR, FAN COVER

$

$

Not available

5

Honda 19630-ZB8-000

SHROUD (LOWER)

$

$

Not available

6

Honda 19640-ZB8-000

SHROUD ASSY. (UPPER)

$

$

Not available

7

Honda 81329-567-020

GROMMET, DRAIN HOLE

$5.99

$

Usually ships in 3-6 days

0

8

Honda 90011-ZG0-000

BOLT, FLANGE (6X8)
(Superseded to 95701-06008-00)

Note: Use up to Engine SN 1115817.

$4.49

$

In Stock, Qty 20+

0

8

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: Use from Engine SN 1115818.

$4.49

$

In Stock, Qty 20+

0

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 15

0

10

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90654-SA4-003

CLIP, WIRE HARNESS (6MM) (WHITE)

$0.99

$

In Stock, Qty 8

0

12

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 8

0

13

Honda 93500-05032-0A

SCREW, PAN (5X32)

$1.49

$

Usually ships in 3-6 days

0
