EXS-20KO - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 080000 - 089999) (1993) Ignition 2 Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

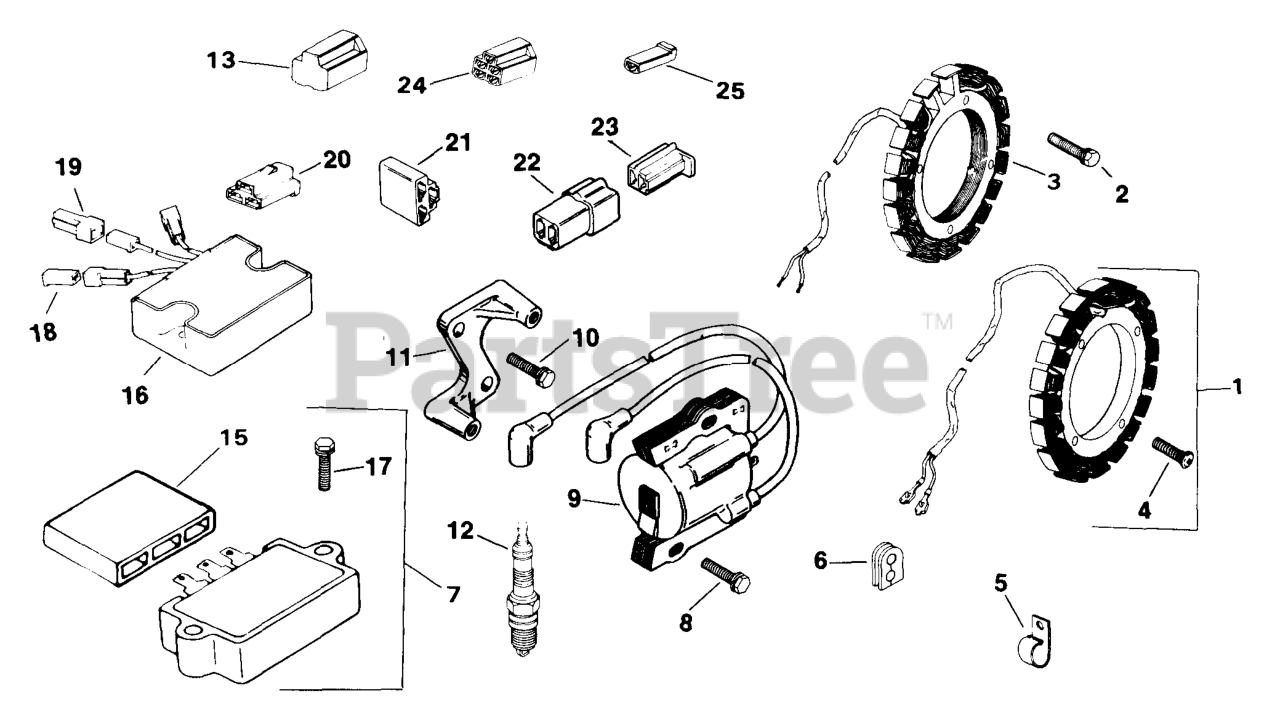

Ignition 2 Parts Diagram

  • Title

1

Exmark 237878-S

Kit, Stator (15 Amp)

Note: Includes 4 and terminal 25 452 01-S

$

$

Currently unavailable

2

Exmark X-67-51-S

Screw, Hex. Wash. Hd. 10-24x3/4"

$

$

Currently unavailable

6

Exmark 5231302-S

Grommet

$

$

Currently unavailable

7

Exmark 2575503-S

Kit, Rectifier-Regulator, 15 Amp

Note: Includes 17

$

$

Currently unavailable

8

Exmark 2508615-S

Screw, Hex. Wash. Hd. 1/4-20x1"

$

$

Currently unavailable

9

Exmark 5258402-S

Module

$

$

Currently unavailable

10

Exmark 2508616-S

Screw, Hex. Wash. Hd. 1/4-20x1"

$

$

Currently unavailable

11

Exmark 5212608-S

Bracket, Module

$

$

Currently unavailable

12

Exmark 5113202

Spark Plug (Rv15yc)

$

$

Currently unavailable

15

Exmark 236602-S

Connector, Female (3 Contact)

$

$

Currently unavailable

17

Exmark X-132-5-S

Screw, H.C. Sems 1/4-20x5/8"

$

$

Currently unavailable

21

Exmark 236473-S

Connector, Female (3 Contact)

$

$

Currently unavailable

Exmark 2551805-S

Lead, Black, Rectifier-Regulator

Note: (5" - 14 gauge - uninsulated push on tab terminals) (Not Illustrated)

$

$

Currently unavailable

Exmark 5251817-S

Lead, White, Module To Connector

Note: (12-1/2" - 14 gauge - insulated push on tab - uninsulated push on tab) (Not Illustrated)

$

$

Currently unavailable

Exmark 2545201-S

Terminal

Note: (Not Illustrated)

$

$

Currently unavailable
