EXS-20KO - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 080000 - 089999) (1993) Grass Catcher Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

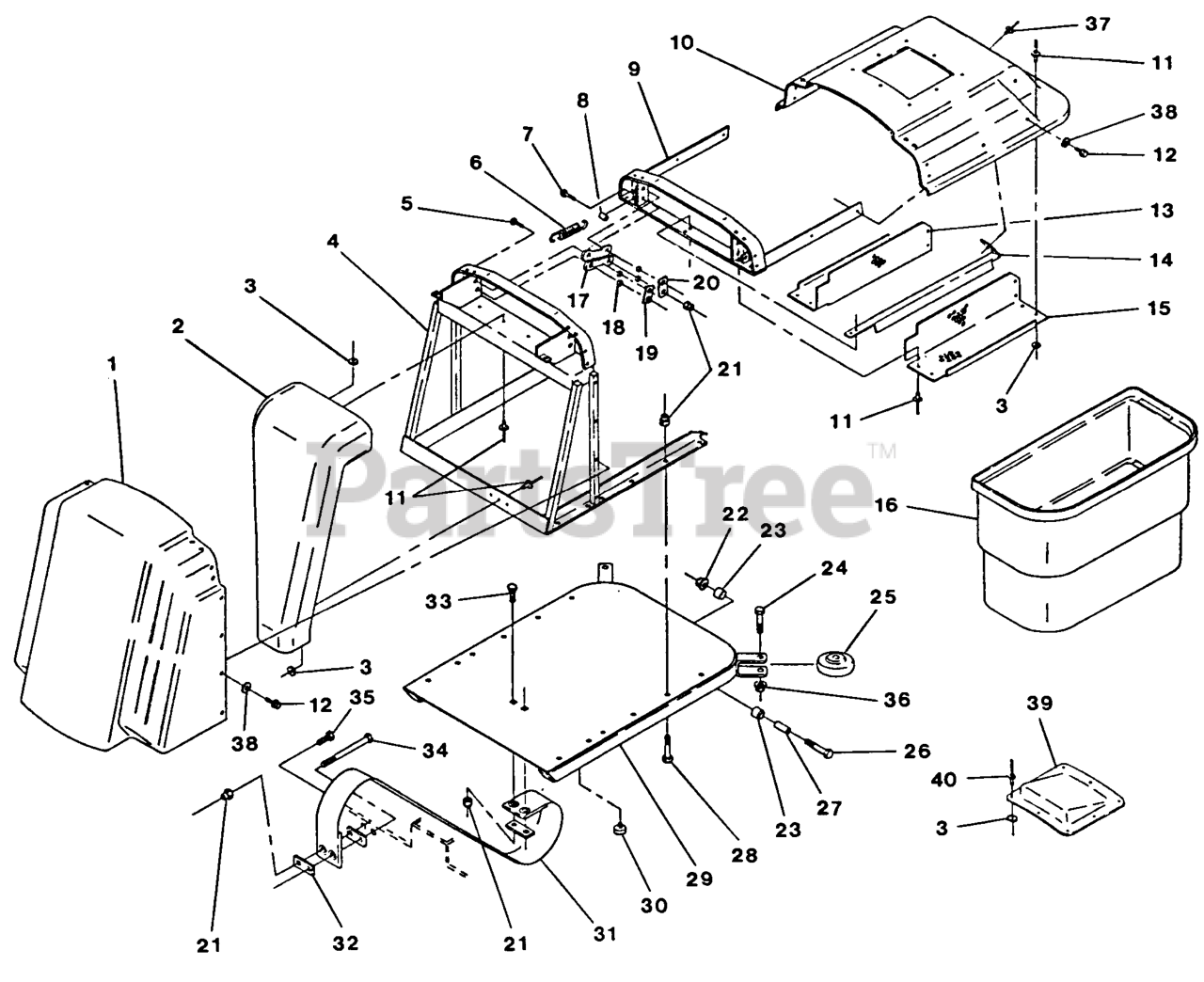

Grass Catcher Parts Diagram

  • Title

1

Exmark 1-513674

DISCONTINUED

$

$

Not available

2

Exmark 1-512784

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-513595

1-512784
(Superseded to 1-512784)

$

$

Not available

Exmark 1-513777

DEFLECTOR,GRASS CHUTE

Note: (Not Shown)

$25.99

$

In Stock, only 1 left!

0

3

Exmark 1-805507

3256-63
(Superseded to 3256-63)

$1.49

$

In Stock, only 2 left!

0

4

Exmark 1-512612-03

DISCONTINUED

$

$

Not available

5

Exmark 1-800254

321-6
(Superseded to 321-6)

$0.99

$

In Stock, Qty 10

0

6

Exmark 1-513608

SPRING,CATCHER LID

$22.99

$

Usually ships in 3-6 days

0

7

Exmark 1-800258

321-11
(Superseded to 321-11)

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-513669

BUSHING,LID SPRING

$9.49

$

Usually ships in 3-6 days

0

9

Exmark 1-512623-03

DISCONTINUED

$

$

Not available

10

Exmark 1-513675

TOP,GRASS CATCHER

$808.99

$

Usually ships in 3-6 days

0

11

Exmark 1-803012

9237964
(Superseded to 9237964)

$1.49

$

In Stock, Qty 8

0

12

Exmark 1-803036

32144-23
(Superseded to 32144-23)

$

$

Not available

13

Exmark 1-513616-03

SCREEN,PERFORATED RH PNT

$

$

Not available

14

Exmark 1-513670

DISCONTINUED

$

$

Not available

15

Exmark 1-513614-03

SCREEN,PERFORATED LH PNT

$

$

Not available

16

Exmark 1-513594

DISCONTINUED

$

$

Not available

17

Exmark 1-513610

LINK,HINGE PLTD

$61.99

$

Usually ships in 3-6 days

0

18

Exmark 1-513664

DISCONTINUED (EXMARK)

$

$

Not available

19

Exmark 1-513782

DISCONTINUED

$

$

Not available

20

Exmark 1-513780

DISCONTINUED

$

$

Not available

21

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

22

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

23

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

24

Exmark 1-800298

323-12
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

25

Exmark 1-513407

WHEEL,RUBBER

$

$

Not available

26

Exmark 1-800300

323-14
(Superseded to 323-14)

$4.49

$

In Stock, Qty 20+

0

27

Exmark 1-513385

BUSHING,BOX PIVOT

$26.99

$

Usually ships in 3-6 days

0

28

Exmark 1-800258

321-11
(Superseded to 321-11)

$0.99

$

In Stock, Qty 20+

0

29

Exmark 1-512603-03

DISCONTINUED (EXMARK)

$

$

Not available

30

Exmark 1-513658

BUMPER

$6.99

$

In Stock, Qty 20+

0

31

Exmark 1-513503

STRAP,BOX RESTRAINT

$

$

Not available

32

Exmark 1-513502

CLAMP,STRAP

$7.99

$

Usually ships in 3-6 days

0

33

Exmark 1-807514

Bolt, Carriage 1/4-20 X 1

$

$

Currently unavailable

34

Exmark 1-800267

DISCONTINUED (EXMARK)

$

$

Not available

35

Exmark 1-800255

321-8
(Superseded to 321-8)

$4.49

$

In Stock, Qty 15

0

36

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

37

Exmark 1-803010

Pop Rivet, Steel 3/16 X .250
(Superseded to 3269-3)

$0.99

$

In Stock, only 4 left!

0

38

Exmark 1-805254

3256-16
(Superseded to 3256-16)

$0.99

$

In Stock, Qty 11

0

39

Exmark 1-513897

WINDOW,GRASS CATCHER

$

$

Not available

40

Exmark 1-803006

DISCONTINUED (EXMARK)

$

$

Not available
