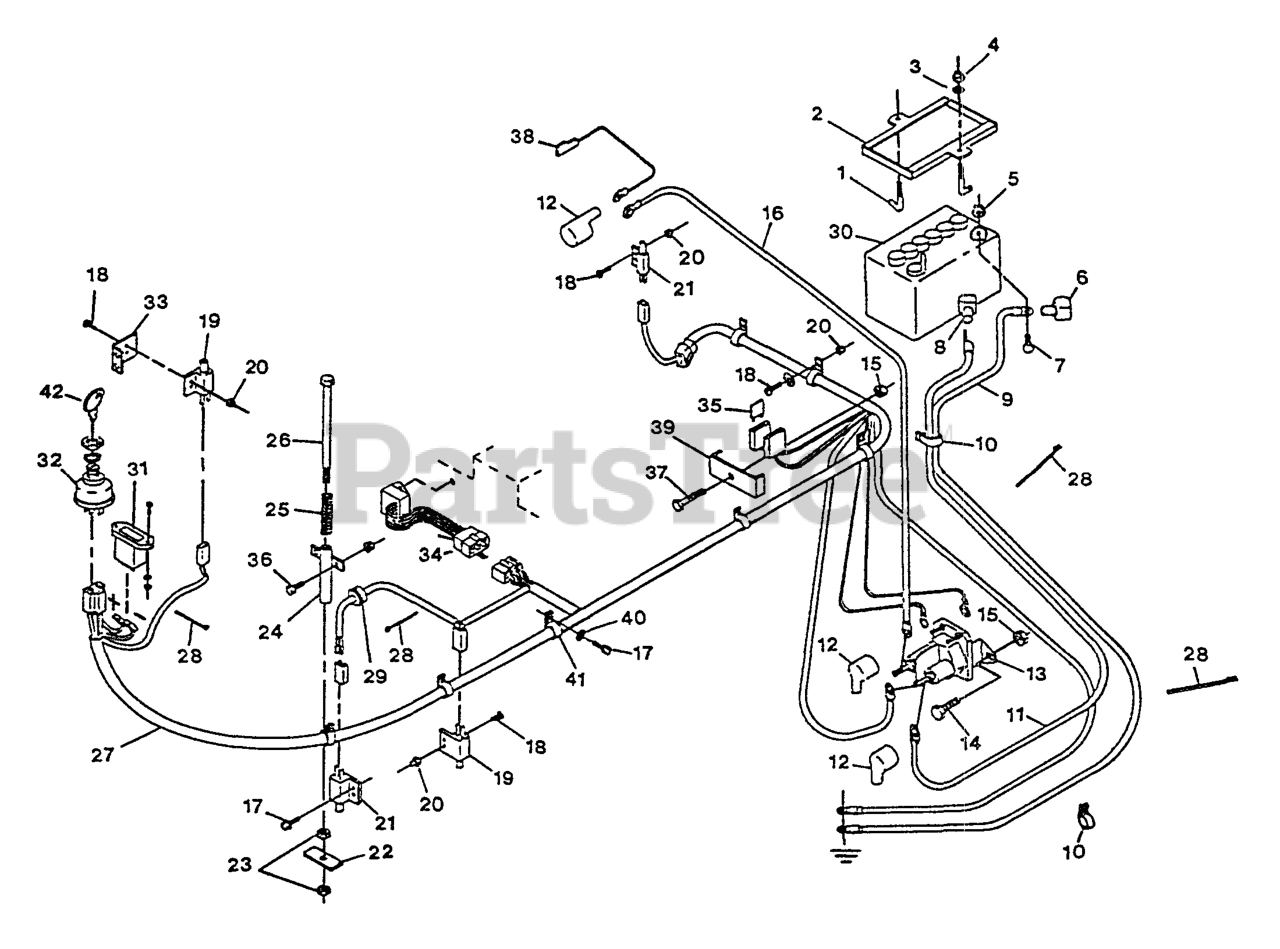

EXS-20KC - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 115000 - 129999) (1996) Electrical Group Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

Electrical Group Parts Diagram

  • Title

1

Exmark 1-513370

BOLT,HOLDDOWN

$14.99

$

Usually ships in 3-6 days

0

2

Exmark 1-512320-03

WLD,HOLDDOWN BATTERY

$

$

Not available

3

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

4

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

6

Exmark 1-543390

INSULATOR, BATTERY -

$8.49

$

Usually ships in 3-6 days

0

7

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

9

Exmark 1-523282

DISCONTINUED

$

$

Not available

10

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

11

Exmark 1-523279

109-7608
(Superseded to 109-7608)

$44.99

$

Usually ships in 3-6 days

0

12

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

13

Exmark 1-513075

117-1197
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

14

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

15

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

16

Exmark 1-523281

109-7630
(Superseded to 109-7630)

$43.99

$

In Stock, only 2 left!

0

17

Exmark 1-802002

SCREW

$

$

Not available

18

Exmark 1-801039

3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

19

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

20

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

21

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 16

0

22

Exmark 1-513180

PLATE-SWITCH, SEAT

$17.99

$

In Stock, only 3 left!

0

23

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-522424-03

MOUNT-SPRING, SEAT

$37.99

$

Usually ships in 3-6 days

0

25

Exmark 1-523415

SPRING-SWITCH, SEAT

$33.99

$

In Stock, only 1 left!

0

26

Exmark 1-800282

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

27

Exmark 1-523426

WIRHRNS,EXPLORER

$

$

Not available

28

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

29

Exmark 1-513765

GROMMET,.38 HOLE

$1.49

$

Usually ships in 3-6 days

0

30

Exmark 1-513002

DISCONTINUED (EXMARK)

$

$

Not available

31

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

32

Exmark 1-543070

SWITCH,IGNITION

$44.99

$

In Stock, Qty 20+

0

33

Exmark 1-513534

BRACKET,PTO SWITCH MOUNT

$24.99

$

Usually ships in 3-6 days

0

34

Exmark 1-543316

MODULE,OPC

$189.99

$

In Stock, only 1 left!

0

35

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

36

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

37

Exmark 1-800256

321-9
(Superseded to 321-9)

$4.99

$

In Stock, only 2 left!

0

38

Exmark 1-543084

DISCONTINUED

$

$

Not available

39

Exmark 1-603434

CLIP-FUSE BLOCK PLTD

$17.99

$

Usually ships in 3-6 days

0

40

Exmark 1-805254

3256-16
(Superseded to 3256-16)

$0.99

$

In Stock, Qty 14

0

41

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

42

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0
