EXS-20KC - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 102000 - 114999) (1995) Utility, Primary & Secondary Transfer Group Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

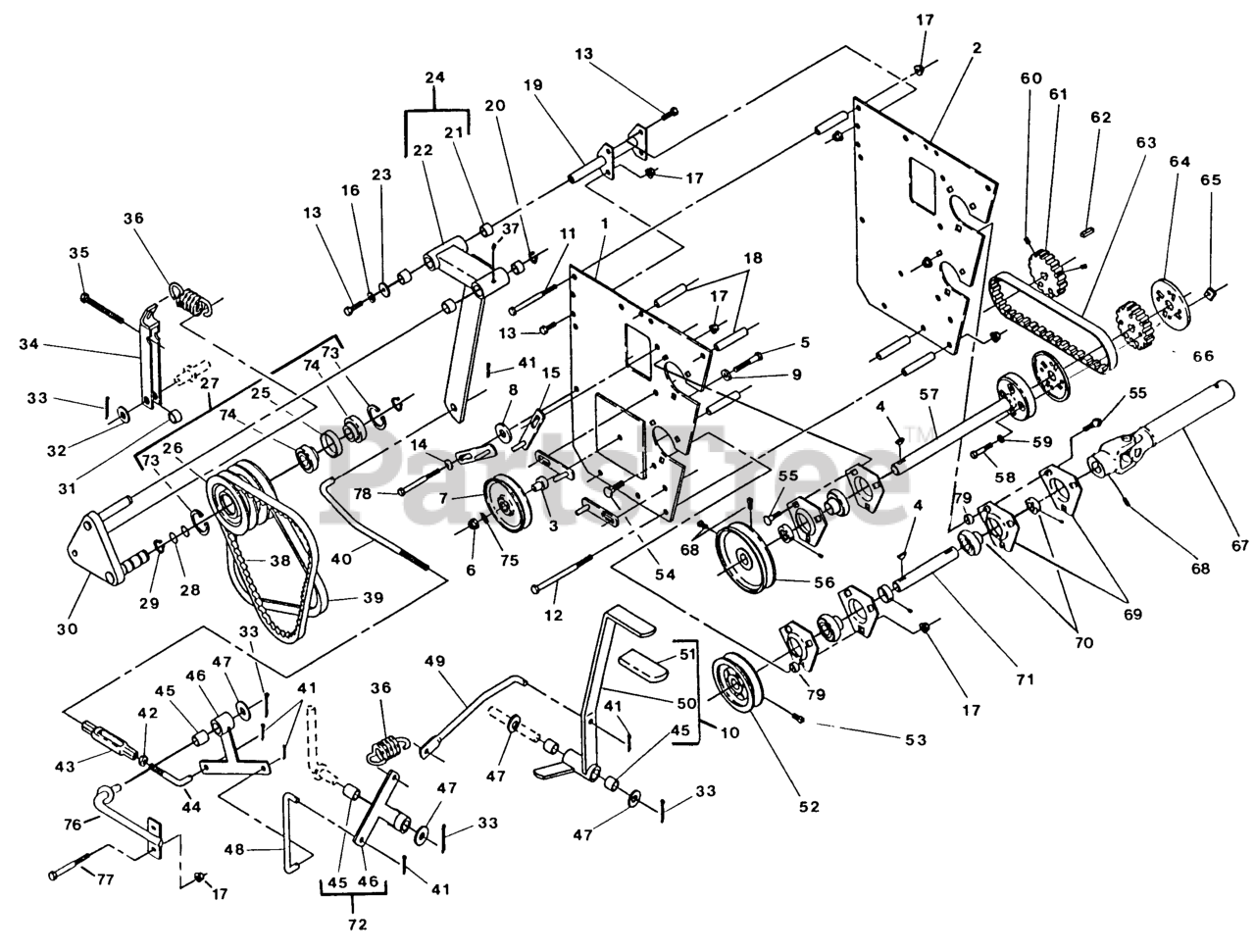

Utility, Primary & Secondary Transfer Group Parts Diagram

  • Title

1

Exmark 1-522365-03

DISCONTINUED (EXMARK)

$

$

Not available

2

Exmark 1-523363-03

PANEL,POWER TRAIN PNTD

$237.99

$

Usually ships in 3-6 days

0

3

Exmark 1-523114

DISCONTINUED (EXMARK)

$

$

Not available

4

Exmark 1-807014

KEY-WOODRUFF

$3.49

$

Usually ships in 3-6 days

0

5

Exmark 1-800297

323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

6

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

7

Exmark 1-523116

DISCONTINUED

$

$

Not available

8

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

9

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

10

Exmark 1-512706

DISCONTINUED

$

$

Not available

11

Exmark 1-800285

322-29
(Superseded to 322-29)

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 1-800286

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

13

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

14

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

15

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

16

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

17

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

18

Exmark 1-513110

DISCONTINUED (EXMARK)

$

$

Not available

19

Exmark 1-512082-03

DISCONTINUED (EXMARK)

$

$

Not available

20

Exmark 1-808511

32120-72
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

21

Exmark 1-513588

DISCONTINUED

$

$

Not available

22

Exmark 1-512120

Control Wldm't - Tmfr. Sheave

$

$

Currently unavailable

23

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

24

Exmark 1-512727

CNTRL ASSY,TRANS SHV

$534.99

$

Usually ships in 3-6 days

0

25

Exmark 1-513028

SPACER,TRANSFER BEARING

$19.99

$

Usually ships in 3-6 days

0

26

Exmark 1-513092

1-512591
(Superseded to 1-512591)

$

$

Not available

27

Exmark 1-512591

DISCONTINUED (EXMARK)

$

$

Not available

28

Exmark 1-513689

O-RING,

$1.49

$

In Stock, Qty 5

0

29

Exmark 1-808504

1-808521
(Superseded to 1-808521)

$1.49

$

In Stock, only 2 left!

0

30

Exmark 1-512096-03

DISCONTINUED (EXMARK)

$

$

Not available

31

Exmark 1-513566

DISCONTINUED (EXMARK)

$

$

Not available

32

Exmark 1-805263

3256-26
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

33

Exmark 1-806762

3272-11
(Superseded to 3272-11)

$1.49

$

In Stock, Qty 5

0

34

Exmark 1-512570-03

DISCONTINUED (EXMARK)

$

$

Not available

35

Exmark 1-800032

99-8664
(Superseded to 99-8664)

$2.99

$

In Stock, Qty 5

0

36

Exmark 1-513113

SPRING,BELT TENSION

$19.99

$

In Stock, only 3 left!

0

37

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 8

0

38

Exmark 1-523413

BELT,PRIMARY DRIVE

$

$

Not available

39

Exmark 1-513037

BELT,SECONDARY DRIVE

$35.99

$

Usually ships in 3-6 days

0

40

Exmark 1-513540

ROD,PTO LOW RH THD

$25.99

$

Usually ships in 3-6 days

0

41

Exmark 1-806761

3272-10
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

42

Exmark 1-804761

DISCONTINUED (EXMARK)

$

$

Not available

43

Exmark 1-513705

DISCONTINUED

$

$

Not available

44

Exmark 1-513703

ROD,PTO RH LOW LH THD

$

$

Not available

45

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

46

Exmark 1-512261

1-512707
(Superseded to 1-512707)

$

$

Not available

47

Exmark 1-805267

3256-27
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 5

0

48

Exmark 1-513586

DISCONTINUED

$

$

Not available

49

Exmark 1-513530

ROD,PTO UPPER

$25.99

$

Usually ships in 3-6 days

0

50

Exmark 1-512241

1-512706
(Superseded to 1-512706)

$

$

Not available

51

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

52

Exmark 1-513059

SHEAVE,5.5 B

$

$

Not available

53

Exmark 1-803022

SCREW-SET

Note: Use Pro-lock nut type (P/N 84022, .5 mm tube) on set screws

$2.99

$

In Stock, Qty 20+

0

54

Exmark 1-807506

3230-22
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

55

Exmark 1-807503

3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

56

Exmark 1-523414

DISCONTINUED

$

$

Not available

57

Exmark 1-513020

DISCONTINUED

$

$

Not available

58

Exmark 1-800257

321-10
(Superseded to 321-10)

$1.49

$

In Stock, Qty 20+

0

59

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

60

Exmark 1-803313

DISCONTINUED (EXMARK)

Note: Use Pro-lock nut type (P/N 84022, .5 mm tube) on set screws

$

$

Not available

61

Exmark 1-513210

DISCONTINUED

$

$

Not available

62

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

63

Exmark 1-513079

BELT,DRIVE POSITIVE

$29.99

$

In Stock, only 4 left!

0

64

Exmark 1-513221

DISCONTINUED (EXMARK)

$

$

Not available

65

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

66

Exmark 1-513209

DISCONTINUED

$

$

Not available

67

Exmark 1-513195-03

1-513195
(Superseded to 1-513195)

$

$

Not available

68

Exmark 1-803049

DISCONTINUED (EXMARK)

Note: Use Pro-lock nut type (P/N 84022, .5 mm tube) on set screws

$

$

Not available

69

Exmark 1-513013

HOUSING-FLANGE

$5.49

$

Usually ships in 3-6 days

0

70

Exmark 1-513012

BEARING,W/COLLAR

$121.99

$

In Stock, Qty 9

0

71

Exmark 1-523331

DISCONTINUED

$

$

Not available

72

Exmark 1-512707

DISCONTINUED (EXMARK)

$

$

Not available

73

Exmark 1-808502

32120-8
(Superseded to 32120-8)

$2.99

$

In Stock, Qty 16

0

74

Exmark 1-513016

BEARING

Note: (flat O.D. w/o clr.)

$82.99

$

In Stock, Qty 20+

0

75

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

76

Exmark 1-522343-03

WLD,BELLCRANK SUPPORT

$

$

Not available

77

Exmark 1-800276

322-9
(Superseded to 322-9)

$3.49

$

In Stock, only 3 left!

0

78

Exmark 1-800280

DISCONTINUED (EXMARK)

$

$

Not available

79

Exmark 1-523352

DISCONTINUED

$

$

Not available
