EXS-20KC - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 090000 - 101999) (1994) 60" Side Discharge Mower Deck & Support Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

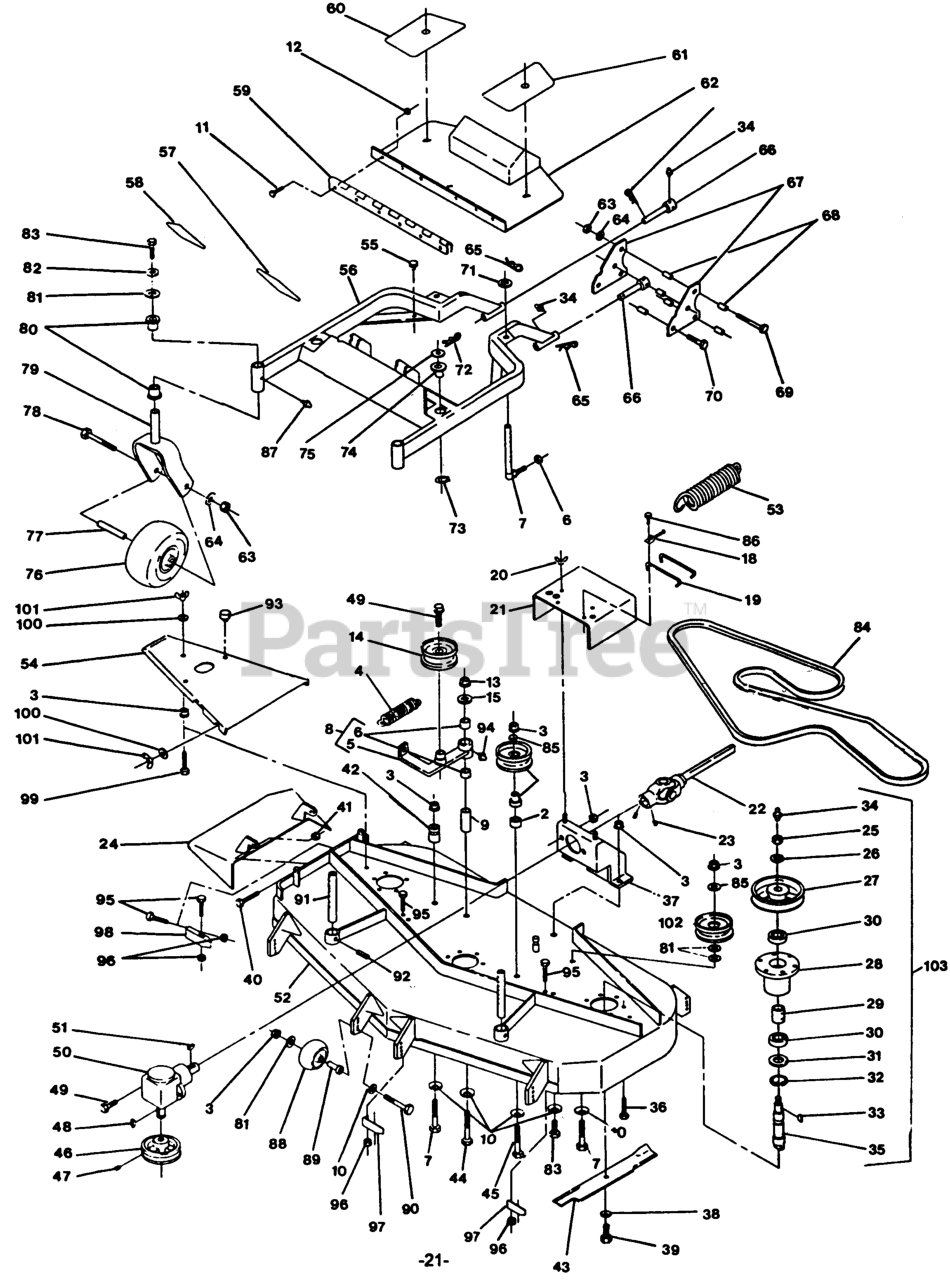

60" Side Discharge Mower Deck & Support Parts Diagram

  • Title

1

Exmark 1-602501

KIT,48 RH IDLER/BUS

$128.99

$

Usually ships in 3-6 days

0

Exmark 1-603497

IDLER,PULLEY

$53.99

$

Usually ships in 3-6 days

0

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

2

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 2 left!

0

3

Exmark 1-809007

3290-357
(Superseded to 3290-357)

Note: Nut

$0.99

$

In Stock, Qty 20+

0

4

Exmark 1-513170

SPRING,EXTENSION

$24.99

$

In Stock, only 1 left!

0

5

Exmark 1-512909

1-512935
(Superseded to 1-512935)

$

$

Not available

6

$

$

Not available

7

Exmark 1-800297

323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

8

Exmark 1-512935

DISCONTINUED (EXMARK)

$

$

Not available

9

Exmark 1-603044

BUSHING

$14.99

$

In Stock, only 4 left!

0

10

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

11

Exmark 1-801039

3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

12

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

13

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

14

Exmark 1-603497

IDLER,PULLEY

$53.99

$

Usually ships in 3-6 days

0

15

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

16

Exmark 1-803031

DISCONTINUED (EXMARK)

$

$

Not available

17

Exmark 1-603540

1-411532
(Superseded to 1-411532)

$147.99

$

In Stock, Qty 5

0

18

Exmark 1-513690

CLIP-DECK, HOLD UP ROD

$5.49

$

Usually ships in 3-6 days

0

19

Exmark 1-513879

DISCONTINUED (EXMARK)

$

$

Not available

20

Exmark 1-513959

WINGNUT-NYLOCK

$6.49

$

Usually ships in 3-6 days

0

21

Exmark 1-523233-01

DISCONTINUED (EXMARK)

$

$

Not available

22

Exmark 1-513196-03

PTO SHAFT,SHAFT HALF PNT

$

$

Not available

23

Exmark 1-803049

DISCONTINUED (EXMARK)

Note: Use P/N 840022 Pro-Lock, Nut Type (.5ml tube) on Setscrews

$

$

Not available

24

Exmark 1-542606-01

109-2758-01
(Superseded to 109-2758-01)

$186.99

$

Usually ships in 3-6 days

0

25

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$3.99

$

In Stock, Qty 20+

0

26

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

27

Exmark 1-513207

SHEAVE,BLADE DRIVE

$

$

Not available

28

Exmark 1-513186

1-414315
(Superseded to 1-414315)

$214.99

$

In Stock, only 1 left!

0

29

Exmark 1-513188

SPACER,BEARING

$22.99

$

Usually ships in 3-6 days

0

30

Exmark 1-303057

1-303543
(Superseded to 1-303543)

$42.99

$

Usually ships in 3-6 days

0

31

Exmark 1-513193

SEAL,MECHANICAL DUST

$6.99

$

Usually ships in 3-6 days

0

32

Exmark 1-808506

RING,SNAP WLDS N5000-244

$6.99

$

In Stock, Qty 7

0

33

Exmark 1-807006

3257-32
(Superseded to 3257-32)

$2.99

$

In Stock, Qty 11

0

34

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 8

0

35

Exmark 1-603031

SPINDLE-OUTER BLADE

$154.99

$

In Stock, only 2 left!

0

36

Exmark 1-809035

SCRW,TPTTE HH

$5.49

$

In Stock, Qty 5

0

37

Exmark 1-522161-01

WLD,GEARBOX SUPPORT

$

$

Not available

38

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

39

Exmark 1-800531

3213-1
(Superseded to 3213-1)

Note: Cpscr. Gr.5

$2.49

$

In Stock, Qty 11

0

40

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

41

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

42

Exmark 1-603422

ANCHOR-SPRING PLTD

$14.99

$

Usually ships in 3-6 days

0

43

Exmark 1-603283

103-3233-S
(Superseded to 103-3233-S)

$37.99

$

In Stock, Qty 16

0

Exmark 1-603661

103-3230
(Superseded to 103-3230)

$

$

Not available

Exmark 1-603874

103-3231
(Superseded to 103-3231)

Note: Requires installation of Micro-Mulch accessory for proper mulching.

$31.99

$

In Stock, only 4 left!

0

44

Exmark 1-800298

323-12
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

45

Exmark 1-800296

323-10
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

46

Exmark 1-523159

DISCONTINUED

$

$

Not available

47

Exmark 1-803310

SCREW-SET

Note: Use P/N 840022 Pro-Lock, Nut Type (.5ml tube) on Setscrews

$2.99

$

In Stock, only 1 left!

0

48

Exmark 1-807009

3257-5
(Superseded to 3257-5)

$5.99

$

In Stock, only 1 left!

0

49

$

$

Not available

50

Exmark 1-513635

GEARBOX, PEERLESS

$

$

Not available

51

Exmark 1-807005

3257-3
(Superseded to 3257-3)

$1.49

$

In Stock, only 4 left!

0

52

Exmark 1-602962

1-612149
(Superseded to 1-612149)

$

$

Not available

53

Exmark 1-513506

DISCONTINUED (EXMARK)

$

$

Not available

54

Exmark 1-523166-01

DISCONTINUED (EXMARK)

$

$

Not available

55

Exmark 1-522301

DISCONTINUED (EXMARK)

$

$

Not available

56

Exmark 1-522168

1-522301
(Superseded to 1-522301)

$

$

Not available

57

Exmark 1-513680

PAD,ANTI SKID UPPER LH

$2.99

$

Usually ships in 3-6 days

0

58

Exmark 1-513679

PAD,ANTI SKID UPPER RH

$2.99

$

Usually ships in 3-6 days

0

59

Exmark 1-513854

HINGE,FLOORPAN

$

$

Not available

60

Exmark 1-513681

PAD,ANTI SKID LOWER RH

$

$

Not available

61

Exmark 1-513682

DISCONTINUED

$

$

Not available

62

Exmark 1-522173-01

DISCONTINUED (EXMARK)

$

$

Not available

63

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 19

0

64

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

65

Exmark 1-806006

PIN,HAIR COTTER

$1.49

$

In Stock, Qty 5

0

66

Exmark 1-522186

PIVOT - MOUNTING, W/ZERK

$

$

Not available

67

Exmark 1-513342

DISCONTINUED (EXMARK)

$

$

Not available

68

Exmark 1-513315

DISCONTINUED

$

$

Not available

69

Exmark 1-800332

DISCONTINUED (EXMARK)

$

$

Not available

70

Exmark 1-800333

325-10
(Superseded to 325-10)

$5.49

$

In Stock, Qty 6

0

71

Exmark 1-513916

SPACER,REAR DK SUPP PLTD

$15.99

$

Usually ships in 3-6 days

0

72

Exmark 1-806007

1-806009
(Superseded to 1-806009)

$2.99

$

In Stock, Qty 20+

0

73

Exmark 1-808507

32120-33
(Superseded to 32120-33)

$7.49

$

In Stock, only 4 left!

0

74

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 7

0

75

Exmark 1-303314

SPACER-CASTER

$6.49

$

In Stock, Qty 5

0

76

Exmark 1-513648

103-2171
(Superseded to 103-2171)

$126.99

$

In Stock, only 4 left!

0

Exmark 1-513807

103-2171
(Superseded to 103-2171)

$126.99

$

In Stock, only 4 left!

0

Exmark 1-513808

TIRE

$43.99

$

In Stock, only 4 left!

0

Exmark 1-513809

BEARING

$35.99

$

In Stock, Qty 8

0

Exmark 1-513810

BUSHING

$5.99

$

In Stock, Qty 17

0

77

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 6

0

78

Exmark 1-800334

325-20
(Superseded to 325-20)

$7.99

$

In Stock, Qty 20+

0

79

Exmark 1-522143-01

116-7941-01
(Superseded to 116-7941-01)

$90.99

$

In Stock, Qty 7

0

80

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, only 1 left!

0

81

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

82

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 17

0

83

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

84

Exmark 1-523175

DISCONTINUED

$

$

Not available

85

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

86

Exmark 1-803010

Pop Rivet, Steel 3/16 X .250
(Superseded to 3269-3)

$0.99

$

In Stock, only 4 left!

0

87

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.49

$

In Stock, Qty 20+

0

88

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

89

Exmark 1-603602

BUSHING-ROLLER

$23.99

$

In Stock, only 3 left!

0

90

Exmark 1-800807

98-5961
(Superseded to 98-5961)

$5.49

$

In Stock, Qty 20+

0

91

Exmark 1-603001

ROD,DECK SUPPORT

$45.99

$

In Stock, only 3 left!

0

92

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 7

0

93

Exmark 1-513291

DISCONTINUED

$

$

Not available

94

Exmark 1-811008

302-40
(Superseded to 302-40)

$3.49

$

In Stock, Qty 20+

0

95

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

96

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

97

Exmark 1-602911-01

DISCONTINUED

$

$

Not available

98

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

0

99

Exmark 1-800031

DISCONTINUED

$

$

Not available

100

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 16

0

101

Exmark 1-543678

NUT-WING

$12.99

$

In Stock, Qty 5

0

102

Exmark 1-303516

IDLER,PULLEY

$52.99

$

In Stock, Qty 8

0

103

Exmark 1-604262

CH-52&60 OUTER CUTTR

$

$

Not available
