EXS-20KC-2 - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 102000 - 114999) (1995) Main Frame Group Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

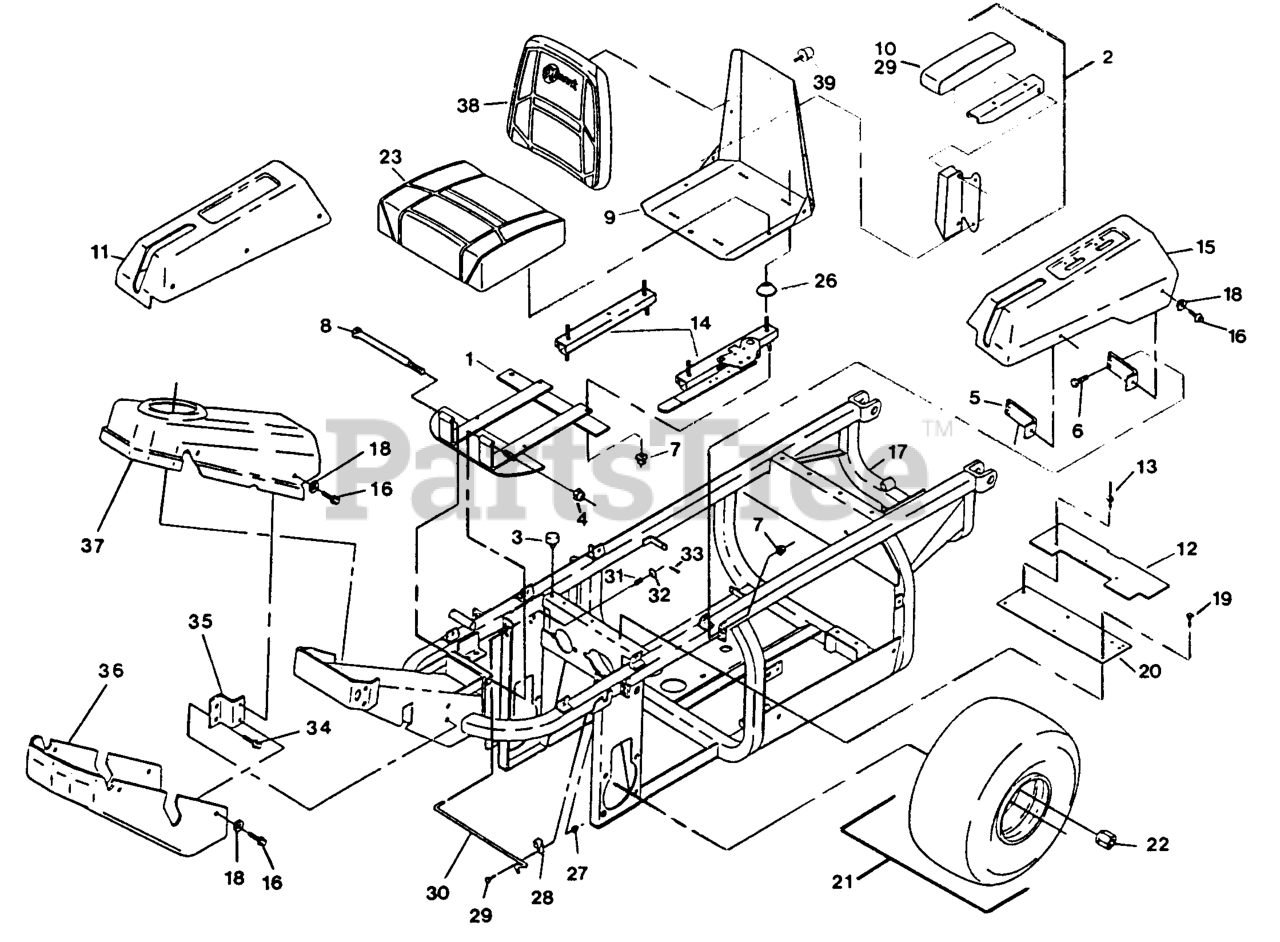

Main Frame Group Parts Diagram

  • Title

1

Exmark 1-522411-03

DISCONTINUED

$

$

Not available

2

Exmark 1-543406

DISCONTINUED
(Superseded to 103-1285)

Note: (optional)

$

$

Not available

3

Exmark 1-513291

DISCONTINUED

$

$

Not available

4

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

5

Exmark 1-513175

DISCONTINUED (EXMARK)

$

$

Not available

6

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

7

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

8

Exmark 1-800309

DISCONTINUED (EXMARK)

$

$

Not available

9

Exmark 1-543347

103-3524
(Superseded to 103-3524)

$686.99

$

In Stock, only 1 left!

0

10

Exmark 1-543411

103-0291
(Superseded to 103-0291)

Note: not illustrated

$98.99

$

In Stock, only 4 left!

0

11

Exmark 1-513677

FENDER,RH RANGER

$

$

Not available

12

Exmark 1-523404

SHIELD,PUMP

$

$

Not available

13

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

14

Exmark 1-523428

1-643255
(Superseded to 1-643255)

$217.99

$

In Stock, only 2 left!

0

15

Exmark 1-513676

FENDER,LH RANGER

$

$

Not available

16

Exmark 1-803036

32144-23
(Superseded to 32144-23)

$

$

Not available

17

Exmark 1-522347-03

DISCONTINUED

$

$

Not available

18

Exmark 1-805254

3256-16
(Superseded to 3256-16)

$0.99

$

In Stock, Qty 14

0

19

Exmark 1-802002

SCREW

$

$

Not available

20

Exmark 1-523405

SHIELD,PUMP BELT

$

$

Not available

21

Exmark 1-543396

WHEEL AND TIRE ASM
(Superseded to 144-3664)

$192.99

$

Usually ships in 3-6 days

0

Exmark 1-513042

WHEEL

$

$

Not available

Exmark 1-543680

99-4506
(Superseded to 99-4506)

$

$

Not available

22

Exmark 1-513011

242-50
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

23

Exmark 1-543407

103-3521
(Superseded to 103-3521)

$259.99

$

In Stock, Qty 5

0

24

Exmark 1-543409

103-0292
(Superseded to 103-0292)

$98.99

$

In Stock, only 2 left!

0

25

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

26

Exmark 1-543401

SPACER-TRACK

$5.49

$

In Stock, Qty 8

0

27

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

28

Exmark 1-513639

CLIP,SEAT HOLDUP ROD

$32.99

$

Usually ships in 3-6 days

0

29

Exmark 1-801039

3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

30

Exmark 1-513684

ROD,SEAT HOLDUP

$

$

Not available

31

Exmark 1-513641

SPRNG,ST HOLDUP ROD

$6.49

$

Usually ships in 3-6 days

0

32

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

33

Exmark 1-806753

3272-5
(Superseded to 3272-5)

$1.49

$

In Stock, Qty 5

0

34

Exmark 1-802001

DISCONTINUED (EXMARK)

$

$

Not available

35

Exmark 1-513692

DISCONTINUED

Note: (console)

$

$

Not available

36

Exmark 1-513686

CONSOLE,STEERING BOTTOM

Note: (bottom)

$

$

Not available

37

Exmark 1-513685

CONSOLE,STEERING TOP

Note: (top)

$

$

Not available

38

Exmark 1-543408

103-3520
(Superseded to 103-3520)

$235.99

$

In Stock, only 1 left!

0

39

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

0
