EXS-20KC-2 - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 102000 - 114999) (1995) Hydraulics With Steering Levers Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

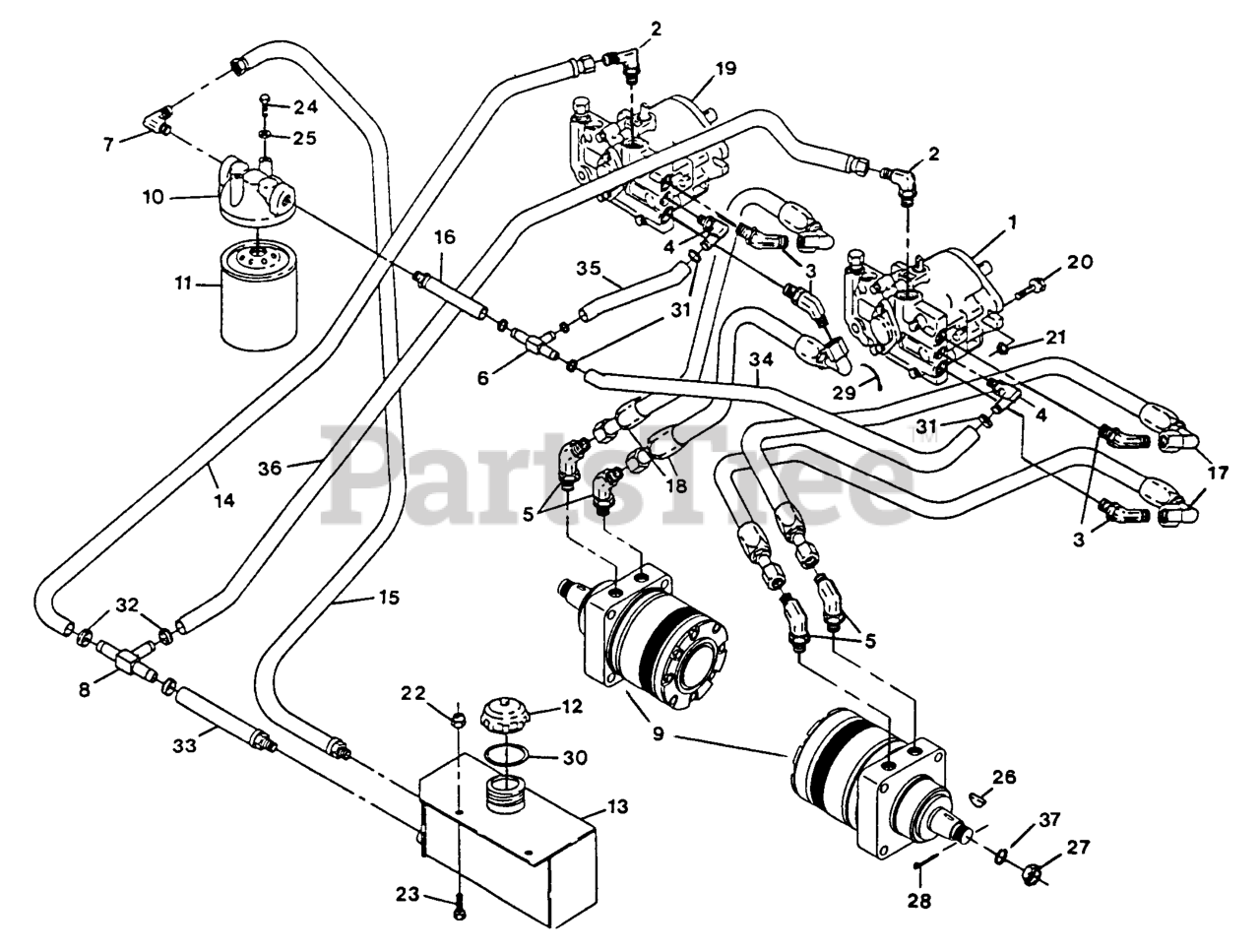

Hydraulics With Steering Levers Parts Diagram

  • Title

1

Exmark 1-523187

DISCONTINUED

$

$

Not available

2

Exmark 1-513840

FITTING-90 DEG

$29.99

$

In Stock, only 1 left!

0

3

Exmark 1-523221

FITTING-HYD, 45 DEG

$49.99

$

Usually ships in 3-6 days

0

4

Exmark 1-603989

FITTING

$36.99

$

Usually ships in 3-6 days

0

5

Exmark 1-523222

FITTING-HYD, 45 DEG

$63.99

$

Usually ships in 3-6 days

0

6

Exmark 1-603721

FITTING-TEE, HOSE

$23.99

$

Usually ships in 3-6 days

0

7

Exmark 1-513509

103-1012
(Superseded to 103-1012)

$26.99

$

Usually ships in 3-6 days

0

8

Exmark 1-603722

FITTING-TEE, HOSE

$23.99

$

Usually ships in 3-6 days

0

9

Exmark 1-523328

MOTOR-WHEEL

$1375.99

$

Usually ships in 3-6 days

0

10

Exmark 1-513006

FILTER-HEAD

$90.99

$

Usually ships in 3-6 days

0

11

Exmark 1-513211

109-4180
(Superseded to 109-4180)

$47.99

$

In Stock, Qty 16

0

12

Exmark 1-513167

CAP

$27.99

$

In Stock, only 4 left!

0

13

Exmark 1-512166-03

DISCONTINUED

$

$

Not available

14

Exmark 1-522217

LOW PRESSURE HOSE ASM

$38.99

$

Usually ships in 3-6 days

0

15

Exmark 1-522216

DISCONTINUED

$

$

Not available

16

Exmark 1-522215

DISCONTINUED

$

$

Not available

17

Exmark 1-403102

HOSE-PRESSURE, HIGH

$115.99

$

In Stock, Qty 5

0

18

Exmark 1-523325

HOSE,HIGH PRESSURE

$

$

Not available

19

Exmark 1-523188

DISCONTINUED

$

$

Not available

20

Exmark 1-803016

3234-11
(Superseded to 3234-11)

$4.49

$

In Stock, Qty 20+

0

21

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

22

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 10

0

23

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

25

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

26

Exmark 1-807020

3257-42
(Superseded to 3257-42)

$6.49

$

In Stock, Qty 12

0

27

Exmark 1-809039

DISCONTINUED (EXMARK)

$

$

Not available

28

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 18

0

29

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

30

Exmark 1-523103

GASKET-CAP, TANK

$7.49

$

In Stock, Qty 6

0

31

Exmark 1-603826

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 1-603827

CLAMP-HOSE

$2.99

$

In Stock, only 4 left!

0

33

Exmark 1-522219

DISCONTINUED

$

$

Not available

34

Exmark 1-523214

HOSE,LO PRESSURE

$

$

Not available

35

Exmark 1-523213

DISCONTINUED

$

$

Not available

36

Exmark 1-522218

DISCONTINUED (EXMARK)

$

$

Not available

37

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0
