EXS-20KC-2 - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 090000 - 101999) (1994) 44" Mower Deck & Support Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

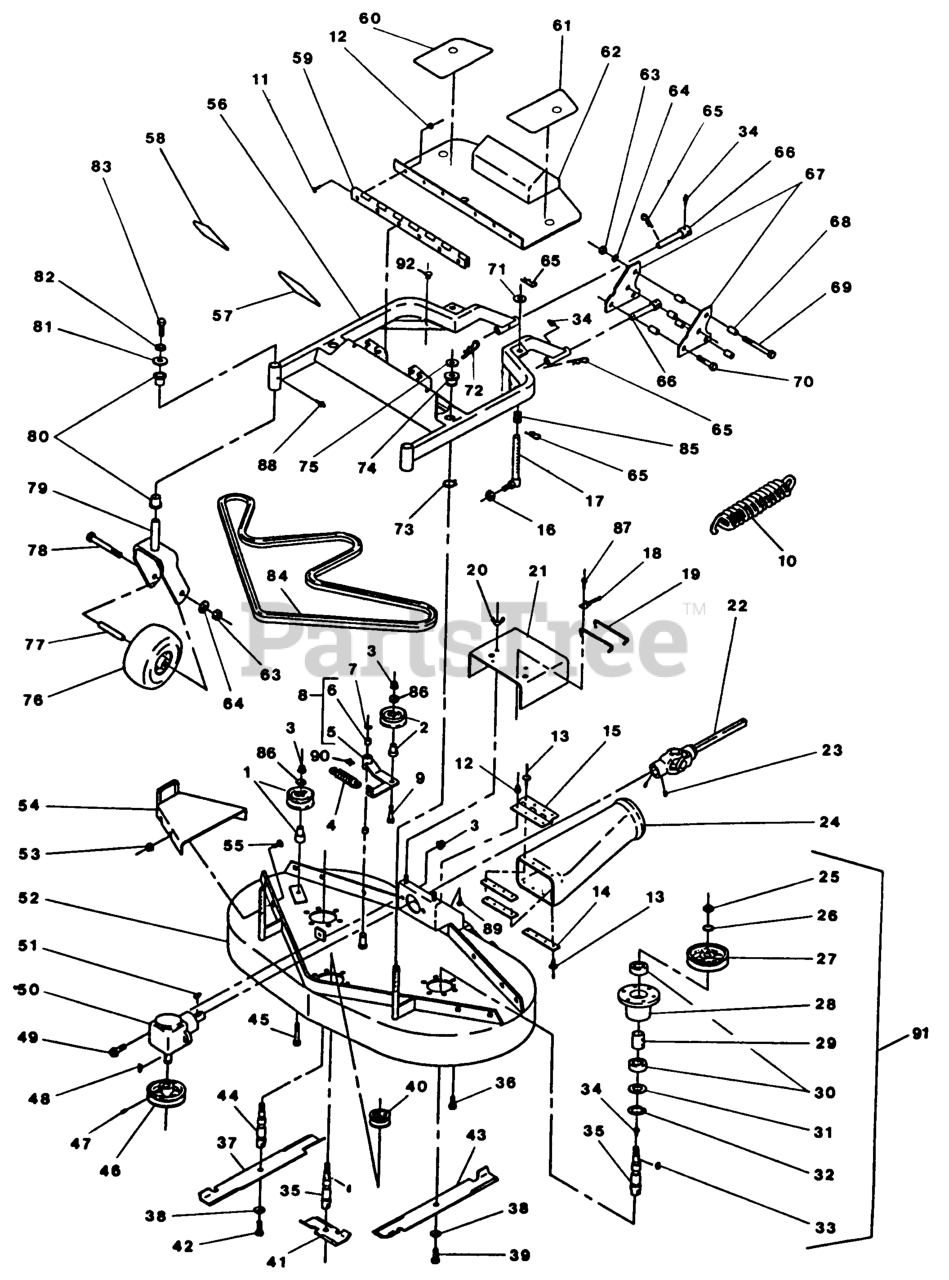

44" Mower Deck & Support Parts Diagram

  • Title

1

Exmark 1-512805

KIT,IDLER & BUSHING

$

$

Not available

Exmark 1-513787

103-0789
(Superseded to 103-0789)

$133.99

$

Usually ships in 3-6 days

0

Exmark 1-513789

DISCONTINUED (EXMARK)

$

$

Not available

2

Exmark 1-512806

DISCONTINUED

$

$

Not available

Exmark 1-513787

103-0789
(Superseded to 103-0789)

$133.99

$

Usually ships in 3-6 days

0

Exmark 1-513791

BUSHING,IDLER

$5.49

$

In Stock, only 1 left!

0

3

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

4

Exmark 1-513306

1-513308
(Superseded to 1-513308)

$29.99

$

Usually ships in 3-6 days

0

5

Exmark 1-512359-03

1-512802
(Superseded to 1-512802)

$

$

Not available

6

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

7

Exmark 1-808500

32120-19
(Superseded to 32120-19)

$2.99

$

In Stock, Qty 14

0

8

Exmark 1-512802

DISCONTINUED

$

$

Not available

9

Exmark 1-800294

323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

10

Exmark 1-513596-03

DISCONTINUED (EXMARK)

$

$

Not available

11

Exmark 1-801039

3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

12

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

13

Exmark 1-803012

9237964
(Superseded to 9237964)

$1.49

$

In Stock, Qty 8

0

14

Exmark 1-513429

DISCONTINUED

$

$

Not available

15

Exmark 1-513436

DISCONTINUED (EXMARK)

$

$

Not available

16

Exmark 1-803031

DISCONTINUED (EXMARK)

$

$

Not available

17

Exmark 1-513528

1-411532
(Superseded to 1-411532)

$147.99

$

In Stock, Qty 5

0

18

Exmark 1-513690

CLIP-DECK, HOLD UP ROD

$5.49

$

Usually ships in 3-6 days

0

19

Exmark 1-513630

DISCONTINUED (EXMARK)

$

$

Not available

20

Exmark 1-513959

WINGNUT-NYLOCK

$6.49

$

Usually ships in 3-6 days

0

21

Exmark 1-523233-01

DISCONTINUED (EXMARK)

$

$

Not available

22

Exmark 1-513196-03

PTO SHAFT,SHAFT HALF PNT

$

$

Not available

23

Exmark 1-803049

DISCONTINUED (EXMARK)

Note: Incl. in P/N 840022,Pro-Lock, Nut type (.5 ml tube) on Setscrews

$

$

Not available

24

Exmark 1-513046

DISCONTINUED

$

$

Not available

Exmark 1-512710

DISCONTINUED

$

$

Not available

25

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$3.99

$

In Stock, Qty 20+

0

26

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

27

Exmark 1-513207

SHEAVE,BLADE DRIVE

$

$

Not available

28

Exmark 1-513186

1-414315
(Superseded to 1-414315)

$214.99

$

In Stock, only 1 left!

0

29

Exmark 1-513188

SPACER,BEARING

$22.99

$

Usually ships in 3-6 days

0

30

Exmark 1-303057

1-303543
(Superseded to 1-303543)

$42.99

$

Usually ships in 3-6 days

0

31

Exmark 1-513193

SEAL,MECHANICAL DUST

$6.99

$

Usually ships in 3-6 days

0

32

Exmark 1-808506

RING,SNAP WLDS N5000-244

$6.99

$

In Stock, Qty 7

0

33

Exmark 1-807006

3257-32
(Superseded to 3257-32)

$2.99

$

In Stock, Qty 11

0

34

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 8

0

35

Exmark 1-513190

DISCONTINUED

$

$

Not available

36

Exmark 1-809027

9267154
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

37

Exmark 1-513262

103-3294
(Superseded to 103-3294)

$29.99

$

Usually ships in 3-6 days

0

38

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

39

Exmark 1-800531

3213-1
(Superseded to 3213-1)

$2.49

$

In Stock, Qty 11

0

40

Exmark 1-513192

DISCONTINUED

$

$

Not available

41

Exmark 1-513264

DISCONTINUED (EXMARK)

$

$

Not available

42

Exmark 1-800532

SCREW-CAP,HH

$30.99

$

Usually ships in 3-6 days

0

43

Exmark 1-513263

103-3293
(Superseded to 103-3293)

$

$

Not available

44

Exmark 1-513189

DISCONTINUED

$

$

Not available

45

Exmark 1-800296

323-10
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

46

Exmark 1-513642

DISCONTINUED (EXMARK)

$

$

Not available

47

Exmark 1-803310

SCREW-SET

Note: Incl. in P/N 840022,Pro-Lock, Nut type (.5 ml tube) on Setscrews

$2.99

$

In Stock, only 1 left!

0

48

Exmark 1-807009

3257-5
(Superseded to 3257-5)

$5.99

$

In Stock, only 1 left!

0

49

Exmark 1-803016

3234-11
(Superseded to 3234-11)

$4.49

$

In Stock, Qty 20+

0

50

Exmark 1-513635

GEARBOX, PEERLESS

$

$

Not available

51

Exmark 1-807005

3257-3
(Superseded to 3257-3)

$1.49

$

In Stock, only 4 left!

0

52

Exmark 1-512250-01

DISCONTINUED (EXMARK)

$

$

Not available

53

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

54

Exmark 1-512849-01

DISCONTINUED (EXMARK)

$

$

Not available

55

Exmark 1-807503

3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

56

Exmark 1-524099

DISCONTINUED (EXMARK)

Note: &

$

$

Not available

57

Exmark 1-513680

PAD,ANTI SKID UPPER LH

$2.99

$

Usually ships in 3-6 days

0

58

Exmark 1-513679

PAD,ANTI SKID UPPER RH

$2.99

$

Usually ships in 3-6 days

0

59

Exmark 1-513413

HINGE,FLOORPAN

$

$

Not available

60

Exmark 1-513681

PAD,ANTI SKID LOWER RH

$

$

Not available

61

Exmark 1-513682

DISCONTINUED

$

$

Not available

62

Exmark 1-512419-01

DISCONTINUED

$

$

Not available

63

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 19

0

64

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

65

Exmark 1-806006

PIN,HAIR COTTER

$1.49

$

In Stock, Qty 5

0

66

Exmark 1-522186

PIVOT - MOUNTING, W/ZERK

$

$

Not available

67

Exmark 1-513342

DISCONTINUED (EXMARK)

$

$

Not available

68

Exmark 1-513315

DISCONTINUED

$

$

Not available

69

Exmark 1-800332

DISCONTINUED (EXMARK)

$

$

Not available

70

Exmark 1-800333

325-10
(Superseded to 325-10)

$5.49

$

In Stock, Qty 6

0

71

Exmark 1-805267

3256-27
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 5

0

72

Exmark 1-806007

1-806009
(Superseded to 1-806009)

$2.99

$

In Stock, Qty 20+

0

73

Exmark 1-808507

32120-33
(Superseded to 32120-33)

$7.49

$

In Stock, only 4 left!

0

74

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 7

0

75

Exmark 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

76

Exmark 1-513648

103-2171
(Superseded to 103-2171)

$126.99

$

In Stock, only 4 left!

0

Exmark 1-513807

103-2171
(Superseded to 103-2171)

$126.99

$

In Stock, only 4 left!

0

Exmark 1-513808

TIRE

$43.99

$

In Stock, only 4 left!

0

Exmark 1-513809

BEARING

$35.99

$

In Stock, Qty 8

0

Exmark 1-513810

BUSHING

$5.99

$

In Stock, Qty 17

0

77

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 6

0

78

Exmark 1-800334

325-20
(Superseded to 325-20)

$7.99

$

In Stock, Qty 20+

0

79

Exmark 1-512549

116-7941-01
(Superseded to 116-7941-01)

$90.99

$

In Stock, Qty 7

0

80

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, only 1 left!

0

81

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

82

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 17

0

83

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

84

Exmark 1-513307

DISCONTINUED EXMARK

$

$

Not available

85

Exmark 1-373054

SPRING,HITCH RELEASE

$10.99

$

In Stock, only 1 left!

0

86

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

87

Exmark 1-803010

Pop Rivet, Steel 3/16 X .250
(Superseded to 3269-3)

$0.99

$

In Stock, only 4 left!

0

88

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.49

$

In Stock, Qty 20+

0

89

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

90

Exmark 1-811008

302-40
(Superseded to 302-40)

$3.49

$

In Stock, Qty 20+

0

91

Exmark 1-514214

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-514218

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-514219

DISCONTINUED (EXMARK)

$

$

Not available

92

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 11
