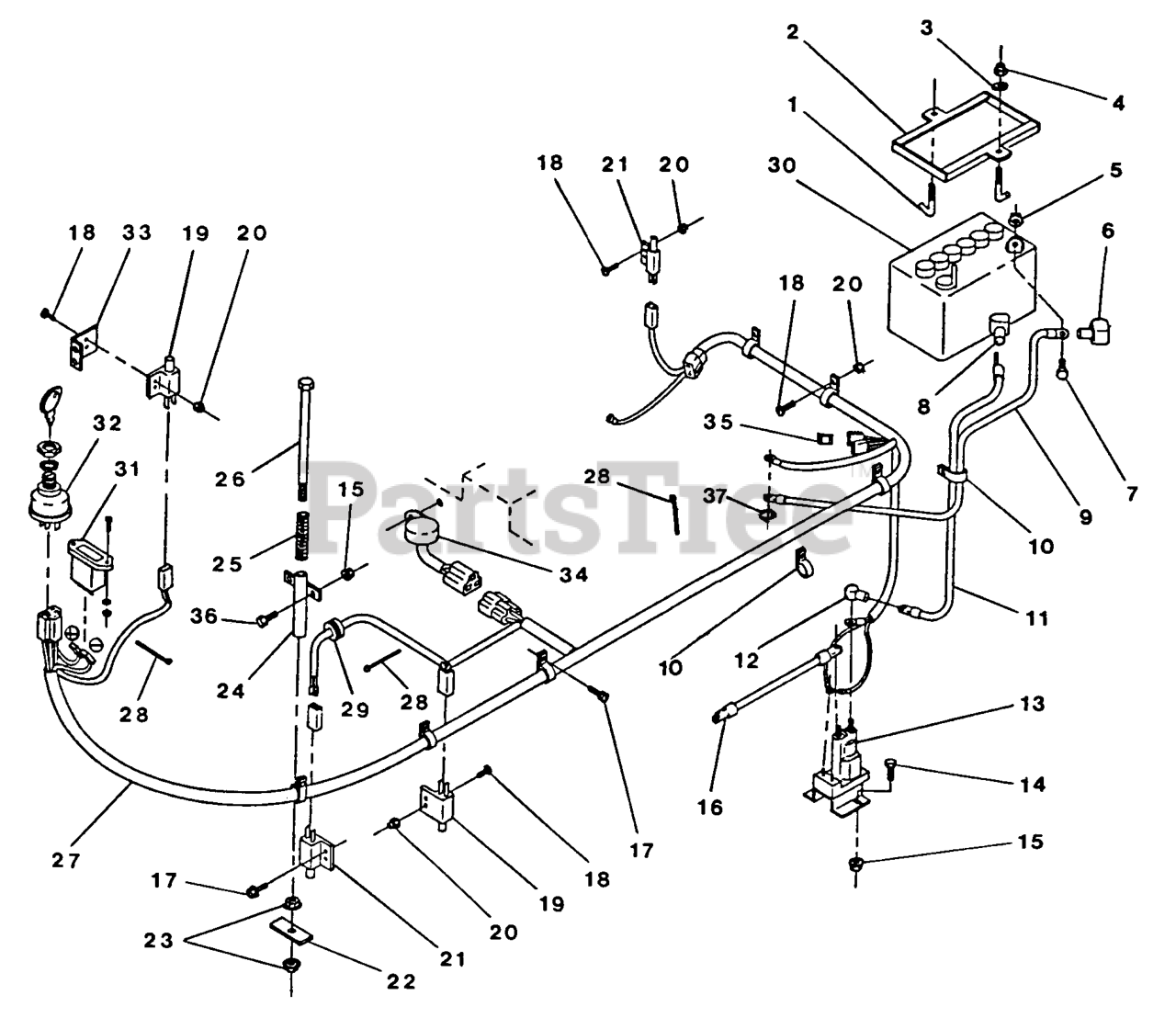

EXS-20KC-2 - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 080000 - 089999) (1993) Electrical Group Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

Electrical Group Parts Diagram

  • Title

1

Exmark 1-513370

BOLT,HOLDDOWN

$14.99

$

Usually ships in 3-6 days

0

2

Exmark 1-512320-03

WLD,HOLDDOWN BATTERY

$

$

Not available

3

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

4

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

6

Exmark 1-543390

INSULATOR, BATTERY -

$8.49

$

Usually ships in 3-6 days

0

7

Exmark 1-800271

322-3
(Superseded to 322-3)

Note: Cpscr. Gr.5

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

9

Exmark 1-513056

DISCONTINUED

Note: Eng. Blk.

$

$

Not available

10

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

11

Exmark 1-513053

109-7653
(Superseded to 109-7653)

Note: Sol. SW.

$35.99

$

In Stock, only 1 left!

0

12

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

13

Exmark 1-513075

117-1197
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

14

Exmark 1-800251

321-3
(Superseded to 321-3)

Note: Cpscr. Gr.5

$1.49

$

In Stock, Qty 20+

0

15

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

16

Exmark 1-513582

109-7628
(Superseded to 109-7628)

$30.99

$

In Stock, only 1 left!

0

17

Exmark 1-802002

SCREW

Note: Self Tapping Screw

$

$

Not available

18

Exmark 1-801039

3290-500
(Superseded to 3290-500)

Note: Sltd. Mach. Screw

$1.49

$

In Stock, Qty 20+

0

19

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

20

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

21

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 16

0

22

Exmark 1-513180

PLATE-SWITCH, SEAT

$17.99

$

In Stock, only 3 left!

0

23

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-512362-03

DISCONTINUED (EXMARK)

$

$

Not available

25

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

26

Exmark 1-800282

SCREW-HH

Note: Head Capscrew

$5.49

$

In Stock, only 1 left!

0

27

Exmark 1-513730

DISCONTINUED (EXMARK)

$

$

Not available

28

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

29

Exmark 1-513765

GROMMET,.38 HOLE

$1.49

$

Usually ships in 3-6 days

0

30

Exmark 1-513002

DISCONTINUED (EXMARK)

$

$

Not available

31

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

32

Exmark 1-513194

DISCONTINUED

$

$

Not available

33

Exmark 1-513534

BRACKET,PTO SWITCH MOUNT

$24.99

$

Usually ships in 3-6 days

0

34

Exmark 1-513579

1-611115
(Superseded to 1-611115)

$278.99

$

Usually ships in 3-6 days

0

35

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

36

Exmark 1-800252

321-4
(Superseded to 321-4)

Note: Capscrew Gr.5

$1.49

$

In Stock, Qty 20+

0

37

Exmark 1-805506

DISCONTINUED

$

$

Not available
