EXS-20KC-2 - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 070000 - 079999) (1992) Lever Steering Controls Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

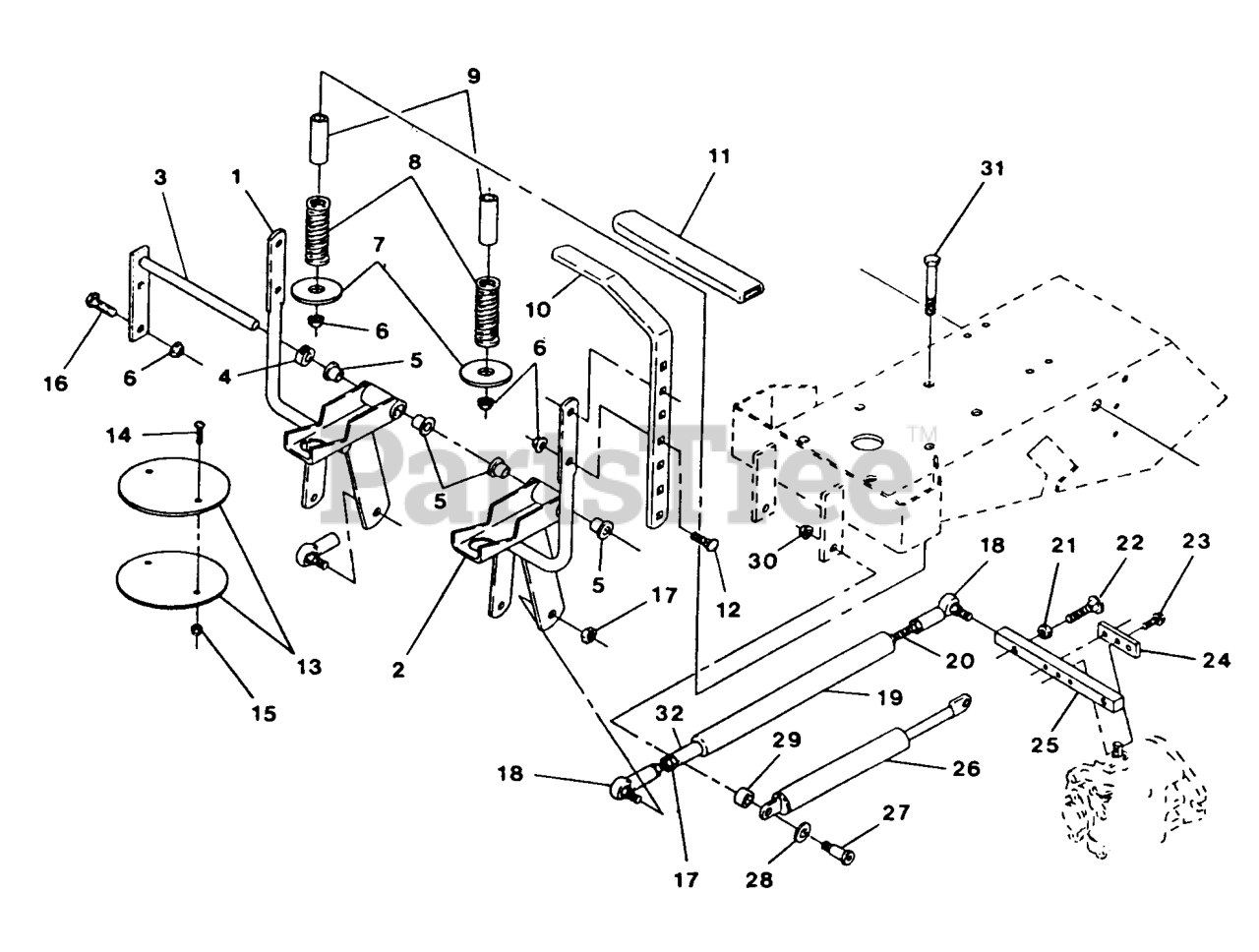

Lever Steering Controls Parts Diagram

  • Title
1

Exmark 1-522060-03

DISCONTINUED (EXMARK)

$

$

Not available

2

Exmark 1-522058-03

DISCONTINUED

$

$

Not available

3

Exmark 1-522053-03

DISCONTINUED

$

$

Not available

4

Exmark 1-809023

DISCONTINUED (EXMARK)

$

$

Not available

5

Exmark 1-513140

BEARING-CONTROL

$6.49

$

In Stock, Qty 8

0

6

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-513516

WSHR,REVERSE INDICATOR

$5.49

$

Usually ships in 3-6 days

0

8

Exmark 1-513296

SPRING-INDICATOR, REVERSE

$7.99

$

Usually ships in 3-6 days

0

9

Exmark 1-513479

BUSHING,SPRING GUIDE

$16.99

$

Usually ships in 3-6 days

0

10

Exmark 1-523055-03

DISCONTINUED

$

$

Not available

11

Exmark 1-523063

GRIP,MOTION CONTRL

$15.99

$

In Stock, only 1 left!

0

12

Exmark 1-807506

3230-22
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

13

Exmark 1-523065-03

DISCONTINUED (EXMARK)

$

$

Not available

14

Exmark 1-801039

3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

15

Exmark 1-805252

3256-14
(Superseded to 3256-14)

$0.99

$

In Stock, Qty 20+

0

16

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

17

Exmark 1-804758

3220-2
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 20+

0

18

Exmark 1-513132

BALLJOINT

$43.99

$

In Stock, only 1 left!

0

19

Exmark 1-512136-03

DISCONTINUED

$

$

Not available

20

Exmark 1-513499

ROD,STEERING

$7.49

$

Usually ships in 3-6 days

0

21

Exmark 1-804750

3218-1
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

22

Exmark 1-807504

DISCONTINUED (EXMARK)

$

$

Not available

23

Exmark 1-803026

DISCONTINUED (EXMARK)

$

$

Not available

24

Exmark 1-513151

PLATE,CLAMP

$15.99

$

Usually ships in 3-6 days

0

25

Exmark 1-513146

ARM,PUMP CONTROL

$51.99

$

Usually ships in 3-6 days

0

26

Exmark 1-523027

109-2339
(Superseded to 109-2339)

$76.99

$

In Stock, only 3 left!

0

27

Exmark 1-809010

DISCONTINUED (EXMARK)

$

$

Not available

28

Exmark 1-805267

3256-27
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 5

0

29

Exmark 1-603500

SPACER-PLATED

$11.99

$

Usually ships in 3-6 days

0

30

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

31

Exmark 1-800277

322-10
(Superseded to 322-10)

$0.99

$

In Stock, Qty 5

0

32

Exmark 1-513479

BUSHING,SPRING GUIDE

$16.99

$

Usually ships in 3-6 days

0
