EXS-20KC-2 - Exmark Explorer Zero-Turn Mower, 20hp Kohler (SN: 070000 - 079999) (1992) Air Intake Parts Diagram

Explorer Zero-Turn Mower, 20hp Kohler

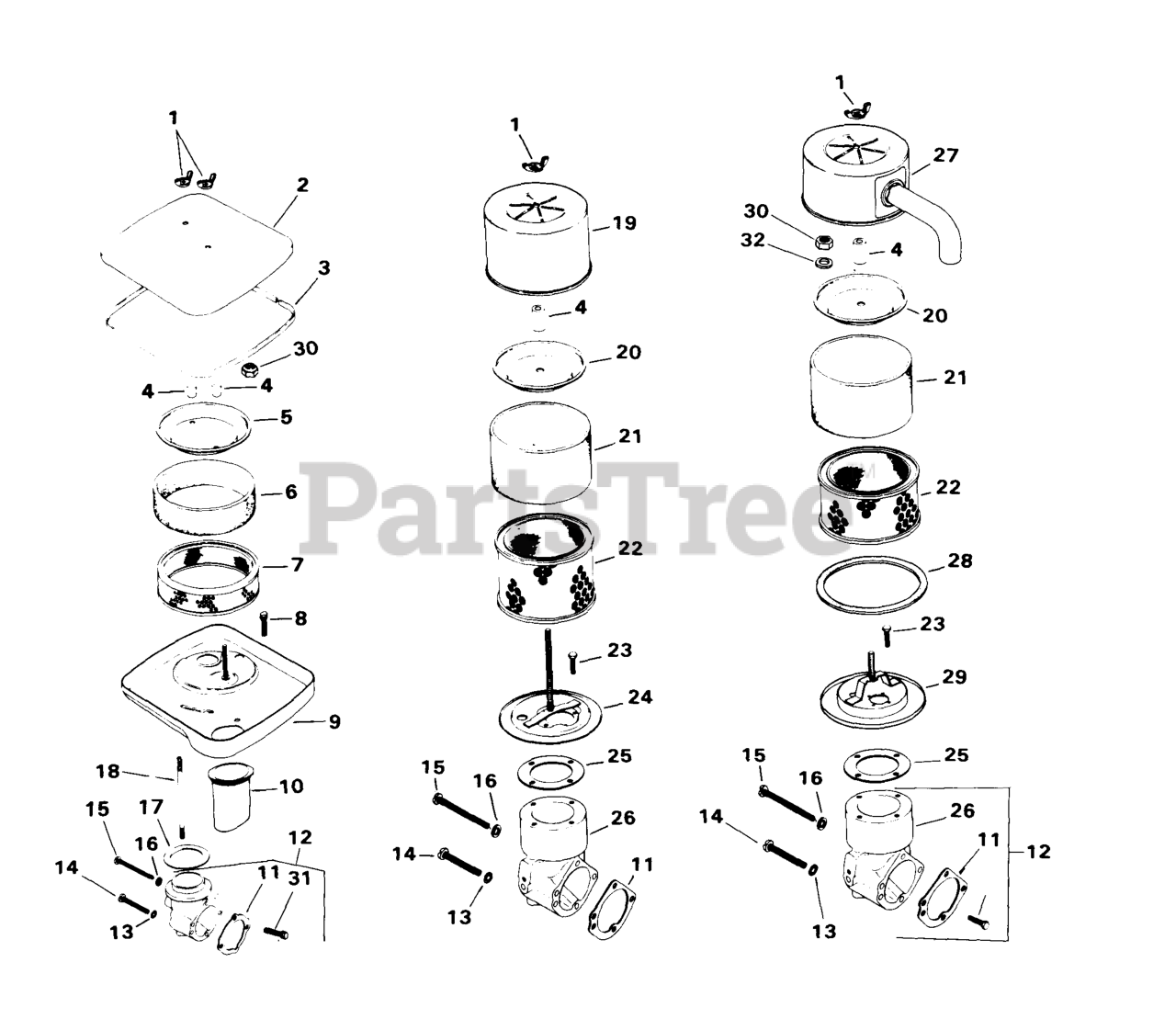

Air Intake Parts Diagram

  • Title

1

Exmark X-276-7-S

Wing Nut 1/4-20

$

$

Currently unavailable

2

Exmark 5208202-S

Cover, Air Cleaner - Square

$

$

Currently unavailable

3

Exmark 5203201-S

Seal, Air Cleaner Cover

$

$

Currently unavailable

4

Exmark 231032-S

Seal, Element Cover

$

$

Currently unavailable

5

Exmark 5208203-S

Cover, Air Cleaner Element

$

$

Currently unavailable

6

Exmark 5208301-S1

Precleaner

$

$

Currently unavailable

7

Exmark 4708301-S1

Element, Air Cleaner

$

$

Currently unavailable

8

Exmark X-67-83-S

Screw, Hex. Wash. Hd. 1/4-20x7/16"

$

$

Currently unavailable

9

Exmark 5220107-S

Base, Air Cleaner

$

$

Currently unavailable

10

Exmark 4713402-S

Tube, Air Cleaner

$

$

Currently unavailable

11

Exmark 2504106-S

Gasket, Air Cleaner Elbow

$

$

Currently unavailable

12

Exmark 5275403-S

Kit, Air Intake Elbow

Note: Includes 11,31

$

$

Currently unavailable

13

Exmark X-22-9-S

Washer, I.T. #10

$

$

Currently unavailable

14

Exmark X-50-57-S

Screw, Sltd. Pan Hd. 10-32x1-1/2"

$

$

Currently unavailable

15

Exmark X-50-37-S

Screw, Sltd. Pan Hd. 10-32x2-1/4"

$

$

Currently unavailable

16

Exmark X-25-79-S

Washer, Plain #10

$

$

Currently unavailable

17

Exmark 5205504-S

Gasket, Air Cleaner

$

$

Currently unavailable

18

Exmark X-352-38-S

Stud 1/4-20x4-3/4"

$

$

Currently unavailable

31

Exmark X-67-62-S

Screw, Hex. Wash. Hd. 1/4-20x3/4"

$

$

Currently unavailable

Exmark 2511307-S

Decal, Air Cleaner

Note: NOT ILLUSTRATED

$

$

Currently unavailable
