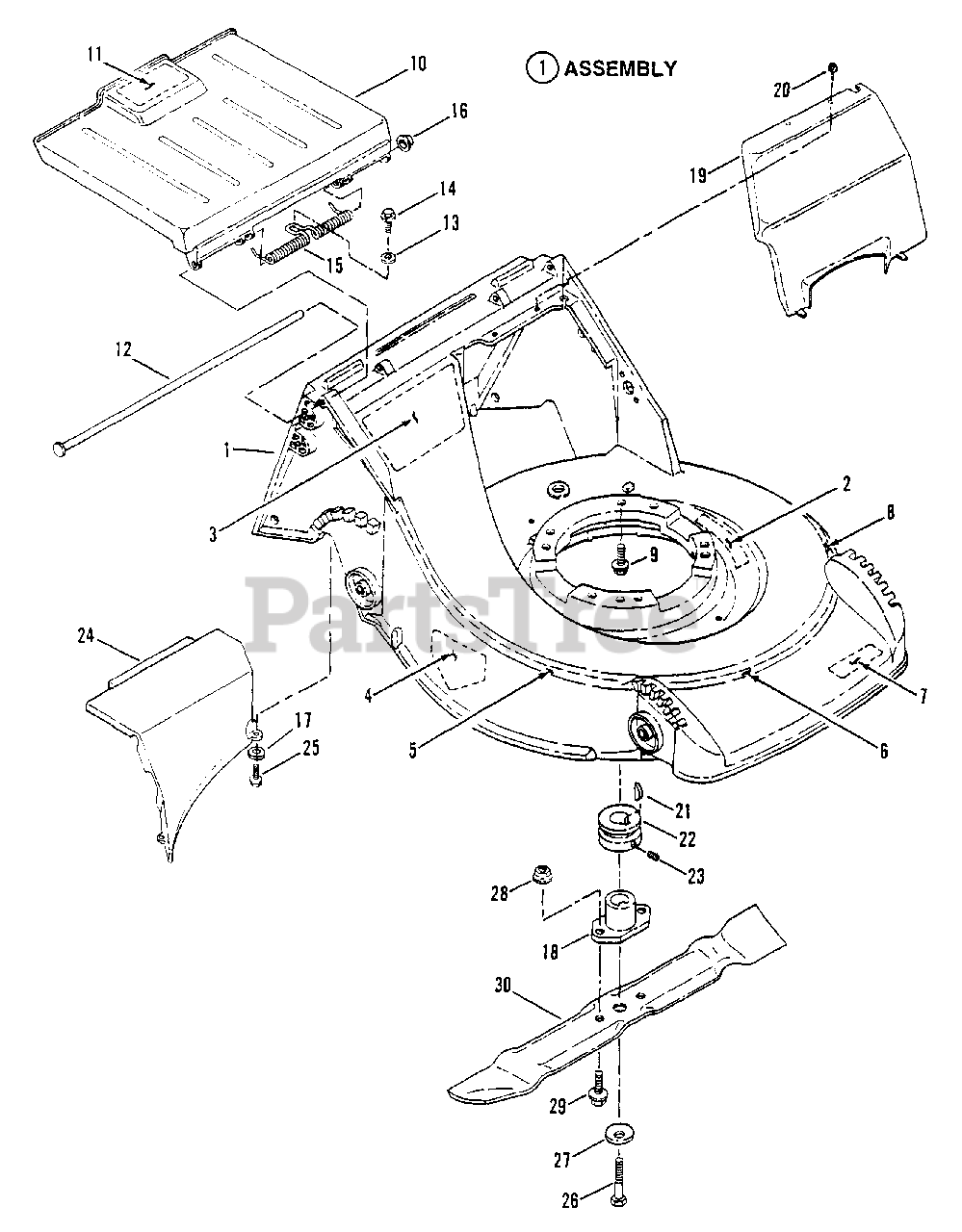

EXP 21551VE (80514) - Snapper 21" Walk-Behind Mower, 5.5hp Engine, Cutting Deck, Blade Parts Diagram

21" Walk-Behind Mower, 5.5hp

Engine, Cutting Deck, Blade Parts Diagram

  • Title

1

Snapper 7053328

ASSEMBLY, Deck & Decals

Note: (Includes items 2 thru 8)

$

$

Not available

2

Snapper 7026713

DECAL, WARNING
(Superseded to 7026713YP)

$7.99

$

Usually ships in 2-12 days

0

3

Snapper 7026561

DECAL, Mulching Convertible

$

$

Currently unavailable

4

Snapper 7013010

DECAL, DANGER
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

5

Snapper 7026508

DECAL, Stripe (Right Hand Side)
(Superseded to 7026508YP)

$7.49

$

Usually ships in 2-12 days

0

6

Snapper 7026506

DECAL, Stripe (Front)

$

$

Currently unavailable

7

Snapper 7026582

DECAL, SNAPPER, Mulching Convertible

$

$

Not available

8

Snapper 7026507

DECAL, Stripe (Left Hand Side)
(Superseded to 7026507YP)

$7.49

$

Usually ships in 2-12 days

0

9

Snapper 7090324

SCREW, 3/8-16 x 1" Self-Tapping (Engine Mounting)
(Superseded to 704000)

$4.99

$

In Stock, only 1 left!

0

10

Snapper 7053199

ASSEMBLY, Door/Decal
(Superseded to 7053199YP)

Note: (Includes 11)

$33.99

$

Usually ships in 2-12 days

0

11

Snapper 7026541

DECAL, Quick Change Convertible

$

$

Currently unavailable

12

Snapper 7026105

ROD, Door Hinge
(Superseded to 7026105YP)

$4.99

$

Usually ships in 2-12 days

0

13

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7091231

SCREW, #10-16 x 5/8" Self-Tapping

$

$

Currently unavailable

15

Snapper 7026139

SPRING, Torsion

$

$

Not available

16

Snapper 7012542

NUT, 5/16 Push
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

17

Snapper 7091253

WASHER, 1/4 Flat
(Superseded to 7091253YP)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7026631

HUB, Blade Drive (Briggs Engine)

$

$

Not available

Snapper 7026630

HUB, Blade Drive (Kawasaki Engine)
(Superseded to 7026630YP)

$13.99

$

Usually ships in 2-12 days

0

19

Snapper 7024527

COVER, Drive

$

$

Not available

20

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

21

Snapper 7015894

KEY, 3/16 x 5/16" #605 Woodruff (Briggs Engine)
(Superseded to 7015894SM)

$3.49

$

In Stock, Qty 7

0

Snapper 7010783

KEY, 5/32 x 5/8" #505 Woodruff (Kawasaki Engine)
(Superseded to 7010783YP)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7015780

PULLEY, Engine (Briggs Engine)
(Superseded to 7015780YP)

$30.99

$

Usually ships in 2-12 days

0

Snapper 7021764

PULLEY, Engine (Kawasaki Engine)
(Superseded to 7021764YP)

$54.99

$

Usually ships in 2-12 days

0

23

Snapper 7090201

SETSCREW, 5/16-18 x 5/16" Hex Socket
(Superseded to 7090201SM)

$

$

Not available

24

Snapper 7034136

BAFFLE, Rear
(Superseded to 7034136YP)

Note: Was 24740

$23.99

$

In Stock, only 1 left!

0

25

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head (Torx)
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

26

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5) (Briggs Engine)
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

Snapper 7090483

SCREW, 3/8-24 x 1-3/4" Hex Head Cap (Gr. 5) (Kawasaki Engine)
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

27

Snapper 7079268

WASHER, 3/8 Split Lock
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

28

Snapper 7091299

NUT, 3/8-16 Hex Top Lock (Briggs Engine)
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock (Kawasaki Engine)
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

29

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap (Briggs Engine)
(Superseded to 703871)

Note: Was 90143

$4.99

$

Usually ships in 2-12 days

0

Snapper 7027198

BOLT, 3/8-16 x 1" Hex Flange Lock (Kawasaki Engine)
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

30

Snapper 7026427

BLADE, 21" Cutter
(Superseded to 7026427BMYP)

$

$

Not available

ENGINE, 5.5 HP Briggs & Stratton (B&S # 099772-3624-01)

Note: (Not Shown)

$

$

Not available

ENGINE, 5.0 HP Kawasaki (KAW # FC150V-ES11)

Note: (Not Shown)

$

$

Not available
