EXP 21551VE (80514) - Snapper 21" Walk-Behind Mower, 5.5hp Deck Lift Components Parts Diagram

21" Walk-Behind Mower, 5.5hp

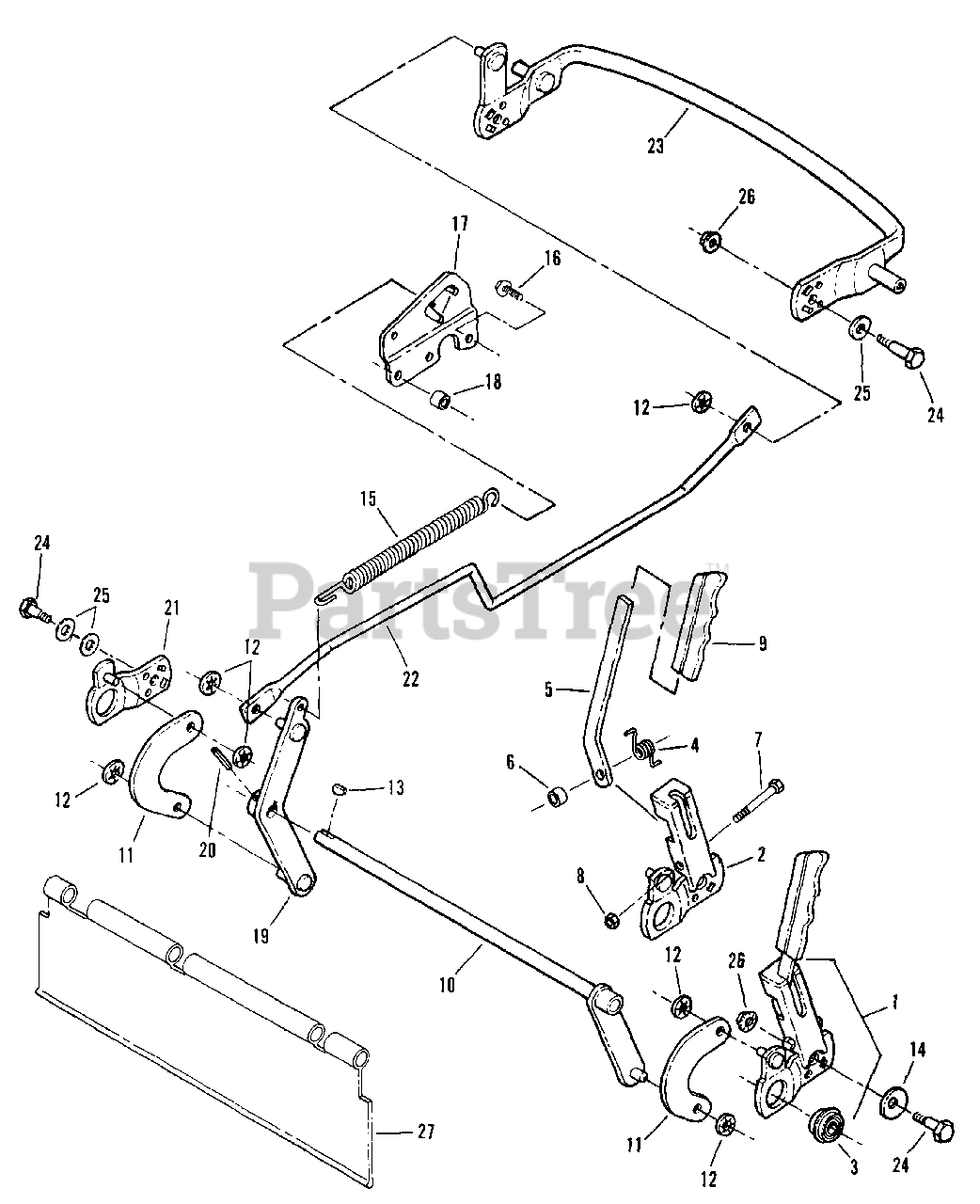

Deck Lift Components Parts Diagram

  • Title

1

Snapper 7053327

ASSEMBLY, Wheel Arm Height Lever

Note: (Includes Items 2 thru 8)

$

$

Not available

Snapper 7053326

ASSEMBLY, Wheel Arm/Bearing (Right Hand)

Note: (Includes Item 3 & 4)

$

$

Currently unavailable

2

Snapper 7041593

WELDMENT, Wheel/Arm
(Superseded to 7041593YP)

$148.99

$

Usually ships in 2-12 days

0

3

Snapper 7026544

BEARING
(Superseded to 7026544YP)

$9.49

$

Usually ships in 2-12 days

0

4

Snapper 7028019

SPRING, Torsion Return

$

$

Not available

5

Snapper 7034110

HANDLE, Lift

$

$

Not available

6

Snapper 7028018

SPACER

$

$

Not available

7

Snapper 7076937

SCREW, 5/16-18 x 2" Hex Head Cap
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

8

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 19

0

9

Snapper 7026420

GRIP, Handle
(Superseded to 7105356YP)

$5.49

$

Usually ships in 2-12 days

0

10

Snapper 7041526

WELDMENT, Rear Link (Right Hand)
(Superseded to 7041526YP)

$205.99

$

Usually ships in 2-12 days

0

11

Snapper 7033976

LINK, Intermediate Rear

$

$

Currently unavailable

12

Snapper 7013946

RETAINER, 3/8 Wheel
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7010783

KEY, 5/32 x 5/8" #505 Woodruff
(Superseded to 7010783YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7027962

WASHER, 1/2 Belleville

$

$

Currently unavailable

15

Snapper 7026788

SPRING, Extension

$

$

Currently unavailable

16

Snapper 7091254

SCREW, 1/4-20 x 7/8" Self-Tapping (Torx)

$

$

Not available

17

Snapper 7034061

BRACKET, Spring

$

$

Currently unavailable

18

Snapper 7027922

SPACER

$

$

Currently unavailable

19

Snapper 7041525

WELDMENT, Rear Link (Left Hand)

$

$

Currently unavailable

20

Snapper 7013550

PIN, 3/16 x 1" Roll
(Superseded to 7013550YP)

$4.49

$

In Stock, only 4 left!

0

21

Snapper 7053234

ASSEMBLY, Wheel Arm/Bearing (Left Hand)

$

$

Currently unavailable

22

Snapper 7033982

ROD

$

$

Currently unavailable

23

Snapper 7041516

WELDMENT, Front Wheel Arm

$

$

Currently unavailable

24

Snapper 7026676

SCREW, 5/16-18 x 29/32 Shoulder
(Superseded to 7026676YP)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 7026257

WASHER, 17/32 Wave
(Superseded to 7026257MA)

$4.49

$

In Stock, Qty 11

0

26

Snapper 7091247

NUT, 5/16-18 Hex Flange Center Lock

$

$

Not available

27

Snapper 7026813

SHIELD, Trail

$

$

Currently unavailable
