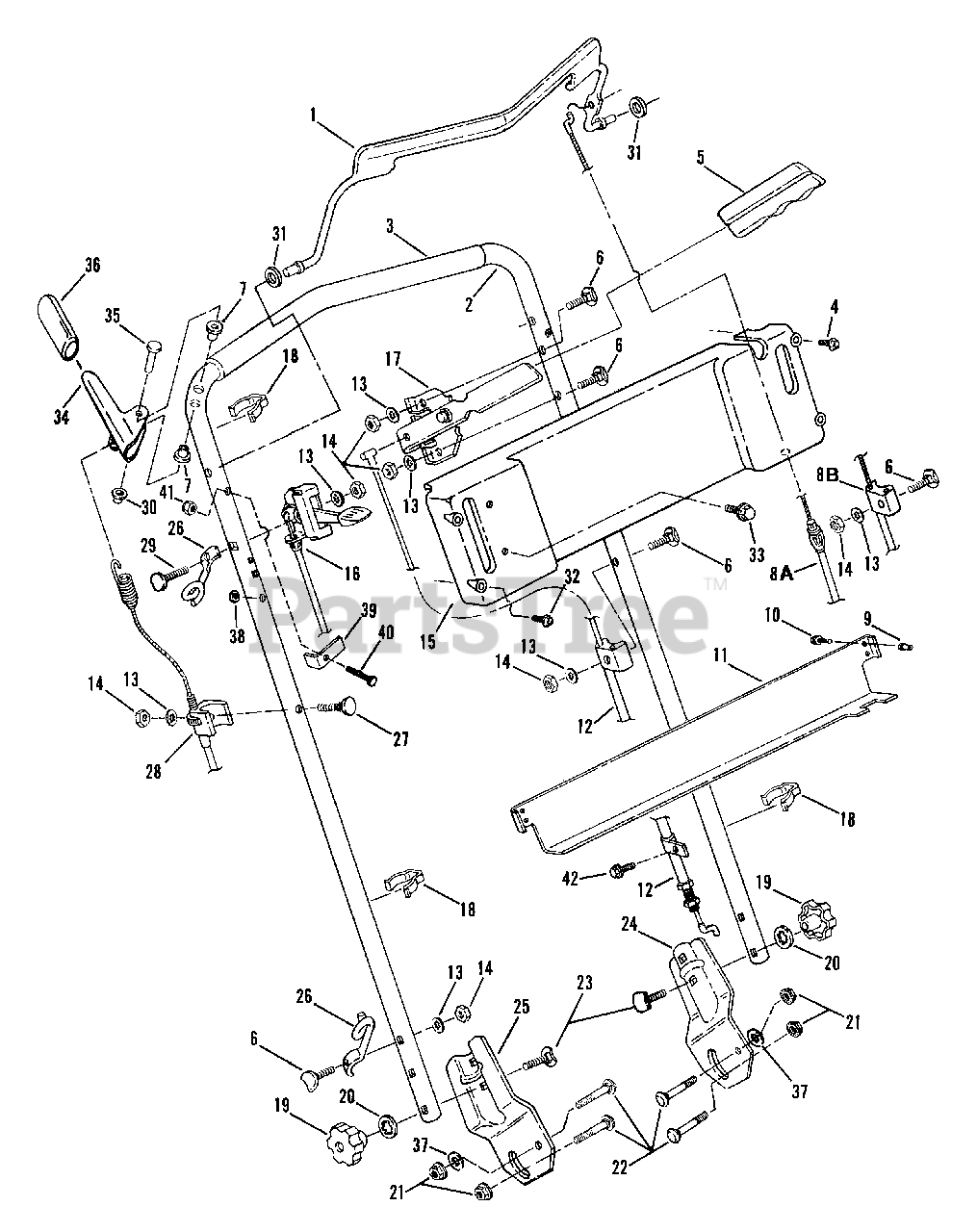

EXP 21500KWV (80587) - Snapper 21" Walk-Behind Mower, 5hp Handles & Controls Parts Diagram

21" Walk-Behind Mower, 5hp

Handles & Controls Parts Diagram

  • Title

1

Snapper 7026539

CONTROL, Blade
(Superseded to 7026539YP)

$61.99

$

Usually ships in 2-12 days

0

2

Snapper 7033717

HANDLE, Upper

Note: Was 33806 (Push Models)

$

$

Not available

Snapper 7033717

HANDLE, Upper

Note: (Self-Propelled Models)

$

$

Not available

3

Snapper 7026216

GRIP, Upper Handle (Foam)
(Superseded to 7026216SM)

$26.99

$

Usually ships in 2-12 days

0

4

Snapper 7091266

SCREW, #10-24 x 2" Self-Tapping
(Superseded to 7091266SM)

$3.99

$

In Stock, only 3 left!

0

5

Snapper 7026420

GRIP, Speed Selector
(Superseded to 7105356YP)

Note: (Self-Propelled Models)

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 7016242

BOLT, 1/4-20 x 1-1/2" Curved Head Carriage

Note: (4 each required for Self-Propelled Models) (2 each required for Push Models)

$

$

Currently unavailable

7

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

Note: (Self-Propelled Models)

$3.99

$

In Stock, Qty 20+

0

8A

Snapper 7026200

CABLE, Blade Control
(Superseded to 7026200YP)

Note: (Self-Propelled Models) (Briggs & Stratton Engine)

$16.99

$

Usually ships in 2-12 days

0

8A

Snapper 7027938

CABLE, Blade Control
(Superseded to 7027938YP)

Note: (Self-Propelled Models) (Kawasaki Engine)

$19.99

$

In Stock, only 1 left!

0

8B

Snapper 7026692

CABLE, Blade Control
(Superseded to 7026692YP)

Note: (Push Models)

$

$

Not available

9

Snapper 7091182

INSERT, Nylon
(Superseded to 7091182SM)

Note: (Self-Propelled Models)

$3.49

$

In Stock, only 4 left!

0

10

Snapper 7091195

SCREW, #10-16 x 3/4" Self-Tapping
(Superseded to 7091195SM)

Note: (Self-Propelled Models)

$4.49

$

In Stock, only 1 left!

0

11

Snapper 7033928

BRACE, Control Panel

Note: (Self-Propelled Models)

$

$

Not available

12

Snapper 7026201

CABLE, Speed Selector
(Superseded to 7026201YP)

Note: (Self-Propelled Models)

$39.99

$

Usually ships in 2-12 days

0

13

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023 (6 each required for Self-Propelled Models) (3 each required for Push Models)

$4.49

$

In Stock, Qty 7

0

14

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 91100 (6 each required for Self-Propelled Models) (3 each required for Push Models)

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7061340

PANEL, Console
(Superseded to 7061340YP)

Note: Was 53200 (Includes Decals P/N's 26540, 26542, 26543 & 24984 as shown on "Accessories, Adapter Kit and Ninja Blade Kit" illustrations & parts list) (Self-Propelled Models)

$113.99

$

Usually ships in 2-12 days

0

Snapper 7061340

PANEL, Console
(Superseded to 7061340YP)

Note: Was 53287 (Electric Start Briggs)

$113.99

$

Usually ships in 2-12 days

0

Snapper 7061340

PANEL, Console
(Superseded to 7061340YP)

Note: Was 53288 (Kawasaki Models)

$113.99

$

Usually ships in 2-12 days

0

16

Snapper 7025039

CONTROL, Throttle
(Superseded to 7025039YP)

Note: (Briggs & Stratton Engine)

$30.99

$

Usually ships in 2-12 days

0

Snapper 7027409

CONTROL, Throttle
(Superseded to 7027409YP)

Note: (Kawasaki Engine)

$21.99

$

Usually ships in 2-12 days

0

Snapper 7022548

CONTROL, Throttle
(Superseded to 7022548YP)

Note: (Briggs & Stratton Quantum Engine)

$93.99

$

Usually ships in 2-12 days

0

17

Snapper 7053661

ASSEMBLY, Speed Selector Quadrant

Note: Was 53202 (Self-Propelled Models)

$

$

Not available

18

Snapper 7023813

CLIP, Cable
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7023735

KNOB, 5/16-18 Internal Thread
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

21

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

22

Snapper 7091928

BOLT, 5/16-18 x 1-1/4" Carriage
(Superseded to 703446)

Note: Was 90978

$4.49

$

In Stock, Qty 5

0

23

Snapper 7091740

BOLT, 5/16-18 x 2" Curved Head Short Neck Carriage
(Superseded to 7091740SM)

Note: Was 91189

$3.49

$

In Stock, Qty 12

0

24

Snapper 7033647

BRACKET, Handle (Left Hand)
(Superseded to 7033647YP)

$37.99

$

Usually ships in 2-12 days

0

25

Snapper 7033646

BRACKET, Handle (Right Hand)
(Superseded to 7033646YP)

$50.99

$

Usually ships in 2-12 days

0

26

Snapper 7022779

GUIDE, Rope
(Superseded to 7022779YP)

$7.49

$

Usually ships in 2-12 days

0

27

Snapper 7090965

BOLT, 1/4-20 x 1-7/8" Curved Head Carriage
(Superseded to 7090965YP)

Note: Was 91225

$15.99

$

Usually ships in 2-12 days

0

28

Snapper 7029926

ASSEMBLY, Clutch Cable
(Superseded to 7029926YP)

Note: Was 26202 (Self-Propelled Models)

$30.99

$

In Stock, only 1 left!

0

29

Snapper 91206

BOLT, 1/4-20 x 1-3/4" Curved Head

$

$

Currently unavailable

30

Snapper 7091020

NUT, 1/4" Push
(Superseded to 7091020YP)

Note: (Self-Propelled Models)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

32

Snapper 7091265

SCREW, #10-24 x 1-1/2" Self-Tapping
(Superseded to 7091265YP)

$3.49

$

Usually ships in 2-12 days

0

33

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

34

Snapper 7033910

LEVER, Wheel Drive

Note: (Self-Propelled Models)

$

$

Not available

35

Snapper 7023792

PIN, 1/4 x 1-1/2" Clevis
(Superseded to 704031)

Note: (Self-Propelled Models)

$3.99

$

In Stock, Qty 20+

0

36

Snapper 7014307

GRIP, Wheel Drive Lever
(Superseded to 7014307YP)

Note: (Self-Propelled Models)

$4.49

$

In Stock, Qty 20+

0

37

Snapper 7091130

WASHER, 5/16 Flat
(Superseded to 7091130SM)

$3.99

$

In Stock, only 3 left!

0

38

Snapper 7091267

SCREW, #10-24 x 1-1/2" Self-Tapping
(Superseded to 7091267SM)

$3.99

$

In Stock, Qty 6

0

39

Snapper 7033949

BRACKET, Bail Stop
(Superseded to 7033949YP)

Note: (Push Models)

$43.99

$

Usually ships in 2-12 days

0

40

Snapper 7090532

SCREW, #10-32 x 1-3/8" Hex Head Machine
(Superseded to 704316)

Note: (Push Models)

$4.99

$

In Stock, only 2 left!

0

41

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

Note: (Push Models)

$3.49

$

Usually ships in 2-12 days

0

42

Snapper 7091819

SCREW, 1/4-24 x 5/8" Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

Snapper 7026540

Decal, Six Speed, 21R
(Superseded to 7026540YP)

$7.99

$

Usually ships in 2-12 days

0

Snapper 7026542

Decal, Ground Speed, 21R
(Superseded to 7026542YP)

$26.99

$

Usually ships in 2-12 days

0

Snapper 7026543

Decal, Engine Speed, 21R

$

$

Not available

Snapper 7024984

Logo, Snapper Cutaway 8"

$

$

Not available
