EXP 21500 (80450) - Snapper 21" Walk-Behind Mower, 5hp Front & Rear Wheels Parts Diagram

21" Walk-Behind Mower, 5hp

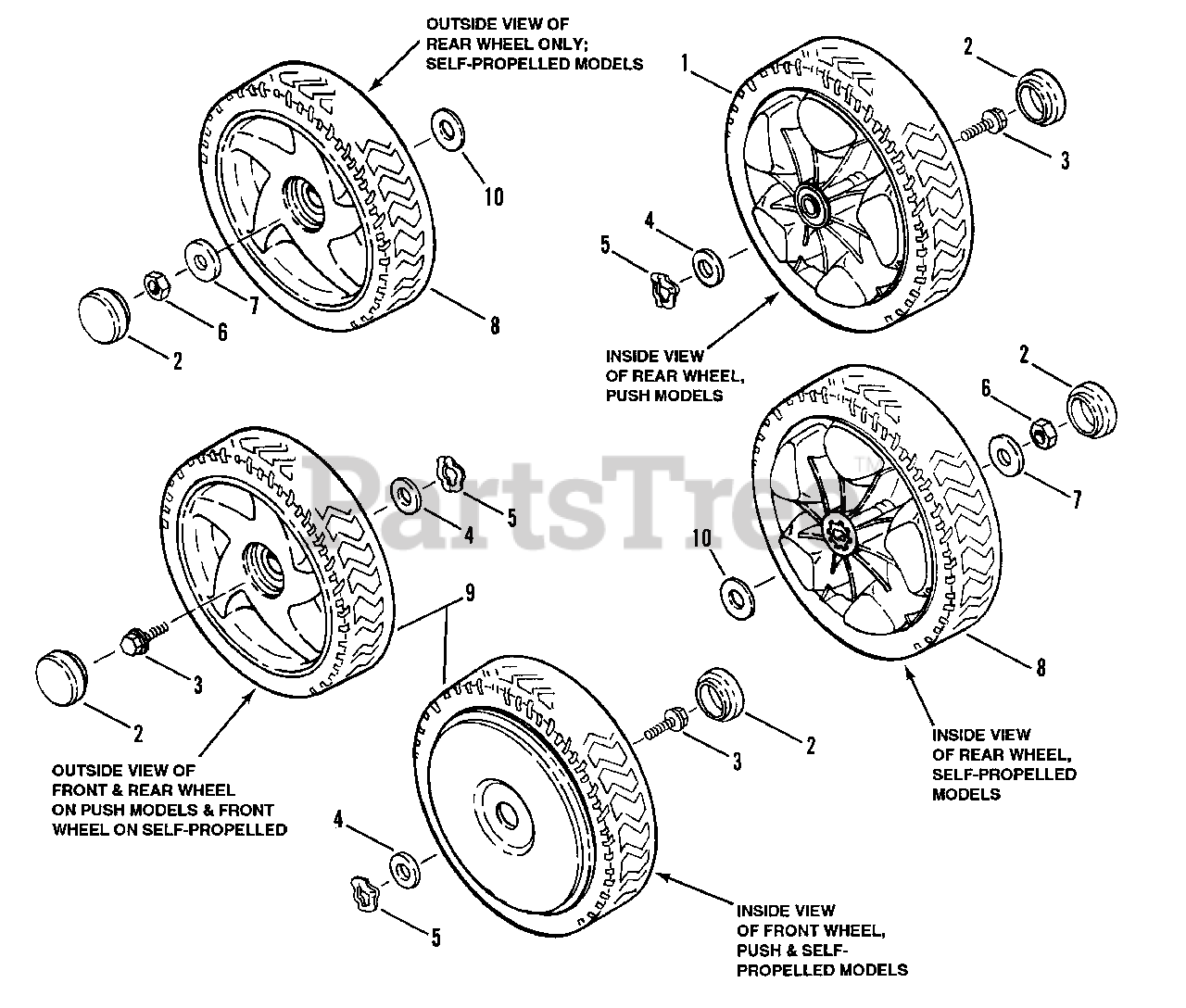

Front & Rear Wheels Parts Diagram

  • Title

1

Snapper 7053198

ASSEMBLY Wheel, 8.0 x 2.0 Plastic (Rear)
(Superseded to 7053198YP)

Note: Was 24552 (Push Models)

$34.99

$

In Stock, only 1 left!

0

2

Snapper 7024656

CAP, Hub
(Superseded to 7024656YP)

$2.99

$

Usually ships in 2-12 days

0

3

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Self-Tapping
(Superseded to 703949)

Note: (4 each, Push Models) (2 each, Self-Propelled Models, Front Only)

$3.99

$

In Stock, only 3 left!

0

4

Snapper 7025074

WASHER, 17/32 I.D. Flat
(Superseded to 7025074SM)

Note: (Push & Self-Propelled Models)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7026257

WASHER, 17/32 Wave
(Superseded to 7026257MA)

Note: (Push & Self-Propelled Models)

$4.49

$

In Stock, Qty 10

0

6

Snapper 7090377

NUT, 7/16-20 Hex Center Lock
(Superseded to 7090377SM)

Note: (Self-Propelled Models, Rear Wheels Only)

$5.49

$

In Stock, Qty 20+

0

7

Snapper 7031961

WASHER, 7/16 Flat
(Superseded to 703964)

Note: (Self-Propelled Models, Rear Wheels Only)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7024553

ASSEMBLY, Wheel, 8.0 x 2.0 Plastic (Rear)

Note: (Push & Self-Propelled)

$

$

Not available

9

Snapper 7053198

ASSEMBLY, Wheel, 8.0 x 2.0 Plastic (Front)
(Superseded to 7053198YP)

Note: (Push & Self-Propelled)

$34.99

$

In Stock, only 1 left!

0

10

Snapper 7091220

WASHER, 9/16 x 1-1/16" O.D. Thrust

$

$

Currently unavailable
