EXP 21500 (80450) - Snapper 21" Walk-Behind Mower, 5hp Drive System Components Parts Diagram

21" Walk-Behind Mower, 5hp

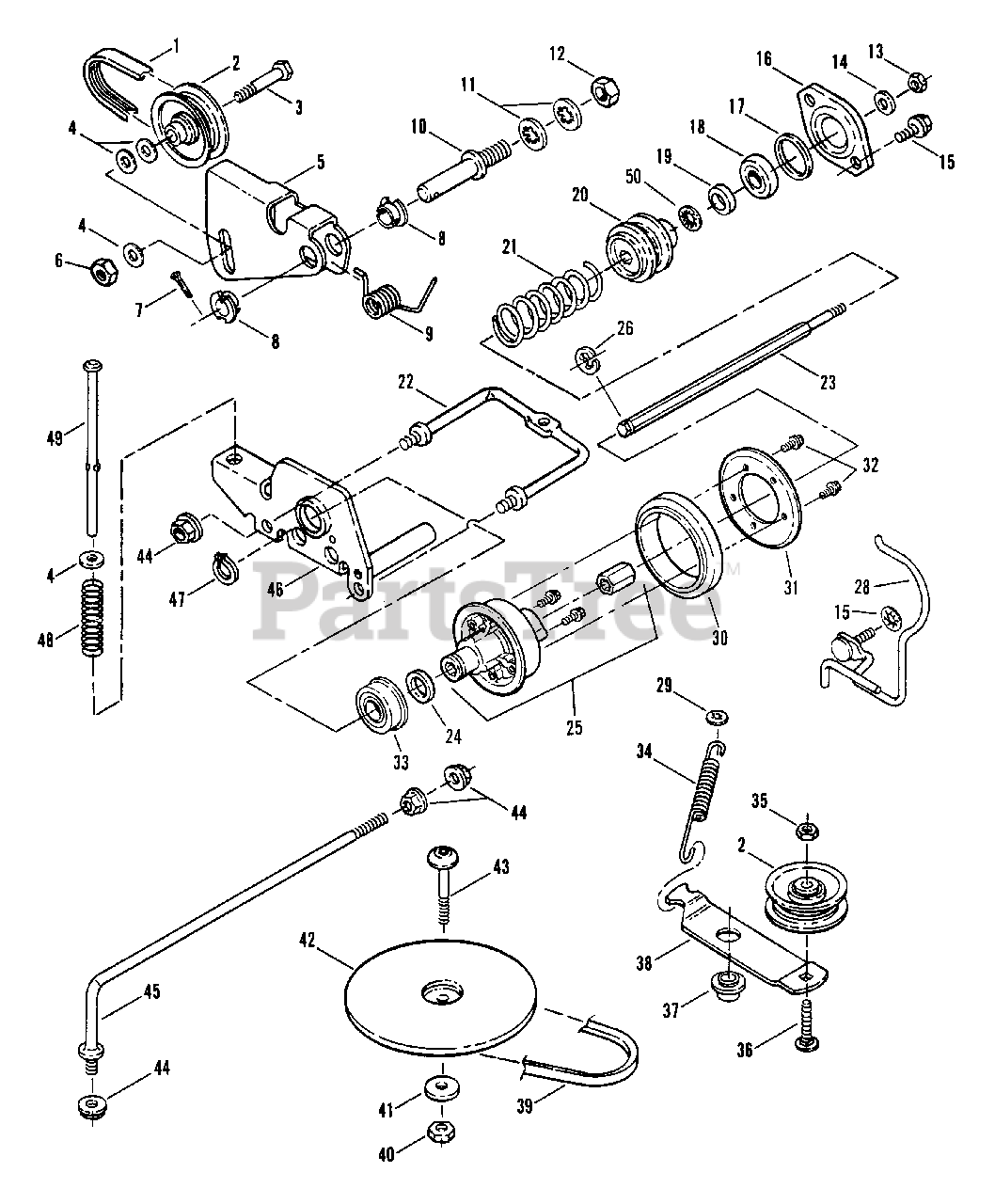

Drive System Components Parts Diagram

  • Title

1

Snapper 7024934

BELT, Poly-V
(Superseded to 7024934YP)

$26.99

$

Usually ships in 2-12 days

0

2

Snapper 7012124

PULLEY, Idler
(Superseded to 7012124YP)

$18.99

$

In Stock, Qty 9

0

3

Snapper 7090552

SCREW, 1/4-28 x 1-3/8" Hex Head Cap
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7033681

ARM, Idler
(Superseded to 7033681YP)

$33.99

$

Usually ships in 2-12 days

0

6

Snapper 7090303

NUT, 1/4-20 Hex Top-Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

7

Snapper 7091597

PIN, 3/32 x 1/2" Cotter
(Superseded to 703312)

Note: Was 90555

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7012117

BUSHING, Idler Arm
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 13

0

9

Snapper 7026416

SPRING, Idler Arm
(Superseded to 7026416YP)

$16.99

$

Usually ships in 2-12 days

0

10

Snapper 7026181

STUD, 3/8 x 2-1/8"
(Superseded to 7026181YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

12

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 2 left!

0

13

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

Note: Was 91215

$4.99

$

In Stock, Qty 14

0

14

Snapper 7012316

WASHER, Flat
(Superseded to 703946)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7091819

SCREW, 1/4-20 x 5/8" Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

16

Snapper 7033699

RETAINER, Bearing
(Superseded to 7033699YP)

$5.49

$

Usually ships in 2-12 days

0

17

Snapper 7011025

O-RING
(Superseded to 704008)

$3.99

$

In Stock, Qty 20+

0

18

Snapper 7028014

BEARING
(Superseded to 7028014YP)

$17.99

$

In Stock, Qty 20+

0

19

Snapper 7026378

SPACER
(Superseded to 7026378YP)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7024521

PULLEY
(Superseded to 7019383YP)

$54.99

$

In Stock, Qty 12

0

21

Snapper 7026124

SPRING, Return
(Superseded to 7026124YP)

$4.99

$

In Stock, only 1 left!

0

22

Snapper 7024617

GUIDE
(Superseded to 7024617YP)

$7.99

$

Usually ships in 2-12 days

0

23

Snapper 7024520

SHAFT, Hex Drive
(Superseded to 7024520YP)

$70.99

$

Usually ships in 2-12 days

0

24

Snapper 7010121

WASHER, Shim
(Superseded to 7010121YP)

$4.49

$

In Stock, Qty 6

0

25

Snapper 7061276

ASSEMBLY, Hub (Includes 11108 Bushing & 90913 Screws)
(Superseded to 7061276YP)

Note: Was 53217

$75.99

$

In Stock, Qty 10

0

26

Snapper 7014341

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

?27

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, Qty 6

0

28

Snapper 7041573

GUIDE, Belt (Front)
(Superseded to 7041573YP)

$30.99

$

Usually ships in 2-12 days

0

29

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7023364

RING, Driven
(Superseded to 704059)

$14.99

$

In Stock, Qty 20+

0

31

Snapper 7031013

PLATE, Pivot
(Superseded to 7031013YP)

$5.99

$

In Stock, Qty 13

0

32

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

33

Snapper 7026693

BEARING
(Superseded to 707608)

$9.49

$

In Stock, Qty 20+

0

34

Snapper 7029025

SPRING, Idler Arm
(Superseded to 7029025YP)

Note: Was 17326

$5.99

$

In Stock, only 4 left!

0

35

Snapper 7090977

NUT, 1/4-20 Hex Jam
(Superseded to 7090977YP)

$2.99

$

In Stock, only 2 left!

0

36

Snapper 7091181

BOLT, 1/4-20 x 1-1/8" Flat Head Carriage

$

$

Currently unavailable

37

Snapper 7026473

SPACER, Idler Arm
(Superseded to 7026473YP)

$17.99

$

Usually ships in 2-12 days

0

38

Snapper 7033932

ARM, Idler
(Superseded to 7033932YP)

$32.99

$

Usually ships in 2-12 days

0

39

Snapper 7012353

BELT, Engine Drive
(Superseded to 7012353YP)

$15.99

$

Usually ships in 2-12 days

0

40

Snapper 7090839

NUT, 7/16-14 Hex Lock
(Superseded to 7090839SM)

$4.99

$

In Stock, Qty 5

0

41

Snapper 7091236

WASHER, Flat

$

$

Currently unavailable

42

Snapper 7052925

ASSEMBLY, Drive Disc

$

$

Not available

43

Snapper 7024529

SCREW, 7/16-14 x 2" Truss Head (Torx)
(Superseded to 7024529YP)

$3.99

$

Usually ships in 2-12 days

0

44

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

45

Snapper 7024996

ROD, Guide
(Superseded to 7024996YP)

$7.49

$

Usually ships in 2-12 days

0

46

Snapper 7053035

ASSEMBLY, Thrust Plate
(Superseded to 7053035YP)

Note: (Includes item 33)

$80.99

$

Usually ships in 2-12 days

0

47

Snapper 7010746

RING, Retaining
(Superseded to 703975)

$3.99

$

In Stock, Qty 20+

0

48

Snapper 7014432

SPRING, Plunger Rod
(Superseded to 7014432YP)

$7.99

$

Usually ships in 2-12 days

0

49

Snapper 7026131

ROD, Plunger
(Superseded to 7026131YP)

$3.99

$

Usually ships in 2-12 days

0

50

Snapper 7013946

RETAINER, 5/16 Bolt
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

?51

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 7

0

Snapper 7011108

BUSHING
(Superseded to 7011108YP)

$3.99

$

Usually ships in 2-12 days

0

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0
