EX800 A (G100) - Honda Generator, Made in Japan (SN: G100-1287874 - G100-9999999) RECOIL STARTER Parts Diagram

Generator, Made in Japan

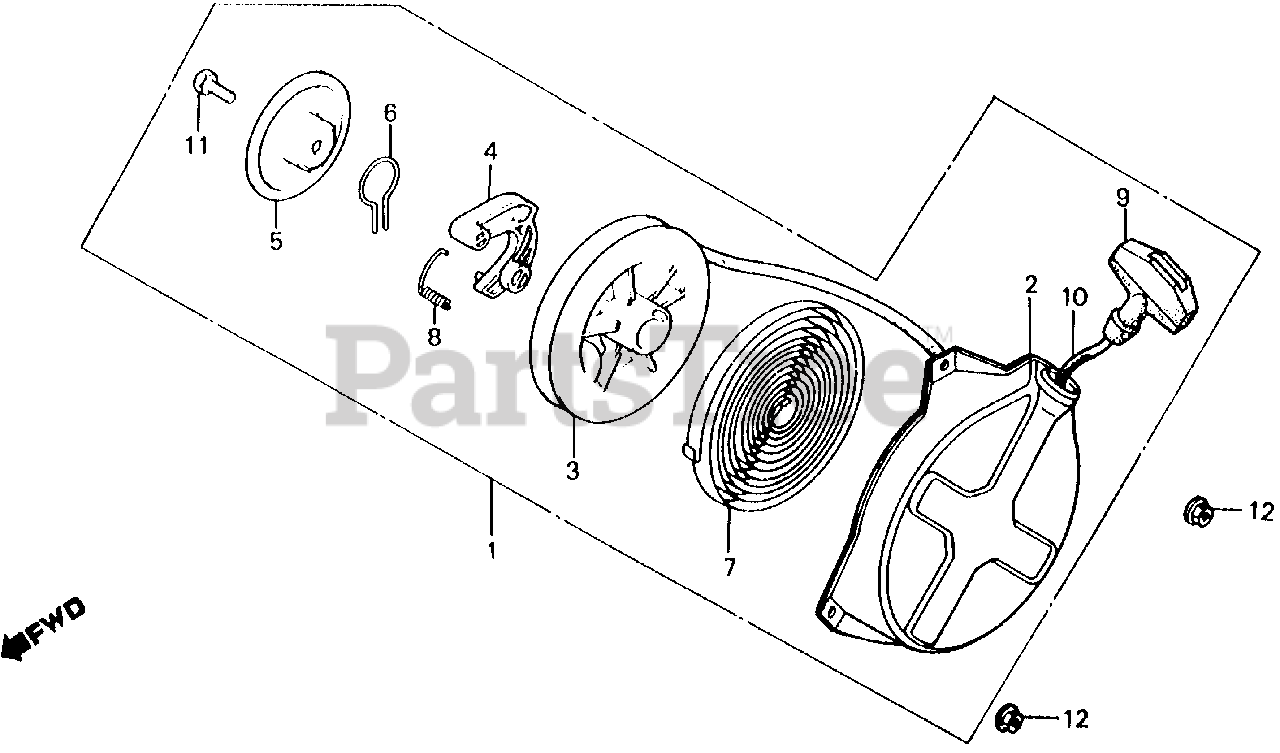

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZA7-003

STARTER ASSY., RECOIL (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 28410-ZA7-003

CASE, RECOIL STARTER

$

$

Currently unavailable

3

Honda 28420-896-701

PULLEY, RECOIL STARTER (NOT AVAILABLE)

$

$

Not available

4

Honda 28422-896-010

RATCHET, STARTER

$7.99

$

In Stock, only 1 left!

0

5

Honda 28431-896-000

PLATE, FRICTION

$6.49

$

Usually ships in 3-6 days

0

6

Honda 28441-896-000

SPRING, FRICTION

$8.49

$

Usually ships in 3-6 days

0

7

Honda 28442-896-700

SPRING, RETURN

$33.99

$

Usually ships in 3-6 days

0

8

Honda 28443-896-000

SPRING, RETURN

$4.99

$

Usually ships in 3-6 days

0

9

Honda 28461-878-810

KNOB, STARTER

$

$

Not available

10

Honda 28462-ZA7-003

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#4X55")
(Superseded to 28462-ZE6-T02)

$5.99

$

In Stock, Qty 10

0

10

Honda 28462-ZE6-T02

SEE PART DETAILS - PRI; ROPE (#4X55")

$5.99

$

In Stock, Qty 10

0

11

Honda 92101-06012-0H

BOLT, HEX. (6X20)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0
