EX800 A (G100) - Honda Generator, Made in Japan (SN: G100-1287874 - G100-9999999) FRONT COVER + REAR COVER Parts Diagram

Generator, Made in Japan

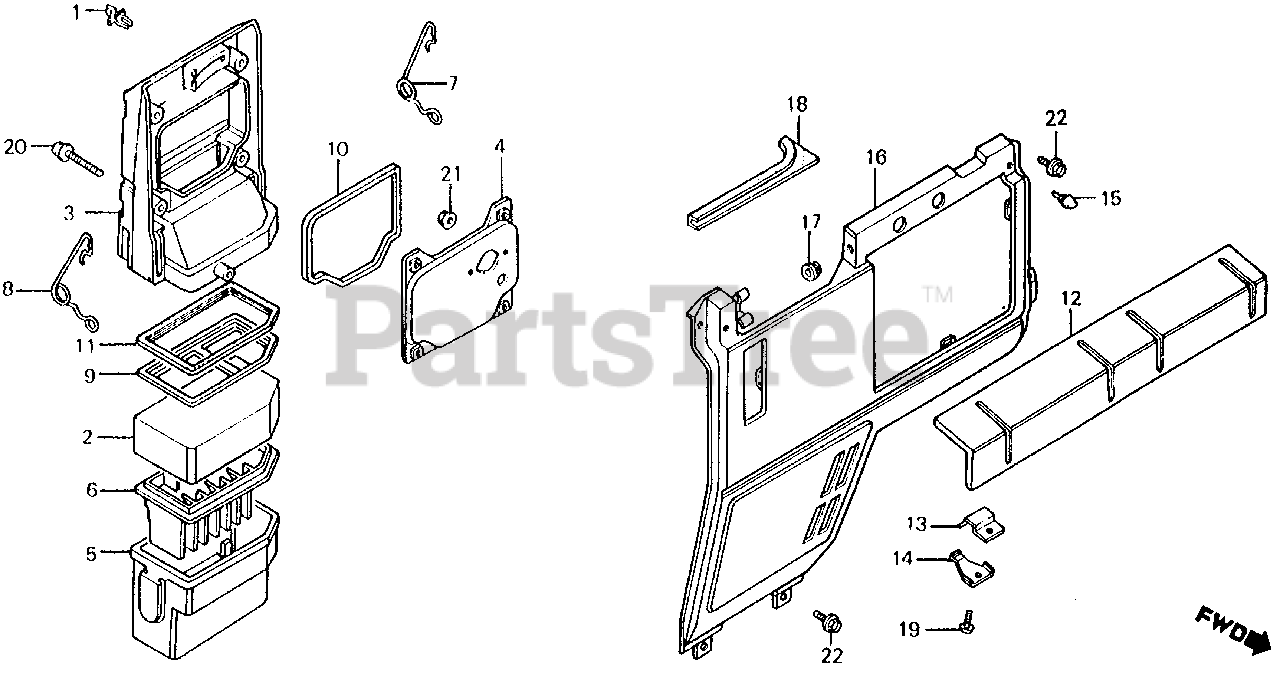

FRONT COVER + REAR COVER Parts Diagram

  • Title

1

Honda 16627-ZA7-000

KNOB, MANUAL CHOKE

$

$

Not available

2

Honda 17211-ZA7-000

ELEMENT, AIR CLEANER

$7.49

$

Usually ships in 3-6 days

0

3

Honda 17221-ZA7-000

CASE, FR. AIR CLEANER

$36.99

$

In Stock, only 1 left!

0

4

Honda 17222-ZA7-000

CASE, RR. AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 17223-ZA7-000

HOUSING, AIR CLEANER (LOWER)

$27.99

$

In Stock, only 1 left!

0

6

Honda 17224-ZA7-000

BED, AIR CLEANER (LOWER)

$13.99

$

Usually ships in 3-6 days

0

7

Honda 17226-ZA7-000

SPRING, R. AIR CLEANER HOUSING (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 17227-ZA7-000

SPRING, L. AIR CLEANER HOUSING (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 17232-ZA7-000

HOLDER, ELEMENT

$11.99

$

In Stock, only 1 left!

0

10

Honda 17235-ZA7-000

RUBBER, AIR CLEANER HOUSING

$13.99

$

In Stock, Qty 7

0

11

Honda 17252-ZA7-000

SEAL, AIR CLEANER

$10.99

$

Usually ships in 3-6 days

0

12

Honda 17550-ZA7-000MA

LID, TOP *NH44MS* (SPECIAL SILVER METALLIC)

$

$

Currently unavailable

12

Honda 17550-ZA7-000XC

LID, TOP *NH31* (MCKINLEY WHITE)

$

$

Currently unavailable

12

Honda 17550-ZA7-000ZM

SEE PART DETAILS - PRI; LID, TOP *R8* (BRIGHT RED)

$

$

Not available

13

Honda 17551-ZA7-000

HINGE B, TOP LID

$7.49

$

Usually ships in 3-6 days

0

14

Honda 17553-ZA7-000

SPRING, TOP LID HINGE

$

$

Not available

15

Honda 17558-ZA7-000

STOPPER, TOP LID

$

$

Not available

16

Honda 63310-ZA7-000H

COVER, FR. *R8* (BRIGHT RED)

$

$

Not available

16

Honda 63310-ZA7-000MA

COVER, FR. *NH44MS* (SPECIAL SILVER METALLIC)

$

$

Not available

16

Honda 63310-ZA7-000XC

COVER, FR. *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 63312-ZA7-000

GROMMET, TOOL

$4.99

$

Usually ships in 3-6 days

0

18

Honda 63315-ZA7-000

RUBBER, GUARD

$

$

Not available

19

Honda 90101-965-000

SCREW, PAN (5X8)

$

$

Not available

20

Honda 93891-05028-07

SCREW-WASHER (5X28)

$1.49

$

In Stock, Qty 5

0

21

Honda 94050-05080

NUT, FLANGE (5MM)

$0.99

$

In Stock, only 4 left!

0

22

Honda 96000-06010-07

SEE PART DETAILS - SUP; BOLT, FLANGE (6X10)
(Superseded to 96001-06010-07)

$2.49

$

In Stock, Qty 5

0

22

Honda 96001-06010-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 5

0
