EX800 A (G100) - Honda Generator, Made in Japan (SN: G100-1287874 - G100-9999999) CRANKCASE COVER + IGNITION COIL Parts Diagram

Generator, Made in Japan

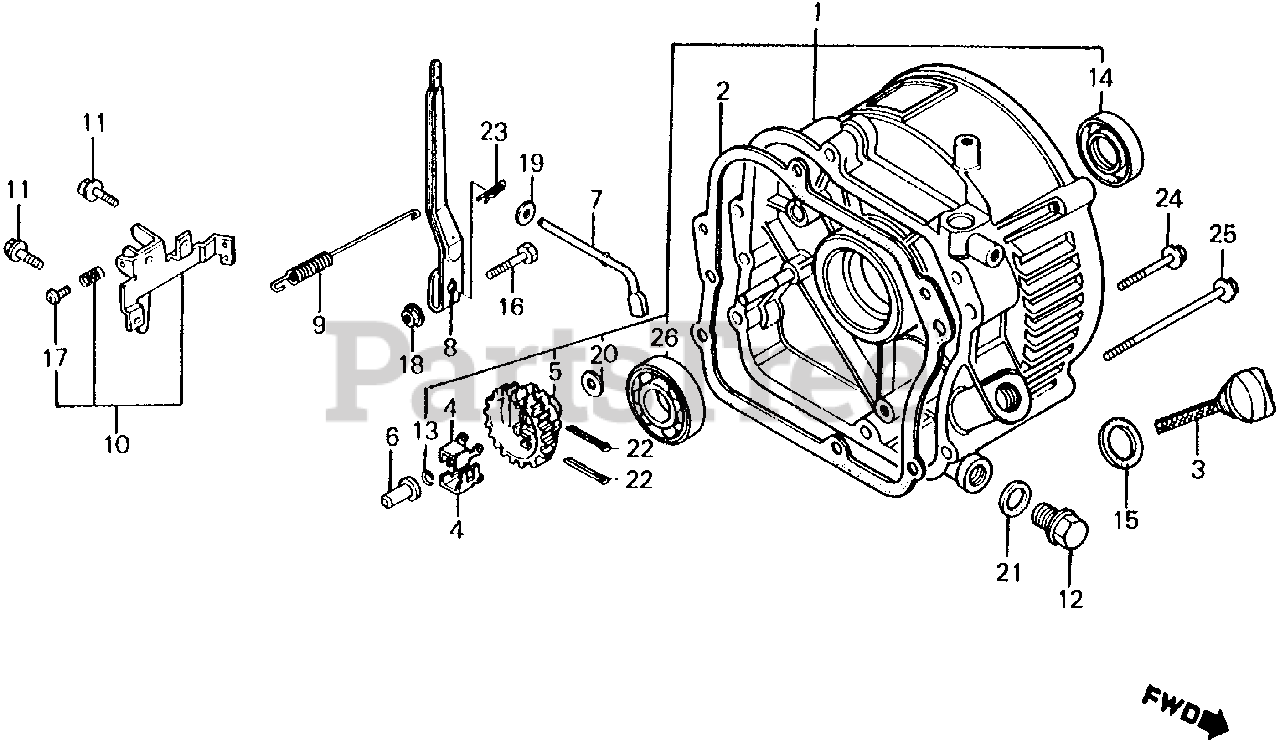

CRANKCASE COVER + IGNITION COIL Parts Diagram

  • Title

1

Honda 11300-ZA7-000

COVER ASSY., CRANKCASE

$

$

Not available

2

Honda 11381-896-306

GASKET, CASE COVER

$

$

Not available

3

Honda 15620-ZA7-000

CAP, OIL FILLER

$

$

Currently unavailable

4

Honda 16511-896-000

WEIGHT, GOVERNOR

$2.99

$

In Stock, only 3 left!

0

5

Honda 16512-ZG0-000

HOLDER, GOVERNOR WEIGHT

Note: Use from Engine SN 1470590.

$14.99

$

Usually ships in 3-6 days

0

5

Honda 16512-896-300

HOLDER, GOVERNOR WEIGHT (NOT AVAILABLE)

Note: Use up to Engine SN 1470589.

$

$

Not available

6

Honda 16531-ZG0-000

SLIDER, GOVERNOR

Note: Use from Engine SN 1464943.

$4.49

$

Usually ships in 3-6 days

0

6

Honda 16531-896-000

SLIDER, GOVERNOR
(Superseded to 16531-ZG0-000)

Note: Use up to Engine SN 1464942.

$4.49

$

Usually ships in 3-6 days

0

7

Honda 16541-896-000

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

$9.49

$

Usually ships in 3-6 days

0

8

Honda 16551-896-000

ARM, GOVERNOR

$

$

Currently unavailable

9

Honda 16561-ZA7-000

SPRING, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 36220-ZA7-631

ADJUSTER ASSY., THROTTLE

$

$

Not available

11

Honda 90002-892-000

BOLT, FLANGE (5X10)

$1.99

$

In Stock, Qty 5

0

12

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$4.99

$

In Stock, only 1 left!

0

13

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 7

0

13

Honda 90602-896-000

SEE PART DETAILS - SUP; CLIP, GOVERNOR HOLDER

$1.99

$

Usually ships in 3-6 days

0

14

Honda 91202-892-004

OIL SEAL (17X30X6) (NOK)

$12.99

$

Usually ships in 3-6 days

0

15

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

16

Honda 92101-06020-0A

BOLT, HEX. (6X20)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 93500-04014-0H

SCREW, PAN (4X14)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

20

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0

21

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, only 3 left!

0

22

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

Note: Use from Engine SN 1470590.

$2.49

$

Usually ships in 3-6 days

0

22

Honda 94201-25280

PIN, COTTER (2.5X28)

Note: Use up to Engine SN 1470589.

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

24

Honda 95701-06028-08

BOLT, FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0

25

Honda 95701-06080-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X80)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 95900-06080-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X80)
(Superseded to 95701-06080-08)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0
