EX650 A (GE100) - Honda Generator, Made in Japan (SN: GE100-1000001 - GE100-9999999) EX650 ROTOR + STATOR Parts Diagram

Generator, Made in Japan

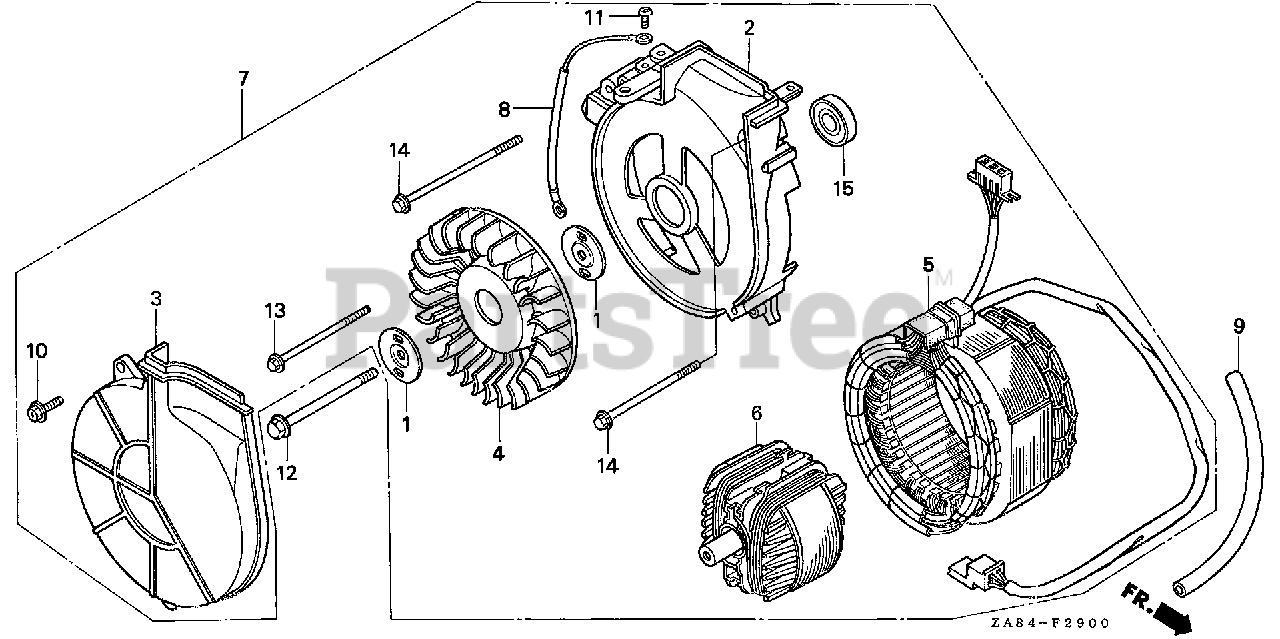

EX650 ROTOR + STATOR Parts Diagram

  • Title
1

Honda 19512-ZA8-000

PLATE, FAN SETTING

$7.49

$

Usually ships in 3-6 days

0

2

Honda 04102-ZA8-000

SEE PART DETAILS - PRI; ROTOR SET

Note: Use up to Frame SN 1109872.

$

$

Not available

2

Honda 31108-ZA8-003

SEE PART DETAILS - SUP; HOUSING, RR.
(Superseded to 04102-ZA8-000)

Note: Use up to Frame SN 1109872.

$

$

Not available

2

Honda 31108-ZA8-013

HOUSING, RR.

Note: Use from Frame SN 1109873.

$

$

Not available

3

Honda 31109-ZA8-003

COVER, GENERATOR FAN

$37.99

$

Usually ships in 3-6 days

0

4

Honda 31112-ZA8-801

FAN, COOLING

$23.99

$

Usually ships in 3-6 days

0

5

Honda 31120-ZA8-632

STATOR ASSY.

Note: Use up to Frame SN 1291566.

$

$

Not available

5

Honda 31120-ZA8-633

STATOR ASSY.

Note: Use from Frame SN 1291567.

$

$

Not available

6

Honda 31130-ZA8-003

ROTOR

Note: Use up to Frame SN 1109872.

$

$

Not available

6

Honda 31130-ZA8-023

ROTOR

Note: Use from Frame SN 1109873.

$528.99

$

Usually ships in 3-6 days

0

7

Honda 31200-ZA8-631

GENERATOR ASSY.

Note: Use up to Frame SN 1136809.

$

$

Not available

7

Honda 31200-ZA8-632

GENERATOR ASSY.

Note: Use from Frame SN 1136810 to 1291566.

$

$

Not available

7

Honda 31200-ZA8-633

GENERATOR ASSY.

Note: Use from Frame SN 1291567.

$

$

Currently unavailable

8

Honda 32610-ZA8-000

WIRE, GROUND

$

$

Not available

9

Honda 36163-ZA8-000

TUBE, PROTECTOR (9X100)

$

$

Not available

10

Honda 90031-875-003

SCREW, TAPPING (5X12)

$2.99

$

In Stock, only 4 left!

0

11

Honda 90102-899-003

SCREW, PAN (5X12)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90155-ZA8-000

SEE PART DETAILS - SUP; BOLT, FLANGE (8X92)
(Superseded to 90155-ZA8-010)

$5.99

$

Usually ships in 3-6 days

0

12

Honda 90155-ZA8-010

SEE PART DETAILS - PRI; BOLT, FLANGE (8X92)

$5.99

$

Usually ships in 3-6 days

0

13

Honda 90157-ZA8-000

BOLT, FLANGE (6X75)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90158-ZA8-000

BOLT, FLANGE (6X95)

$4.99

$

Usually ships in 3-6 days

0

15

Honda 91051-ZA8-003

BEARING ASSY. (6002)

Note: Use from Frame SN 1109873.

$21.99

$

Usually ships in 3-6 days

0

15

Honda 96150-60020-10

BEARING, RADIAL BALL (6002)

Note: Use up to Frame SN 1109872.

$16.99

$

In Stock, Qty 20+

0
